Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/19/2024
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/19/2024 | 16:58:43 | -79.98, 67.05 | 117.85 | 05/19/2024 | 16:58:39 | -79.98, 67.04 | 117.85 | 0.22 | 4 |
| 2 | 05/21/2024 | 21:25:03 | -79.95, 0.77 | 118.34 | 05/21/2024 | 21:24:51 | -79.95, 0.66 | 118.32 | 2.37 | 12 |
| 3 | 05/24/2024 | 01:00:44 | 80.09, 125.41 | 61.54 | 05/24/2024 | 01:01:57 | 80.09, 125.28 | 61.52 | 2.74 | 73 |
| 4 | 05/24/2024 | 01:51:25 | -79.98, -66.15 | 118.68 | 05/24/2024 | 01:51:03 | -79.97, -66.02 | 118.70 | 2.64 | 22 |
| 5 | 05/26/2024 | 05:27:06 | 80.12, 58.42 | 61.23 | 05/26/2024 | 05:28:08 | 80.11, 58.56 | 61.18 | 2.80 | 62 |
| 6 | 05/26/2024 | 06:17:45 | -79.96,-132.53 | 119.10 | 05/26/2024 | 06:17:13 | -79.95,-132.43 | 119.10 | 2.04 | 32 |
| 7 | 05/28/2024 | 09:53:26 | 80.11, -8.02 | 60.86 | 05/28/2024 | 09:54:17 | 80.10, -7.89 | 60.81 | 2.69 | 51 |
| 8 | 05/28/2024 | 10:44:05 | -79.94, 161.02 | 119.47 | 05/28/2024 | 10:43:22 | -79.94, 161.14 | 119.47 | 2.29 | 43 |
| 9 | 05/30/2024 | 14:19:43 | 80.02, -73.61 | 60.36 | 05/30/2024 | 14:20:23 | 80.02, -73.77 | 60.36 | 3.03 | 40 |
| 10 | 05/30/2024 | 15:10:22 | -79.84, 95.39 | 119.97 | 05/30/2024 | 15:09:28 | -79.86, 95.25 | 119.92 | 3.11 | 54 |
| 11 | 06/01/2024 | 18:46:03 | 80.01,-140.17 | 60.07 | 06/01/2024 | 18:46:30 | 80.02,-140.24 | 60.07 | 1.41 | 27 |

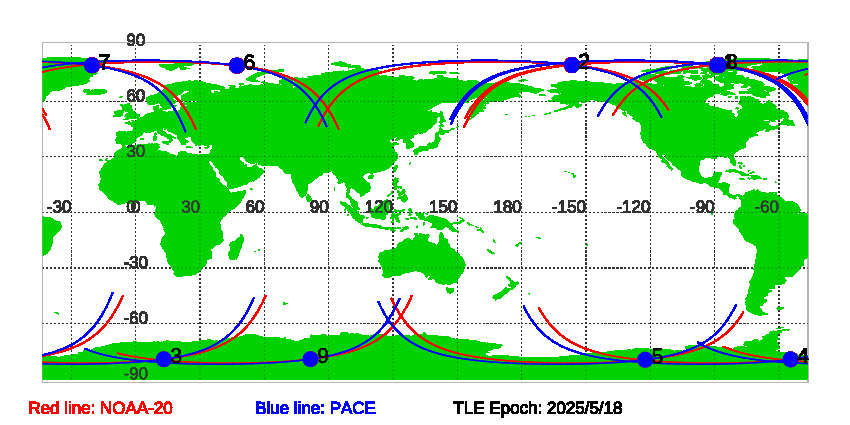

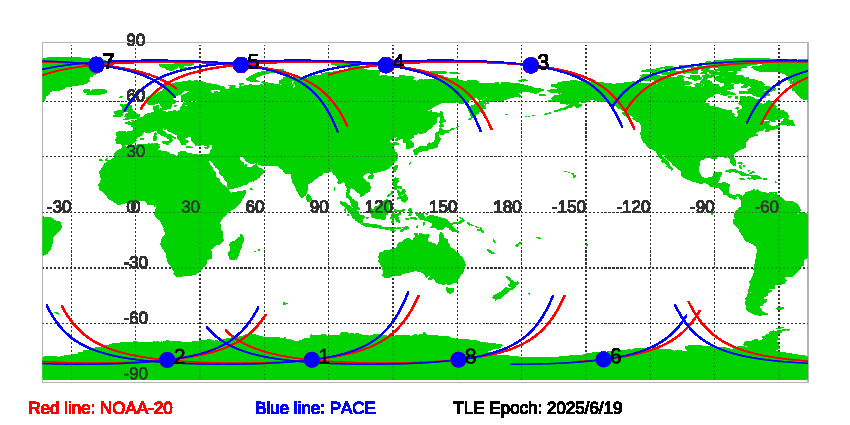

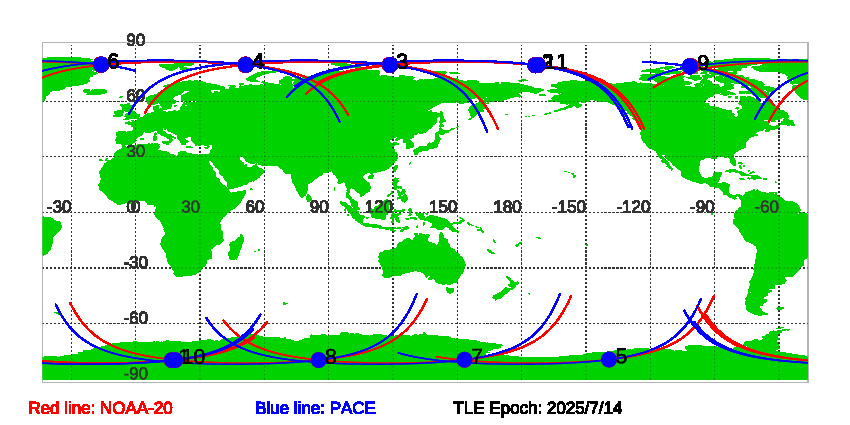

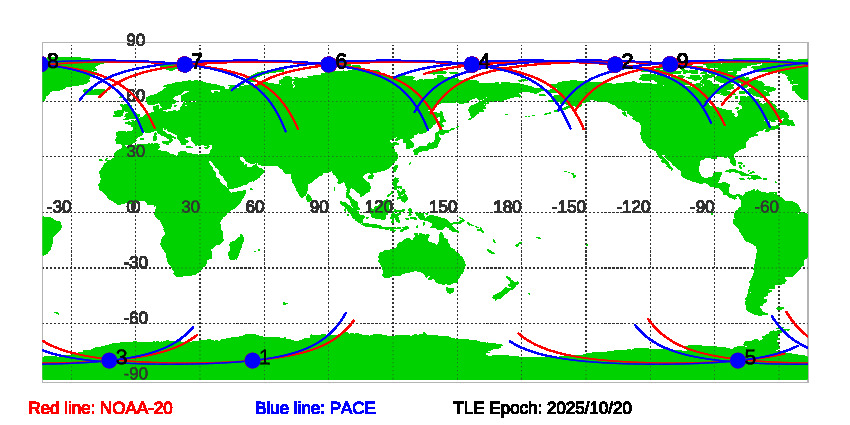

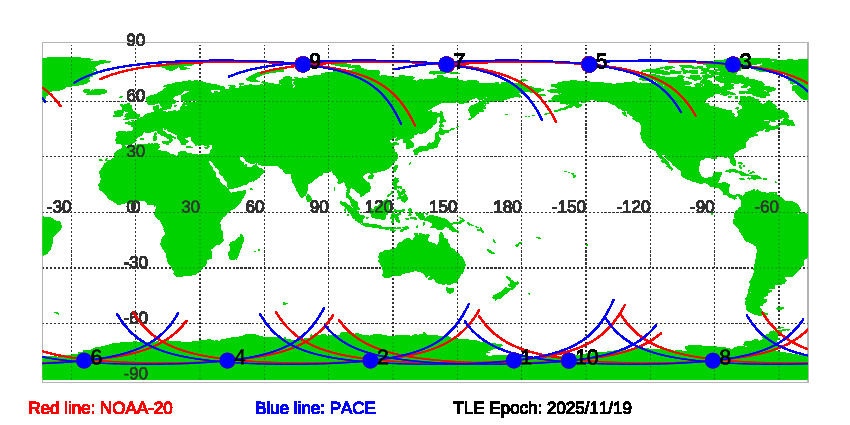

Figure of NOAA-20 and PACE satellite orbits during SNOs since TLE Epoch: 5/19/2024
Download SNOs between NOAA-20 and PACE since TLE EPOCH: 05/19/2024 in txt file.
Historial Predications of SNOs between NOAA-20 and PACE
