Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between GOES-16 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/20/2024
Index Date Time (GOES-16) GOES-16 Lat,Lon TERRA Lat,Lon Distance(km) Time Diff (sec)
1 12/21/2024 02:22:55 0.02, -75.17 0.60, -72.39 315.96 80
2 12/21/2024 14:45:14 -0.02, -75.21 0.40, -77.17 222.64 80
3 12/23/2024 14:24:10 -0.02, -75.23 -0.55, -72.73 283.45 80
4 12/24/2024 02:46:38 0.01, -75.19 -0.50, -77.54 267.64 80
5 12/26/2024 02:25:34 0.02, -75.22 0.48, -73.12 239.15 80
6 12/26/2024 14:45:11 -0.02, -75.26 0.55, -77.89 299.13 80
7 12/28/2024 14:29:26 -0.01, -75.28 -0.42, -73.45 208.38 80
8 12/29/2024 02:49:14 0.01, -75.25 -0.62, -78.27 342.37 80
9 12/31/2024 02:28:08 -0.00, -75.28 0.31, -73.82 165.52 80
10 12/31/2024 14:47:46 0.00, -75.32 0.70, -78.60 372.58 80
11 01/02/2025 14:32:00 0.00, -75.35 -0.27, -74.16 136.14 80

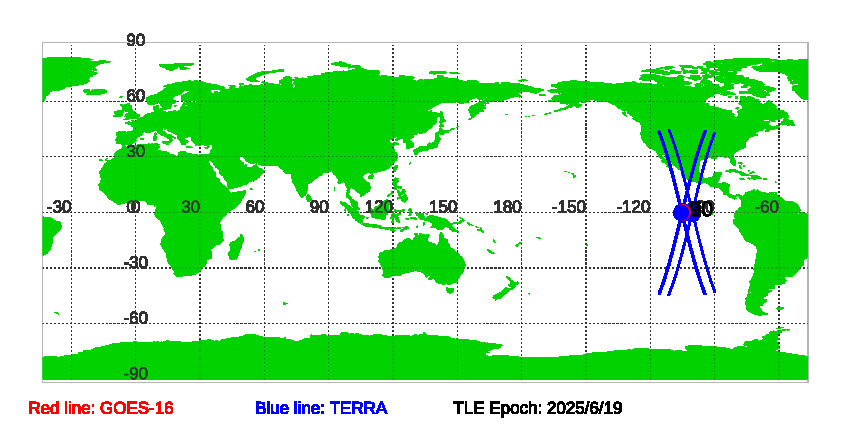

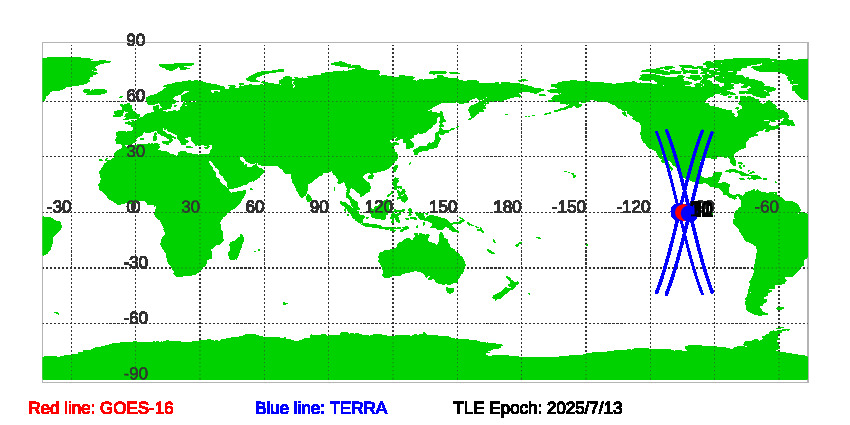

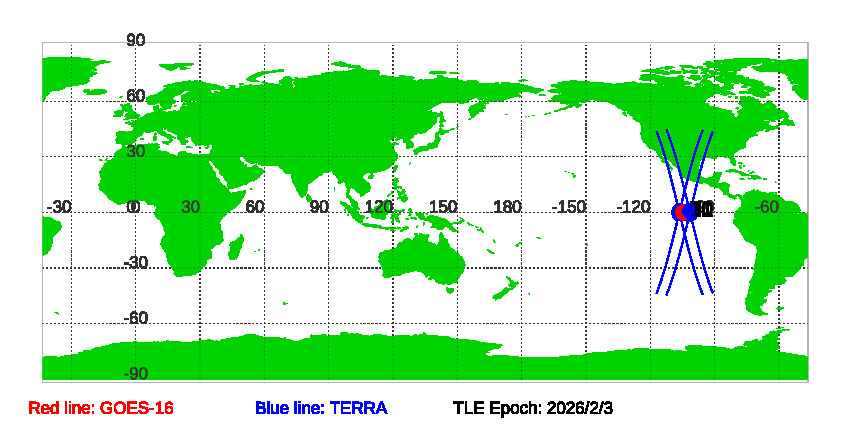

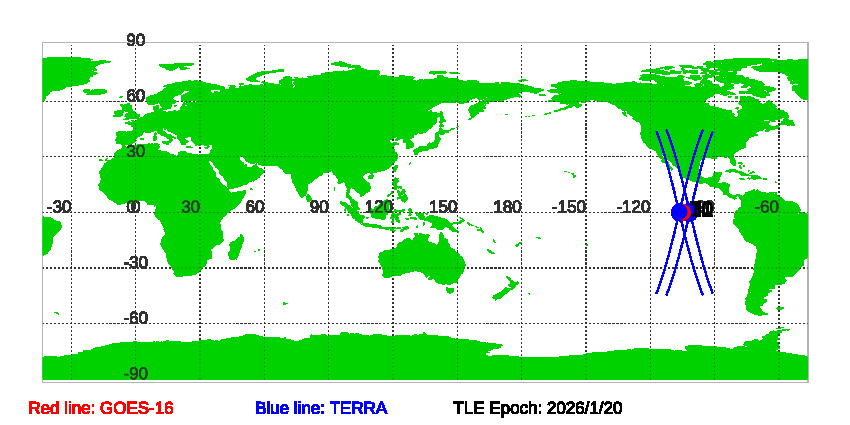

Figure of GOES-16 and TERRA satellite orbits during SNOs since TLE Epoch: 12/20/2024

Download SNOs between GOES-16 and TERRA since TLE EPOCH: 12/20/2024 in txt file.

Historical Predications of SNOs between GOES-16 and TERRA
