Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/14/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/14/2025 | 09:36:23 | -78.16,-145.42 | 123.50 | 07/14/2025 | 09:37:31 | -78.07,-143.04 | 123.61 | 55.37 | 68 |
| 2 | 07/14/2025 | 10:27:00 | 77.85, 23.61 | 56.18 | 07/14/2025 | 10:26:55 | 77.86, 23.70 | 56.19 | 2.39 | 5 |
| 3 | 07/16/2025 | 20:48:27 | -77.87, 48.18 | 123.40 | 07/16/2025 | 20:48:37 | -77.87, 48.28 | 123.41 | 2.42 | 10 |
| 4 | 07/16/2025 | 21:39:10 | 77.79,-144.09 | 56.52 | 07/16/2025 | 21:37:57 | 77.84,-144.20 | 56.57 | 5.66 | 73 |
| 5 | 07/19/2025 | 07:09:54 | 77.88, 72.84 | 57.04 | 07/19/2025 | 07:10:19 | 77.88, 72.84 | 57.04 | 0.04 | 25 |
| 6 | 07/19/2025 | 08:00:38 | -77.86,-119.74 | 122.98 | 07/19/2025 | 07:59:39 | -77.84,-119.65 | 123.00 | 3.02 | 59 |
| 7 | 07/21/2025 | 17:31:21 | -77.91, 97.38 | 122.47 | 07/21/2025 | 17:32:01 | -77.88, 97.36 | 122.51 | 3.81 | 40 |
| 8 | 07/21/2025 | 18:22:05 | 77.87, -95.09 | 57.50 | 07/21/2025 | 18:21:21 | 77.84, -95.14 | 57.47 | 3.71 | 44 |
| 9 | 07/24/2025 | 03:52:48 | 77.92, 122.02 | 58.04 | 07/24/2025 | 03:53:42 | 77.91, 122.01 | 58.02 | 1.87 | 54 |
| 10 | 07/24/2025 | 04:43:31 | -77.87, -70.36 | 122.01 | 07/24/2025 | 04:43:02 | -77.88, -70.46 | 122.01 | 2.44 | 29 |
| 11 | 07/26/2025 | 14:14:14 | -77.92, 146.73 | 121.43 | 07/26/2025 | 14:15:23 | -77.94, 146.66 | 121.42 | 2.15 | 69 |
| 12 | 07/26/2025 | 15:04:58 | 77.88, -45.73 | 58.53 | 07/26/2025 | 15:04:43 | 77.89, -45.86 | 58.54 | 3.31 | 15 |

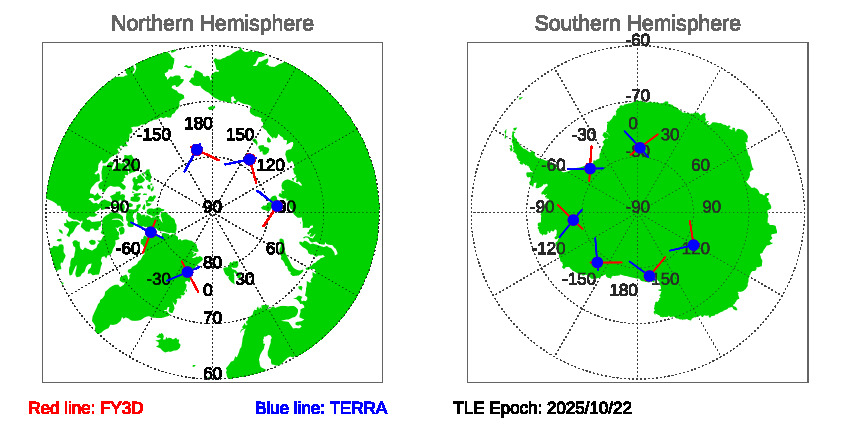

Figure of FY3D and TERRA satellite orbits during SNOs since TLE Epoch: 7/14/2025
Download SNOs between FY3D and TERRA since TLE EPOCH: 07/14/2025 in txt file.
Historial Predications of SNOs between FY3D and TERRA
