Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between FY3D and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/30/2025
| Index | Date (FY3D) | Time (FY3D) | Lat,Lon (FY3D) | SZA (FY3D ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/30/2025 | 23:22:57 | 79.47, 178.50 | 56.55 | 06/30/2025 | 23:22:59 | 79.47, 178.45 | 56.55 | 1.07 | 2 |
| 2 | 07/03/2025 | 08:53:41 | 79.52, 35.40 | 56.80 | 07/03/2025 | 08:53:58 | 79.52, 35.45 | 56.79 | 1.10 | 17 |
| 3 | 07/03/2025 | 09:44:19 | -79.30,-155.38 | 123.49 | 07/03/2025 | 09:43:10 | -79.30,-155.32 | 123.49 | 1.40 | 69 |
| 4 | 07/05/2025 | 18:24:24 | 79.58,-107.71 | 57.10 | 07/05/2025 | 18:24:56 | 79.57,-107.65 | 57.09 | 1.22 | 32 |
| 5 | 07/05/2025 | 19:15:02 | -79.36, 61.53 | 123.20 | 07/05/2025 | 19:14:08 | -79.36, 61.61 | 123.19 | 1.72 | 54 |
| 6 | 07/08/2025 | 03:55:06 | 79.57, 109.72 | 57.35 | 07/08/2025 | 03:55:53 | 79.57, 109.68 | 57.34 | 0.80 | 47 |
| 7 | 07/08/2025 | 04:45:44 | -79.35, -81.04 | 122.94 | 07/08/2025 | 04:45:05 | -79.35, -81.04 | 122.94 | 0.12 | 39 |
| 8 | 07/10/2025 | 13:25:50 | 79.63, -33.43 | 57.72 | 07/10/2025 | 13:26:51 | 79.62, -33.36 | 57.70 | 1.64 | 61 |
| 9 | 07/10/2025 | 14:16:29 | -79.44, 135.56 | 122.53 | 07/10/2025 | 14:16:04 | -79.44, 135.68 | 122.54 | 2.64 | 25 |
| 10 | 07/12/2025 | 22:57:41 | 81.00, 160.74 | 60.99 | 07/12/2025 | 22:58:54 | 81.39, 161.41 | 61.21 | 45.56 | 73 |

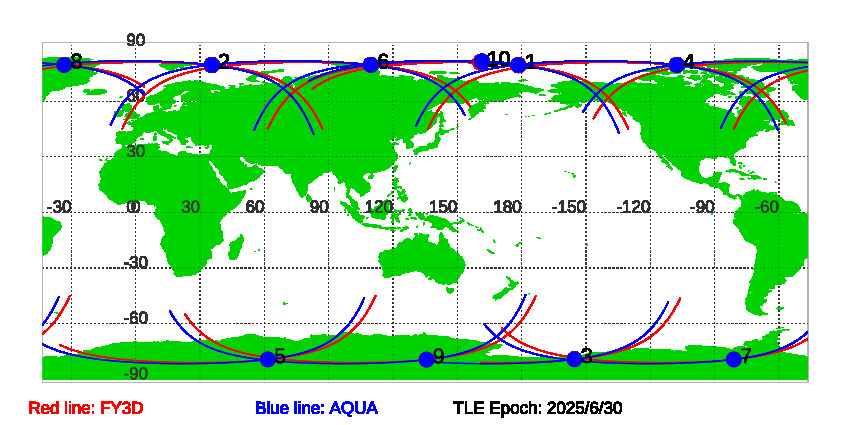

Figure of FY3D and AQUA satellite orbits during SNOs since TLE Epoch: 6/30/2025
Download SNOs between FY3D and AQUA since TLE EPOCH: 06/30/2025 in txt file.

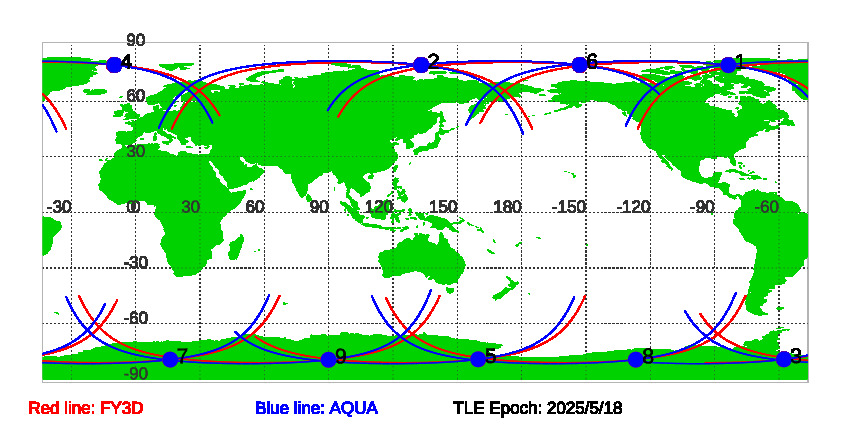

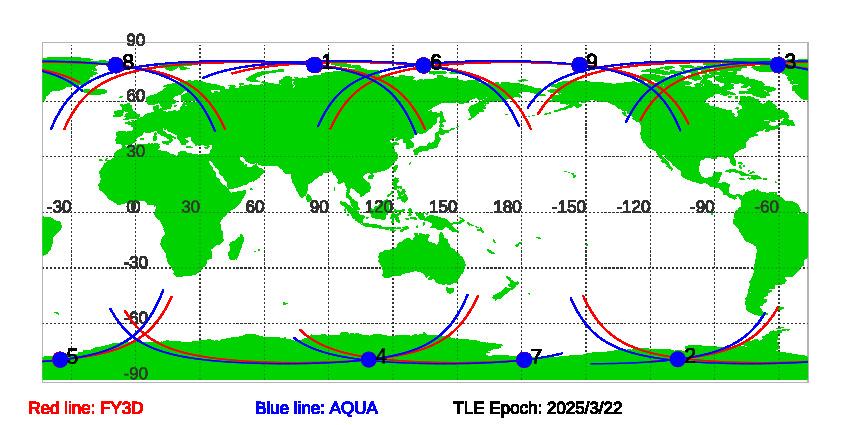

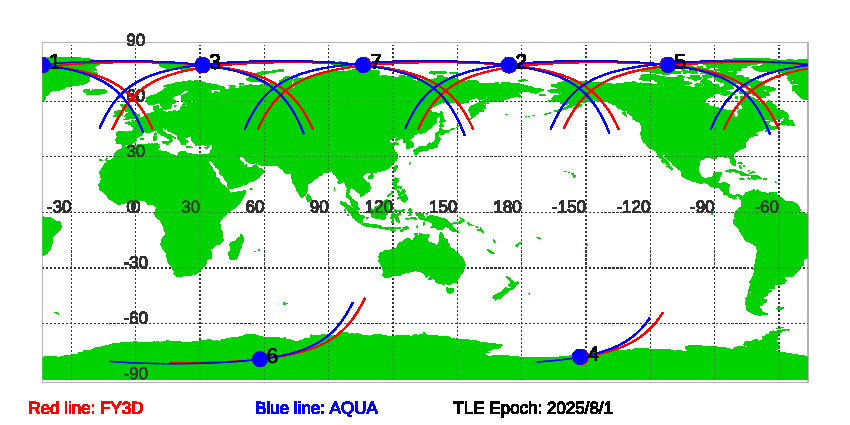

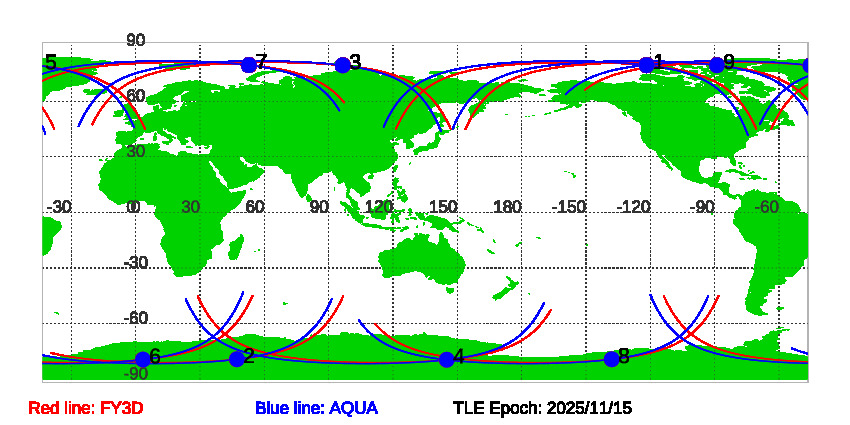

Historial Predications of SNOs between FY3D and AQUA
