Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between TERRA and METOP-C Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/8/2022
| Index | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Date (METOP-C) | Time (METOP-C) | Lat,Lon (METOP-C) | SZA (METOP-C ) | Distance(km) | Time Diff (sec) |
| 1 | 08/10/2022 | 17:29:00 | 81.14, -42.19 | 67.73 | 08/10/2022 | 17:27:52 | 81.15, -42.08 | 67.72 | 2.04 | 68 |
| 2 | 08/10/2022 | 18:18:26 | -81.16, 125.75 | 112.22 | 08/10/2022 | 18:18:31 | -81.17, 125.80 | 112.21 | 0.98 | 5 |
| 3 | 08/13/2022 | 13:03:11 | 81.16, 24.46 | 68.61 | 08/13/2022 | 13:02:13 | 81.15, 24.37 | 68.57 | 1.85 | 58 |
| 4 | 08/13/2022 | 13:52:37 | -81.18,-167.57 | 111.33 | 08/13/2022 | 13:52:51 | -81.18,-167.40 | 111.31 | 2.83 | 14 |
| 5 | 08/16/2022 | 08:37:22 | 81.14, 90.67 | 69.46 | 08/16/2022 | 08:36:33 | 81.15, 90.78 | 69.46 | 2.16 | 49 |
| 6 | 08/16/2022 | 09:26:48 | -81.17,-101.33 | 110.48 | 08/16/2022 | 09:27:12 | -81.17,-101.38 | 110.47 | 0.88 | 24 |
| 7 | 08/19/2022 | 04:11:33 | 81.15, 157.15 | 70.38 | 08/19/2022 | 04:10:54 | 81.15, 157.17 | 70.37 | 0.49 | 39 |
| 8 | 08/19/2022 | 05:00:59 | -81.17, -34.82 | 109.55 | 08/19/2022 | 05:01:32 | -81.18, -34.64 | 109.52 | 3.24 | 33 |
| 9 | 08/21/2022 | 23:45:44 | 81.14,-136.46 | 71.32 | 08/21/2022 | 23:45:15 | 81.15,-136.48 | 71.31 | 0.55 | 29 |

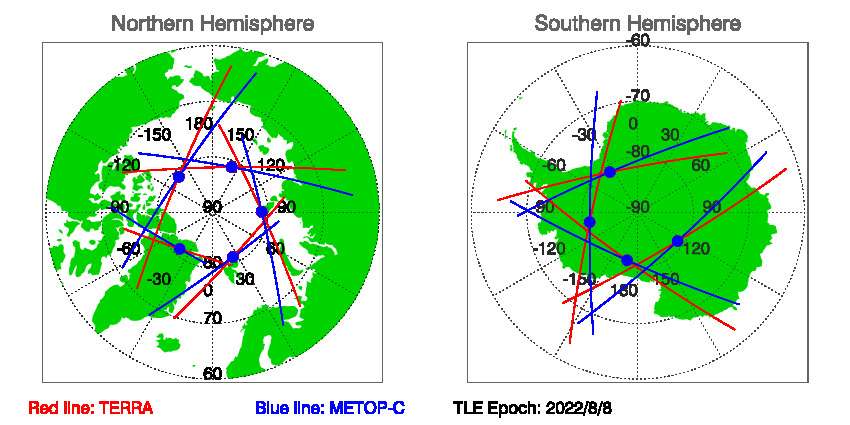

Figure of TERRA and METOP-C satellite orbits during SNOs since TLE Epoch: 8/8/2022
Download SNOs between TERRA and METOP-C since TLE EPOCH: 08/08/2022 in txt file.
Historial Predications of SNOs between TERRA and METOP-C
