Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NPP and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/19/2024
Index Date (NPP) Time (NPP) Lat,Lon (NPP) SZA (NPP ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 08/19/2024 13:32:24 72.54, -30.93 60.18 08/19/2024 13:32:58 72.54, -30.91 60.17 0.78 34
2 08/19/2024 14:23:06 -72.45, 136.57 119.91 08/19/2024 14:22:21 -72.45, 136.59 119.91 0.55 45
3 08/22/2024 00:44:50 72.60, 160.84 61.06 08/22/2024 00:45:50 72.59, 160.92 61.03 3.21 60
4 08/22/2024 01:35:32 -72.51, -31.65 119.04 08/22/2024 01:35:13 -72.50, -31.58 119.04 2.58 19
5 08/24/2024 11:57:25 73.14, -8.39 62.48 08/24/2024 11:58:33 73.05, -6.46 62.28 63.20 68
6 08/24/2024 12:47:57 -72.53, 160.20 118.18 08/24/2024 12:48:04 -72.54, 160.24 118.17 2.07 7
7 08/24/2024 13:38:39 72.33, -32.10 61.62 08/24/2024 13:37:27 72.38, -32.39 61.69 11.09 72
8 08/27/2024 00:00:22 -72.57, -7.98 117.29 08/27/2024 00:00:54 -72.57, -7.96 117.30 0.80 32
9 08/27/2024 00:51:06 72.48, 159.51 62.63 08/27/2024 00:50:16 72.45, 159.50 62.61 2.93 50
10 08/29/2024 11:12:46 -72.57,-176.08 116.42 08/29/2024 11:13:43 -72.58,-176.18 116.42 3.34 57
11 08/29/2024 12:03:30 72.48, -8.60 63.50 08/29/2024 12:03:04 72.51, -8.64 63.53 3.15 26
12 08/31/2024 22:25:15 -72.89, 15.15 115.20 08/31/2024 22:26:26 -72.80, 15.98 115.34 29.15 71
13 08/31/2024 23:15:54 72.56,-176.85 64.46 08/31/2024 23:15:50 72.56,-176.80 64.45 1.72 4

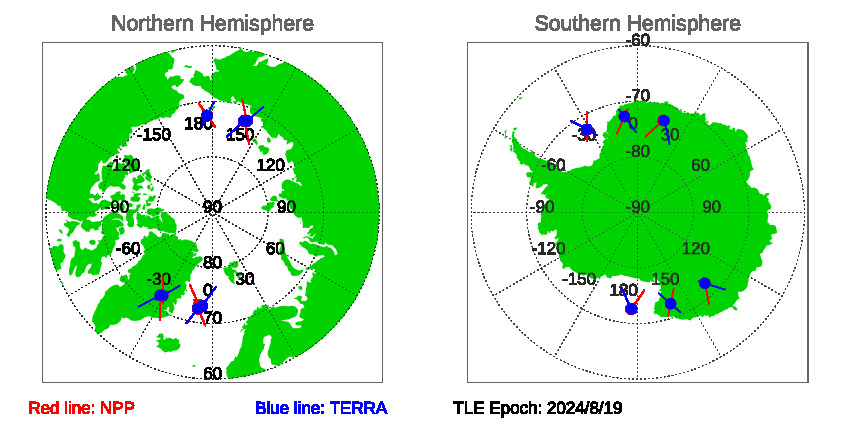

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/19/2024

Download SNOs between NPP and TERRA since TLE EPOCH: 08/19/2024 in txt file.

Historial Predications of SNOs between NPP and TERRA
