Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NPP and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/5/2024
Index Date (NPP) Time (NPP) Lat,Lon (NPP) SZA (NPP ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 08/07/2024 03:48:45 72.47, 115.12 56.34 08/07/2024 03:49:32 72.48, 115.03 56.34 2.99 47
2 08/07/2024 04:39:27 -72.39, -77.39 123.75 08/07/2024 04:38:55 -72.39, -77.47 123.74 2.47 32
3 08/09/2024 15:01:18 72.80, -53.65 57.40 08/09/2024 15:02:28 72.70, -52.84 57.24 28.74 70
4 08/09/2024 15:51:55 -72.45, 114.37 122.97 08/09/2024 15:51:54 -72.45, 114.36 122.98 0.22 1
5 08/09/2024 16:42:32 71.98, -77.41 56.53 08/09/2024 16:41:22 72.04, -78.70 56.67 44.78 70
6 08/12/2024 03:04:22 -72.53, -53.90 122.16 08/12/2024 03:04:51 -72.52, -53.80 122.19 3.36 29
7 08/12/2024 03:55:06 72.42, 113.63 57.73 08/12/2024 03:54:13 72.42, 113.69 57.74 2.11 53
8 08/14/2024 14:16:48 -72.51, 138.03 121.43 08/14/2024 14:17:49 -72.53, 137.94 121.43 3.47 61
9 08/14/2024 15:07:33 72.46, -54.56 58.53 08/14/2024 15:07:10 72.48, -54.48 58.55 3.44 23
10 08/17/2024 01:29:28 -73.21, -31.56 119.89 08/17/2024 01:30:35 -73.12, -29.22 120.11 76.04 67
11 08/17/2024 02:20:00 72.51, 137.23 59.35 08/17/2024 02:20:07 72.49, 137.25 59.32 2.87 7

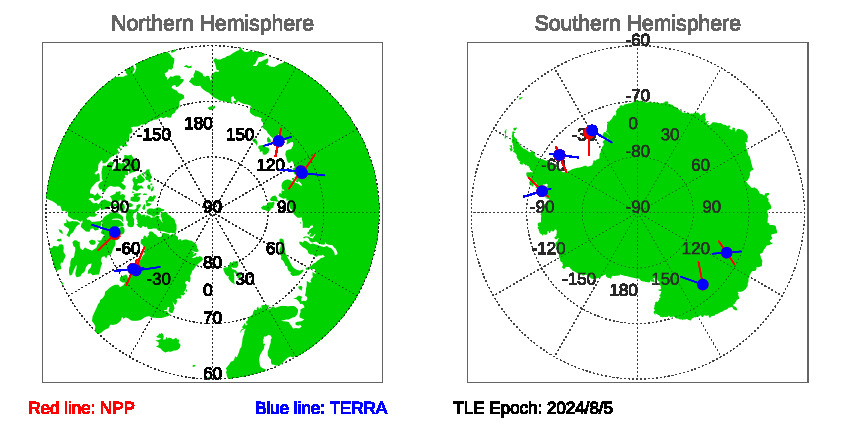

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/5/2024

Download SNOs between NPP and TERRA since TLE EPOCH: 08/05/2024 in txt file.

Historial Predications of SNOs between NPP and TERRA
