Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NPP and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/24/2024
Index Date (NPP) Time (NPP) Lat,Lon (NPP) SZA (NPP ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 05/24/2024 14:03:51 72.15, -37.99 51.25 05/24/2024 14:04:15 72.14, -38.08 51.24 3.09 24
2 05/24/2024 14:54:34 -72.10, 129.43 128.82 05/24/2024 14:53:39 -72.07, 129.46 128.83 2.70 55
3 05/27/2024 01:16:20 72.52, 153.19 51.22 05/27/2024 01:17:31 72.40, 154.01 51.06 30.33 71
4 05/27/2024 02:06:57 -72.16, -38.79 129.17 05/27/2024 02:06:58 -72.18, -38.73 129.16 2.86 1
5 05/27/2024 02:57:35 71.76, 129.27 50.40 05/27/2024 02:56:24 71.82, 128.33 50.51 33.73 71
6 05/29/2024 13:19:20 -72.23, 152.98 129.48 05/29/2024 13:20:17 -72.24, 153.00 129.48 0.87 57
7 05/29/2024 14:10:04 72.15, -39.54 50.43 05/29/2024 14:09:38 72.14, -39.50 50.43 1.63 26
8 06/01/2024 01:22:26 72.18, 152.30 50.12 06/01/2024 01:22:56 72.20, 152.24 50.14 3.04 30
9 06/01/2024 02:13:09 -72.12, -40.28 129.95 06/01/2024 02:12:21 -72.10, -40.28 129.96 2.77 48
10 06/03/2024 12:34:58 72.74, -16.91 50.42 06/03/2024 12:36:07 72.59, -15.42 50.20 51.74 69
11 06/03/2024 13:25:31 -72.17, 151.55 130.20 06/03/2024 13:25:38 -72.17, 151.48 130.20 2.38 7
12 06/03/2024 14:16:12 71.93, -40.69 49.54 06/03/2024 14:15:00 72.01, -41.13 49.65 17.52 72
13 06/06/2024 00:37:54 -72.28, -16.75 130.35 06/06/2024 00:38:54 -72.25, -16.74 130.39 2.76 60
14 06/06/2024 01:28:37 72.14, 150.82 49.51 06/06/2024 01:28:15 72.14, 150.73 49.51 3.15 22

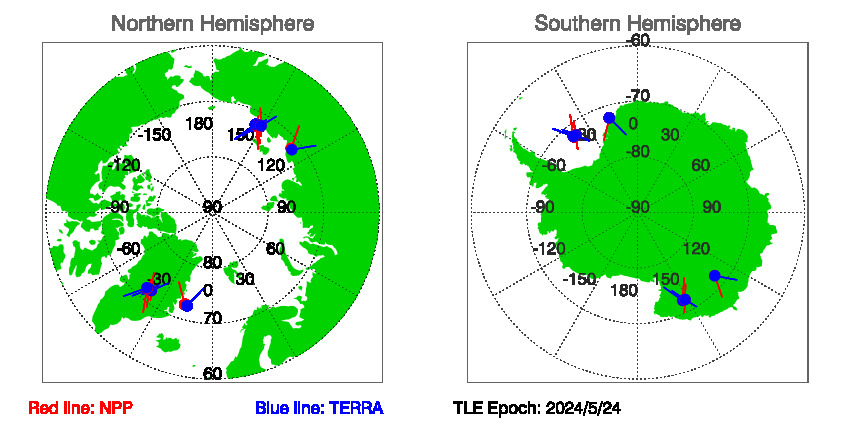

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 5/24/2024

Download SNOs between NPP and TERRA since TLE EPOCH: 05/24/2024 in txt file.

Historial Predications of SNOs between NPP and TERRA
