Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/19/2024
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 05/19/2024 | 13:57:39 | 72.20, -36.52 | 52.27 | 05/19/2024 | 13:58:48 | 72.22, -36.52 | 52.28 | 2.14 | 69 |
2 | 05/19/2024 | 14:48:21 | -72.10, 130.99 | 127.85 | 05/19/2024 | 14:48:13 | -72.08, 130.91 | 127.86 | 3.08 | 8 |
3 | 05/19/2024 | 15:38:52 | 71.33, -60.30 | 51.34 | 05/19/2024 | 15:37:45 | 71.42, -62.53 | 51.53 | 79.75 | 67 |
4 | 05/22/2024 | 02:00:45 | -72.19, -37.28 | 128.25 | 05/22/2024 | 02:01:34 | -72.18, -37.31 | 128.26 | 1.19 | 49 |
5 | 05/22/2024 | 02:51:29 | 72.10, 130.20 | 51.65 | 05/22/2024 | 02:50:55 | 72.11, 130.23 | 51.66 | 1.44 | 34 |
6 | 05/24/2024 | 14:03:52 | 72.15, -38.00 | 51.26 | 05/24/2024 | 14:04:15 | 72.18, -38.01 | 51.28 | 3.35 | 23 |
7 | 05/24/2024 | 14:54:33 | -72.05, 129.52 | 128.87 | 05/24/2024 | 14:53:39 | -72.07, 129.45 | 128.84 | 3.28 | 54 |
8 | 05/27/2024 | 01:16:19 | 72.48, 153.26 | 51.19 | 05/27/2024 | 01:17:30 | 72.42, 154.04 | 51.08 | 26.92 | 71 |
9 | 05/27/2024 | 02:06:57 | -72.17, -38.80 | 129.16 | 05/27/2024 | 02:06:58 | -72.15, -38.79 | 129.19 | 2.50 | 1 |
10 | 05/27/2024 | 02:57:34 | 71.72, 129.34 | 50.36 | 05/27/2024 | 02:56:23 | 71.84, 128.35 | 50.53 | 36.77 | 71 |
11 | 05/29/2024 | 13:19:19 | -72.20, 153.04 | 129.51 | 05/29/2024 | 13:20:16 | -72.22, 152.97 | 129.50 | 3.18 | 57 |
12 | 05/29/2024 | 14:10:03 | 72.12, -39.49 | 50.40 | 05/29/2024 | 14:09:37 | 72.12, -39.54 | 50.40 | 1.79 | 26 |
13 | 06/01/2024 | 01:22:26 | 72.22, 152.23 | 50.16 | 06/01/2024 | 01:22:53 | 72.22, 152.29 | 50.16 | 2.09 | 27 |
14 | 06/01/2024 | 02:13:08 | -72.10, -40.24 | 129.97 | 06/01/2024 | 02:12:18 | -72.13, -40.23 | 129.94 | 2.43 | 50 |

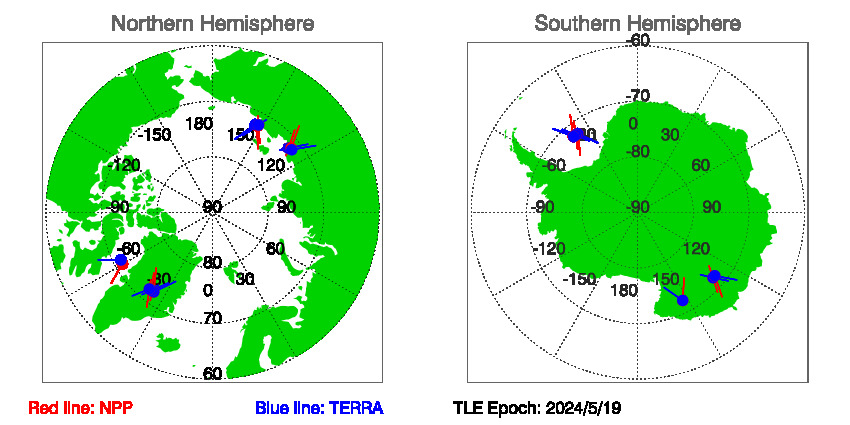

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 5/19/2024
Download SNOs between NPP and TERRA since TLE EPOCH: 05/19/2024 in txt file.
Historial Predications of SNOs between NPP and TERRA
