Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NPP and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/11/2024
Index Date (NPP) Time (NPP) Lat,Lon (NPP) SZA (NPP ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 05/12/2024 02:39:00 72.14, 133.25 53.93 05/12/2024 02:39:51 72.15, 133.22 53.92 1.12 51
2 05/12/2024 03:29:42 -72.04, -59.24 126.19 05/12/2024 03:29:15 -72.05, -59.29 126.18 1.93 27
3 05/14/2024 14:42:07 -72.14, 132.48 126.69 05/14/2024 14:42:37 -72.15, 132.50 126.68 1.73 30
4 05/14/2024 15:32:51 72.04, -60.04 53.21 05/14/2024 15:31:59 72.04, -60.03 53.21 0.72 52
5 05/17/2024 01:54:41 -72.71, -36.76 126.65 05/17/2024 01:55:50 -72.58, -35.11 126.85 56.42 69
6 05/17/2024 02:45:15 72.11, 131.74 52.71 05/17/2024 02:45:18 72.14, 131.76 52.73 3.09 3
7 05/17/2024 03:35:56 -71.95, -60.64 127.47 05/17/2024 03:34:43 -72.00, -60.81 127.40 8.07 73
8 05/19/2024 13:57:39 72.19, -36.52 52.27 05/19/2024 13:58:35 72.19, -36.50 52.26 0.72 56
9 05/19/2024 14:48:21 -72.08, 131.01 127.86 05/19/2024 14:48:00 -72.07, 130.94 127.87 3.07 21
10 05/22/2024 02:00:45 -72.18, -37.28 128.25 05/22/2024 02:01:13 -72.20, -37.19 128.25 3.27 28
11 05/22/2024 02:51:28 72.05, 130.29 51.61 05/22/2024 02:50:35 72.05, 130.23 51.61 2.07 53
12 05/24/2024 13:13:11 -72.40, 154.20 128.47 05/24/2024 13:14:23 -72.34, 154.72 128.58 19.06 72
13 05/24/2024 14:03:51 72.12, -37.94 51.22 05/24/2024 14:03:46 72.13, -37.98 51.23 1.52 5

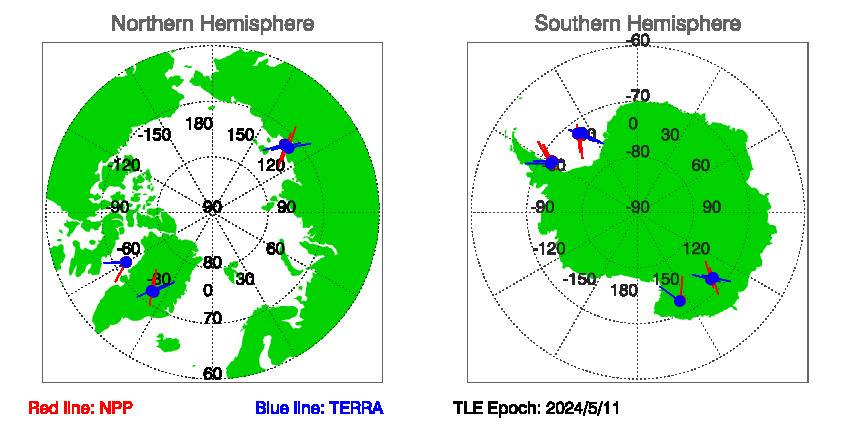

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 5/11/2024

Download SNOs between NPP and TERRA since TLE EPOCH: 05/11/2024 in txt file.

Historial Predications of SNOs between NPP and TERRA
