Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/15/2024
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 01/15/2024 | 14:41:59 | 71.68, -46.60 | 92.91 | 01/15/2024 | 14:42:52 | 71.66, -46.60 | 92.88 | 1.78 | 53 |
2 | 01/15/2024 | 15:32:41 | -71.58, 120.90 | 87.21 | 01/15/2024 | 15:32:16 | -71.59, 120.94 | 87.20 | 2.06 | 25 |
3 | 01/18/2024 | 02:45:09 | -71.66, -47.36 | 87.59 | 01/18/2024 | 02:46:10 | -71.67, -47.44 | 87.59 | 2.96 | 61 |
4 | 01/18/2024 | 03:35:53 | 71.56, 120.13 | 92.30 | 01/18/2024 | 03:35:32 | 71.58, 120.08 | 92.33 | 2.87 | 21 |
5 | 01/20/2024 | 14:48:22 | 71.71, -48.25 | 91.96 | 01/20/2024 | 14:49:24 | 71.72, -48.20 | 91.95 | 1.98 | 62 |
6 | 01/20/2024 | 15:39:04 | -71.60, 119.26 | 88.17 | 01/20/2024 | 15:38:49 | -71.61, 119.27 | 88.16 | 0.63 | 15 |
7 | 01/23/2024 | 02:51:31 | -71.71, -49.04 | 88.60 | 01/23/2024 | 02:52:40 | -71.71, -49.07 | 88.61 | 1.06 | 69 |
8 | 01/23/2024 | 03:42:15 | 71.62, 118.44 | 91.30 | 01/23/2024 | 03:42:02 | 71.61, 118.43 | 91.29 | 0.87 | 13 |
9 | 01/23/2024 | 04:32:45 | -70.88, -72.98 | 89.50 | 01/23/2024 | 04:31:37 | -70.96, -74.94 | 89.31 | 72.01 | 68 |
10 | 01/25/2024 | 14:54:43 | 71.73, -49.88 | 90.84 | 01/25/2024 | 14:55:53 | 71.72, -49.90 | 90.81 | 1.86 | 70 |
11 | 01/25/2024 | 15:45:25 | -71.62, 117.63 | 89.29 | 01/25/2024 | 15:45:18 | -71.62, 117.60 | 89.29 | 1.29 | 7 |
12 | 01/25/2024 | 16:35:58 | 70.96, -73.90 | 90.00 | 01/25/2024 | 16:34:49 | 71.02, -75.70 | 90.15 | 65.40 | 69 |
13 | 01/28/2024 | 02:57:55 | -71.85, -50.89 | 89.66 | 01/28/2024 | 02:59:07 | -71.80, -50.60 | 89.74 | 11.50 | 72 |
14 | 01/28/2024 | 03:48:37 | 71.66, 116.77 | 90.13 | 01/28/2024 | 03:48:30 | 71.63, 116.78 | 90.10 | 3.50 | 7 |

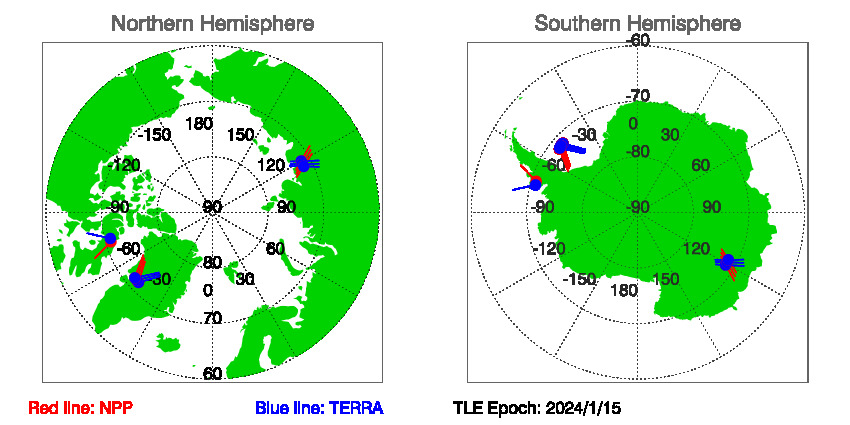

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 1/15/2024
Download SNOs between NPP and TERRA since TLE EPOCH: 01/15/2024 in txt file.
Historial Predications of SNOs between NPP and TERRA
