Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/23/2023
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 12/24/2023 | 01:22:25 | 71.62, 153.41 | 95.03 | 12/24/2023 | 01:23:33 | 71.59, 153.41 | 94.99 | 3.55 | 68 |
2 | 12/24/2023 | 02:13:06 | -71.47, -39.01 | 85.13 | 12/24/2023 | 02:12:57 | -71.49, -39.08 | 85.11 | 3.39 | 9 |
3 | 12/24/2023 | 03:03:38 | 70.73, 129.56 | 94.10 | 12/24/2023 | 03:02:31 | 70.79, 127.48 | 94.23 | 76.49 | 67 |
4 | 12/26/2023 | 13:25:41 | -71.84, 152.21 | 84.80 | 12/26/2023 | 13:26:53 | -71.75, 152.80 | 84.92 | 23.02 | 72 |
5 | 12/26/2023 | 14:16:21 | 71.53, -39.91 | 94.88 | 12/26/2023 | 14:16:18 | 71.53, -39.89 | 94.88 | 1.15 | 3 |
6 | 12/26/2023 | 15:06:58 | -71.17, 128.03 | 85.50 | 12/26/2023 | 15:05:46 | -71.23, 127.28 | 85.42 | 27.72 | 72 |
7 | 12/29/2023 | 01:28:59 | 72.11, 150.89 | 95.40 | 12/29/2023 | 01:30:08 | 72.02, 152.40 | 95.25 | 52.58 | 69 |
8 | 12/29/2023 | 02:19:32 | -71.55, -40.75 | 85.21 | 12/29/2023 | 02:19:39 | -71.56, -40.73 | 85.20 | 1.20 | 7 |
9 | 12/29/2023 | 03:10:15 | 71.39, 126.84 | 94.63 | 12/29/2023 | 03:09:03 | 71.39, 126.67 | 94.64 | 6.18 | 72 |
10 | 12/31/2023 | 13:32:17 | -72.44, 149.45 | 84.41 | 12/31/2023 | 13:33:23 | -72.39, 152.17 | 84.56 | 91.43 | 66 |
11 | 12/31/2023 | 14:22:46 | 71.57, -41.60 | 94.67 | 12/31/2023 | 14:22:59 | 71.57, -41.57 | 94.67 | 1.00 | 13 |
12 | 12/31/2023 | 15:13:28 | -71.47, 125.91 | 85.45 | 12/31/2023 | 15:12:23 | -71.49, 125.95 | 85.42 | 2.96 | 65 |
13 | 01/03/2024 | 02:25:58 | -71.60, -42.45 | 85.50 | 01/03/2024 | 02:26:20 | -71.58, -42.42 | 85.52 | 1.94 | 22 |
14 | 01/03/2024 | 03:16:41 | 71.45, 125.13 | 94.34 | 01/03/2024 | 03:15:43 | 71.46, 125.05 | 94.36 | 3.09 | 58 |
15 | 01/05/2024 | 14:29:11 | 71.59, -43.24 | 94.25 | 01/05/2024 | 14:29:39 | 71.57, -43.29 | 94.23 | 3.14 | 28 |
16 | 01/05/2024 | 15:19:53 | -71.48, 124.27 | 85.87 | 01/05/2024 | 15:19:03 | -71.50, 124.24 | 85.85 | 2.06 | 50 |

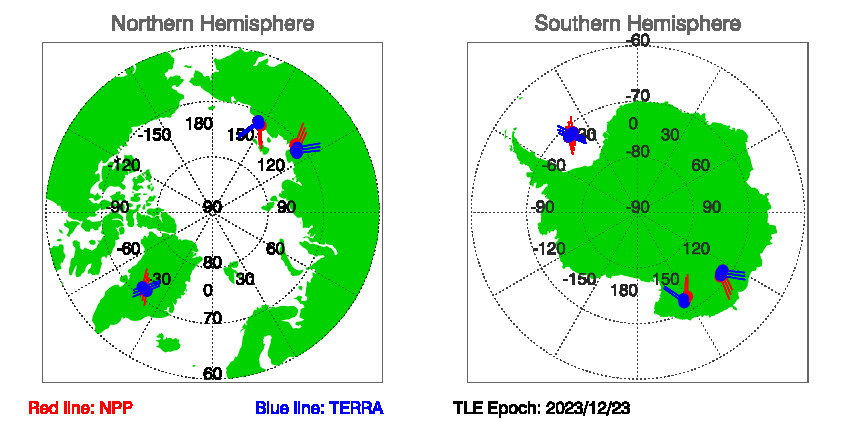

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 12/23/2023
Download SNOs between NPP and TERRA since TLE EPOCH: 12/23/2023 in txt file.
Historial Predications of SNOs between NPP and TERRA
