Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/15/2023
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 09/17/2023 | 01:10:16 | -71.25, -22.74 | 111.23 | 09/17/2023 | 01:11:06 | -71.28, -22.72 | 111.21 | 3.36 | 50 |
2 | 09/17/2023 | 02:01:00 | 71.15, 144.74 | 68.69 | 09/17/2023 | 02:00:30 | 71.12, 144.70 | 68.66 | 3.29 | 30 |
3 | 09/19/2023 | 13:13:37 | 71.88, -24.66 | 70.40 | 09/19/2023 | 13:14:46 | 71.77, -22.90 | 70.24 | 62.34 | 69 |
4 | 09/19/2023 | 14:04:08 | -71.21, 143.85 | 110.29 | 09/19/2023 | 14:04:19 | -71.23, 143.88 | 110.27 | 2.58 | 11 |
5 | 09/19/2023 | 14:54:52 | 71.11, -48.67 | 69.62 | 09/19/2023 | 14:53:42 | 71.12, -48.63 | 69.64 | 1.67 | 70 |
6 | 09/22/2023 | 02:07:18 | 71.28, 142.94 | 70.75 | 09/22/2023 | 02:08:06 | 71.30, 143.00 | 70.76 | 2.71 | 48 |
7 | 09/22/2023 | 02:57:59 | -71.18, -49.57 | 109.35 | 09/22/2023 | 02:57:31 | -71.15, -49.58 | 109.38 | 3.33 | 28 |
8 | 09/24/2023 | 14:10:37 | -71.97, 140.91 | 107.57 | 09/24/2023 | 14:11:45 | -71.84, 142.90 | 107.75 | 70.26 | 68 |
9 | 09/24/2023 | 15:01:08 | 71.21, -50.41 | 71.66 | 09/24/2023 | 15:01:17 | 71.22, -50.44 | 71.67 | 1.82 | 9 |
10 | 09/24/2023 | 15:51:51 | -71.15, 117.00 | 108.39 | 09/24/2023 | 15:50:42 | -71.14, 117.08 | 108.40 | 3.38 | 69 |
11 | 09/27/2023 | 03:04:16 | -71.28, -51.32 | 107.30 | 09/27/2023 | 03:05:05 | -71.30, -51.29 | 107.28 | 2.32 | 49 |
12 | 09/27/2023 | 03:55:00 | 71.20, 116.14 | 72.63 | 09/27/2023 | 03:54:28 | 71.17, 116.16 | 72.60 | 3.19 | 32 |

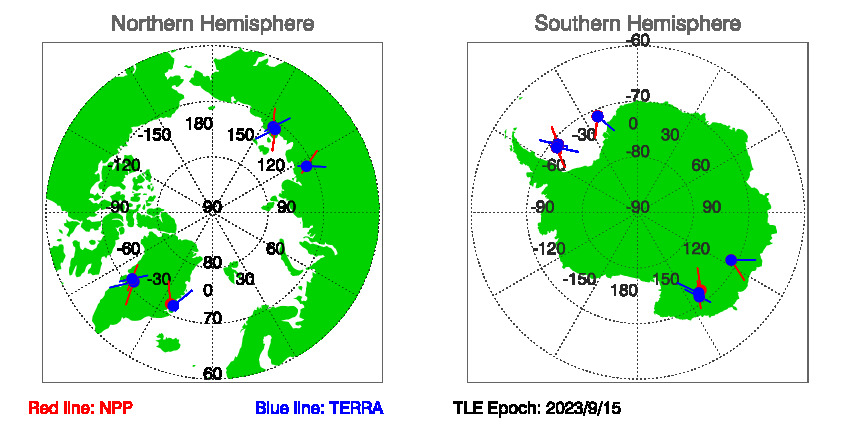

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 9/15/2023
Download SNOs between NPP and TERRA since TLE EPOCH: 09/15/2023 in txt file.
Historial Predications of SNOs between NPP and TERRA
