Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NPP and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/15/2023

Index	Date (NPP)	Time (NPP)	Lat,Lon (NPP)	SZA (NPP )	Date (TERRA)	Time (TERRA)	Lat,Lon (TERRA)	SZA (TERRA )	Distance(km)	Time Diff (sec)
1	07/16/2023	00:00:57	71.32, 174.64	49.93	07/16/2023	00:02:09	71.23, 175.15	49.81	20.89	72
2	07/16/2023	00:51:35	-71.03, -17.55	130.37	07/16/2023	00:51:37	-71.01, -17.55	130.40	2.60	2
3	07/16/2023	01:42:14	70.65, 150.39	49.23	07/16/2023	01:41:02	70.75, 149.73	49.37	27.22	72
4	07/18/2023	12:54:48	71.07, -18.42	50.09	07/18/2023	12:55:27	71.09, -18.42	50.10	2.18	39
5	07/18/2023	13:45:30	-70.98, 149.04	129.99	07/18/2023	13:44:53	-70.97, 149.06	130.00	1.39	37
6	07/21/2023	00:58:06	-71.51, -19.98	128.98	07/21/2023	00:59:16	-71.39, -18.94	129.15	39.20	70
7	07/21/2023	01:48:43	71.03, 148.16	50.52	07/21/2023	01:48:43	71.03, 148.15	50.52	0.28	0
8	07/21/2023	02:39:23	-70.84, -44.21	129.68	07/21/2023	02:38:10	-70.86, -44.45	129.64	9.29	73
9	07/23/2023	13:51:54	-71.11, 147.22	128.90	07/23/2023	13:52:36	-71.09, 147.25	128.93	2.62	42
10	07/23/2023	14:42:38	71.00, -45.28	50.99	07/23/2023	14:41:58	71.00, -45.23	50.99	1.65	40
11	07/26/2023	01:55:11	71.38, 145.95	51.92	07/26/2023	01:56:23	71.26, 146.53	51.76	24.83	72
12	07/26/2023	02:45:48	-71.03, -46.13	128.45	07/26/2023	02:45:51	-71.03, -46.18	128.45	1.81	3
13	07/26/2023	03:36:28	70.71, 121.71	51.22	07/26/2023	03:35:16	70.78, 121.10	51.33	23.77	72
14	07/28/2023	14:49:00	71.10, -47.05	52.19	07/28/2023	14:49:38	71.12, -47.02	52.21	2.60	38
15	07/28/2023	15:39:42	-71.00, 120.43	127.90	07/28/2023	15:39:04	-71.00, 120.45	127.90	0.77	38

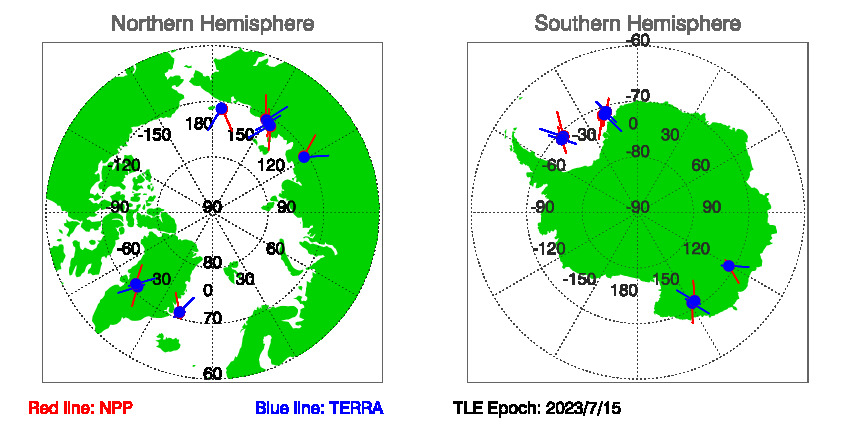

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/15/2023

Download SNOs between NPP and TERRA since TLE EPOCH: 07/15/2023 in txt file.

Historial Predications of SNOs between NPP and TERRA
