Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/18/2023
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 05/18/2023 | 23:48:31 | 70.91, 178.56 | 51.19 | 05/18/2023 | 23:49:02 | 70.90, 178.55 | 51.17 | 1.34 | 31 |
2 | 05/19/2023 | 00:39:13 | -70.82, -13.96 | 128.92 | 05/19/2023 | 00:38:27 | -70.80, -13.95 | 128.94 | 2.49 | 46 |
3 | 05/21/2023 | 11:51:49 | -71.45, 176.86 | 128.78 | 05/21/2023 | 11:52:59 | -71.33, 178.17 | 128.94 | 48.41 | 70 |
4 | 05/21/2023 | 12:42:24 | 70.88, -14.86 | 50.62 | 05/21/2023 | 12:42:29 | 70.86, -14.90 | 50.59 | 2.86 | 5 |
5 | 05/21/2023 | 13:33:06 | -70.78, 152.62 | 129.50 | 05/21/2023 | 13:31:54 | -70.76, 152.60 | 129.51 | 2.48 | 72 |
6 | 05/24/2023 | 00:45:33 | -70.95, -15.76 | 129.80 | 05/24/2023 | 00:46:32 | -70.94, -15.82 | 129.81 | 2.20 | 59 |
7 | 05/24/2023 | 01:36:17 | 70.84, 151.72 | 50.09 | 05/24/2023 | 01:35:55 | 70.84, 151.69 | 50.09 | 0.98 | 22 |
8 | 05/26/2023 | 13:39:26 | -70.91, 150.81 | 130.29 | 05/26/2023 | 13:39:58 | -70.91, 150.76 | 130.30 | 2.03 | 32 |
9 | 05/26/2023 | 14:30:10 | 70.82, -41.72 | 49.60 | 05/26/2023 | 14:29:21 | 70.81, -41.74 | 49.60 | 1.43 | 49 |
10 | 05/29/2023 | 01:42:43 | 71.31, 149.35 | 49.71 | 05/29/2023 | 01:43:54 | 71.22, 150.19 | 49.59 | 31.90 | 71 |
11 | 05/29/2023 | 02:33:19 | -70.89, -42.62 | 130.73 | 05/29/2023 | 02:33:23 | -70.92, -42.62 | 130.71 | 3.26 | 4 |
12 | 05/29/2023 | 03:24:00 | 70.64, 125.10 | 49.00 | 05/29/2023 | 03:22:48 | 70.69, 124.71 | 49.08 | 15.80 | 72 |
13 | 05/31/2023 | 14:36:29 | 70.98, -43.57 | 48.99 | 05/31/2023 | 14:37:22 | 70.97, -43.56 | 48.98 | 0.47 | 53 |
14 | 05/31/2023 | 15:27:11 | -70.87, 123.93 | 131.13 | 05/31/2023 | 15:26:48 | -70.85, 123.90 | 131.15 | 2.82 | 23 |

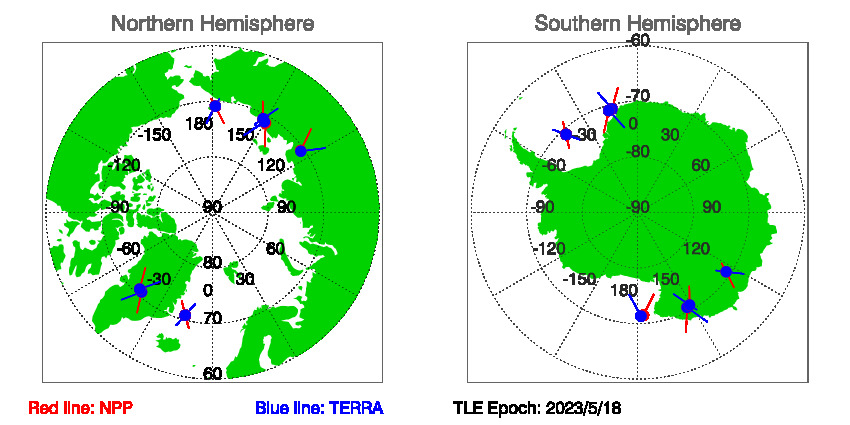

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 5/18/2023
Download SNOs between NPP and TERRA since TLE EPOCH: 05/18/2023 in txt file.
Historial Predications of SNOs between NPP and TERRA
