Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/3/2023
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 04/03/2023 | 11:52:05 | -70.73, 177.84 | 114.62 | 04/03/2023 | 11:52:30 | -70.72, 177.90 | 114.64 | 2.48 | 25 |
2 | 04/03/2023 | 12:42:49 | 70.61, -14.65 | 65.24 | 04/03/2023 | 12:41:53 | 70.61, -14.61 | 65.25 | 1.49 | 56 |
3 | 04/05/2023 | 23:55:27 | 71.15, 176.33 | 64.87 | 04/05/2023 | 23:56:37 | 71.08, 177.36 | 64.75 | 38.10 | 70 |
4 | 04/06/2023 | 00:46:02 | -70.70, -15.60 | 115.62 | 04/06/2023 | 00:46:08 | -70.69, -15.59 | 115.64 | 2.10 | 6 |
5 | 04/06/2023 | 01:36:44 | 70.48, 152.08 | 64.14 | 04/06/2023 | 01:35:32 | 70.52, 151.83 | 64.19 | 10.39 | 72 |
6 | 04/08/2023 | 12:49:17 | 70.78, -16.51 | 63.51 | 04/08/2023 | 12:50:19 | 70.78, -16.52 | 63.51 | 0.94 | 62 |
7 | 04/08/2023 | 13:39:59 | -70.69, 150.95 | 116.60 | 04/08/2023 | 13:39:45 | -70.66, 150.95 | 116.62 | 2.59 | 14 |
8 | 04/08/2023 | 14:30:28 | 69.78, -40.32 | 62.45 | 04/08/2023 | 14:29:21 | 69.84, -42.57 | 62.58 | 86.53 | 67 |
9 | 04/11/2023 | 01:43:14 | 70.77, 150.02 | 62.56 | 04/11/2023 | 01:43:55 | 70.78, 150.05 | 62.56 | 1.07 | 41 |
10 | 04/11/2023 | 02:33:56 | -70.68, -42.51 | 117.55 | 04/11/2023 | 02:33:21 | -70.65, -42.48 | 117.57 | 3.09 | 35 |
11 | 04/13/2023 | 14:37:10 | 70.73, -43.38 | 61.58 | 04/13/2023 | 14:37:31 | 70.72, -43.45 | 61.58 | 2.51 | 21 |
12 | 04/13/2023 | 15:27:52 | -70.63, 124.09 | 118.53 | 04/13/2023 | 15:26:56 | -70.66, 124.10 | 118.50 | 2.86 | 56 |
13 | 04/16/2023 | 02:40:28 | -71.11, -44.81 | 118.92 | 04/16/2023 | 02:41:39 | -71.01, -44.09 | 119.05 | 28.16 | 71 |
14 | 04/16/2023 | 03:31:07 | 70.74, 123.11 | 60.69 | 04/16/2023 | 03:31:05 | 70.74, 123.16 | 60.68 | 1.58 | 2 |
15 | 04/16/2023 | 04:21:46 | -70.49, -69.16 | 119.60 | 04/16/2023 | 04:20:33 | -70.51, -69.54 | 119.56 | 14.39 | 73 |

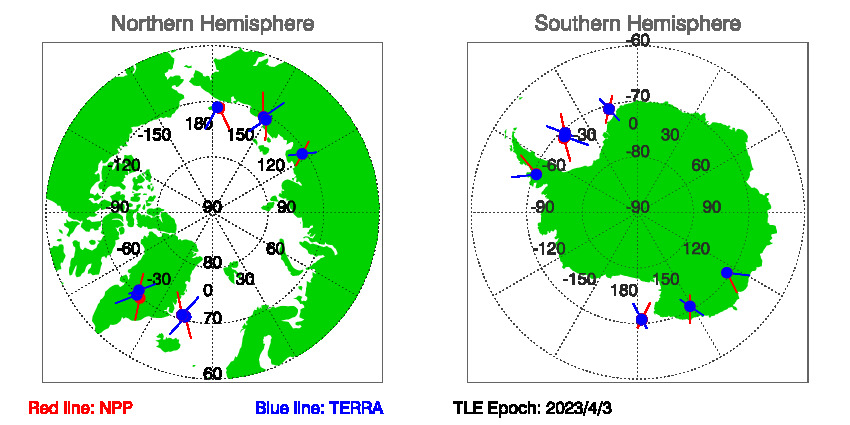

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 4/3/2023
Download SNOs between NPP and TERRA since TLE EPOCH: 04/03/2023 in txt file.
Historial Predications of SNOs between NPP and TERRA
