Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/1/2023
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 04/03/2023 | 11:52:05 | -70.72, 177.86 | 114.63 | 04/03/2023 | 11:52:30 | -70.73, 177.91 | 114.63 | 2.16 | 25 |
| 2 | 04/03/2023 | 12:42:49 | 70.59, -14.63 | 65.23 | 04/03/2023 | 12:41:53 | 70.61, -14.60 | 65.25 | 2.35 | 56 |
| 3 | 04/05/2023 | 23:55:27 | 71.15, 176.34 | 64.86 | 04/05/2023 | 23:56:38 | 71.01, 177.26 | 64.69 | 36.22 | 71 |
| 4 | 04/06/2023 | 00:46:02 | -70.69, -15.58 | 115.63 | 04/06/2023 | 00:46:08 | -70.68, -15.59 | 115.64 | 1.50 | 6 |
| 5 | 04/06/2023 | 01:36:44 | 70.47, 152.10 | 64.13 | 04/06/2023 | 01:35:32 | 70.51, 151.82 | 64.18 | 11.29 | 72 |
| 6 | 04/08/2023 | 12:49:17 | 70.77, -16.50 | 63.51 | 04/08/2023 | 12:50:19 | 70.75, -16.56 | 63.48 | 2.80 | 62 |
| 7 | 04/08/2023 | 13:39:59 | -70.68, 150.97 | 116.60 | 04/08/2023 | 13:39:44 | -70.69, 151.00 | 116.59 | 1.84 | 15 |
| 8 | 04/08/2023 | 14:30:28 | 69.77, -40.31 | 62.44 | 04/08/2023 | 14:29:21 | 69.80, -42.60 | 62.55 | 88.31 | 67 |
| 9 | 04/11/2023 | 01:43:14 | 70.77, 150.03 | 62.56 | 04/11/2023 | 01:43:54 | 70.77, 150.05 | 62.56 | 0.88 | 40 |
| 10 | 04/11/2023 | 02:33:56 | -70.68, -42.50 | 117.55 | 04/11/2023 | 02:33:20 | -70.65, -42.48 | 117.58 | 2.63 | 36 |
| 11 | 04/13/2023 | 14:37:09 | 70.73, -43.38 | 61.58 | 04/13/2023 | 14:37:28 | 70.74, -43.42 | 61.60 | 2.00 | 19 |
| 12 | 04/13/2023 | 15:27:51 | -70.63, 124.09 | 118.53 | 04/13/2023 | 15:26:54 | -70.62, 124.05 | 118.54 | 1.90 | 57 |

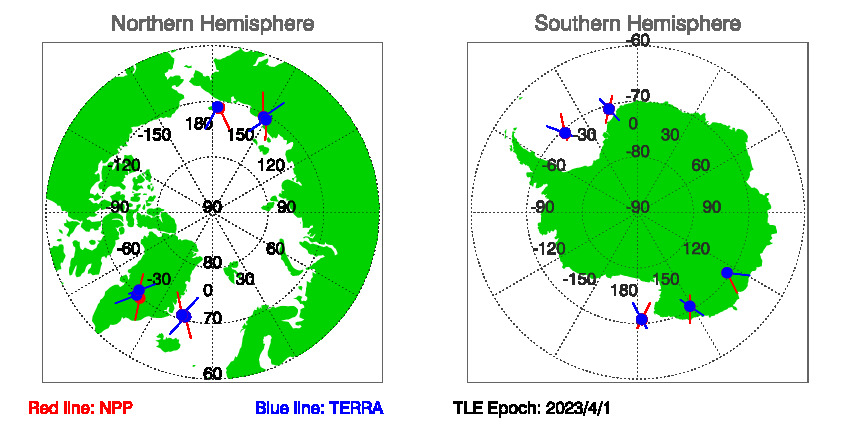

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 4/1/2023
Download SNOs between NPP and TERRA since TLE EPOCH: 04/01/2023 in txt file.
Historial Predications of SNOs between NPP and TERRA
