Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 2/21/2023
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 02/21/2023 | 23:10:10 | -70.80, 8.08 | 98.75 | 02/21/2023 | 23:11:22 | -70.70, 8.56 | 98.89 | 20.70 | 72 |
| 2 | 02/22/2023 | 00:00:50 | 70.48, 175.91 | 80.90 | 02/22/2023 | 00:00:47 | 70.48, 175.90 | 80.90 | 0.65 | 3 |
| 3 | 02/22/2023 | 00:51:28 | -70.18, -16.29 | 99.44 | 02/22/2023 | 00:50:15 | -70.28, -16.75 | 99.31 | 20.25 | 73 |
| 4 | 02/24/2023 | 12:04:03 | -70.72, 174.75 | 99.78 | 02/24/2023 | 12:05:14 | -70.69, 175.06 | 99.83 | 11.66 | 71 |
| 5 | 02/24/2023 | 12:54:45 | 70.50, -17.59 | 79.99 | 02/24/2023 | 12:54:38 | 70.52, -17.54 | 80.00 | 2.49 | 7 |
| 6 | 02/24/2023 | 13:45:21 | -70.10, 150.37 | 100.46 | 02/24/2023 | 13:44:09 | -70.16, 149.59 | 100.36 | 30.05 | 72 |
| 7 | 02/27/2023 | 00:57:55 | -70.59, -18.51 | 100.86 | 02/27/2023 | 00:59:07 | -70.59, -18.57 | 100.87 | 2.36 | 72 |
| 8 | 02/27/2023 | 01:48:39 | 70.48, 148.97 | 79.02 | 02/27/2023 | 01:48:30 | 70.47, 148.90 | 79.00 | 3.24 | 9 |
| 9 | 02/27/2023 | 02:39:13 | -69.97, -42.91 | 101.54 | 02/27/2023 | 02:38:02 | -70.06, -44.03 | 101.40 | 43.99 | 71 |
| 10 | 03/01/2023 | 13:51:49 | -70.63, 147.96 | 101.78 | 03/01/2023 | 13:52:56 | -70.63, 147.99 | 101.80 | 1.16 | 67 |
| 11 | 03/01/2023 | 14:42:32 | 70.47, -44.48 | 78.04 | 03/01/2023 | 14:42:19 | 70.49, -44.54 | 78.07 | 3.32 | 13 |
| 12 | 03/01/2023 | 15:33:04 | -69.85, 123.81 | 102.63 | 03/01/2023 | 15:31:54 | -69.92, 122.30 | 102.48 | 58.34 | 70 |
| 13 | 03/04/2023 | 02:45:43 | -70.62, -45.50 | 102.76 | 03/04/2023 | 02:46:46 | -70.63, -45.49 | 102.77 | 0.31 | 63 |
| 14 | 03/04/2023 | 03:36:27 | 70.52, 121.98 | 77.12 | 03/04/2023 | 03:36:08 | 70.54, 122.05 | 77.14 | 3.53 | 19 |
| 15 | 03/04/2023 | 04:26:55 | -69.68, -69.42 | 103.78 | 03/04/2023 | 04:25:47 | -69.76, -71.41 | 103.62 | 77.38 | 68 |
| 16 | 03/06/2023 | 15:39:37 | -70.63, 121.03 | 103.75 | 03/06/2023 | 15:40:35 | -70.65, 121.06 | 103.74 | 2.46 | 58 |
| 17 | 03/06/2023 | 16:30:21 | 70.53, -71.49 | 76.14 | 03/06/2023 | 16:29:58 | 70.50, -71.48 | 76.12 | 2.51 | 23 |

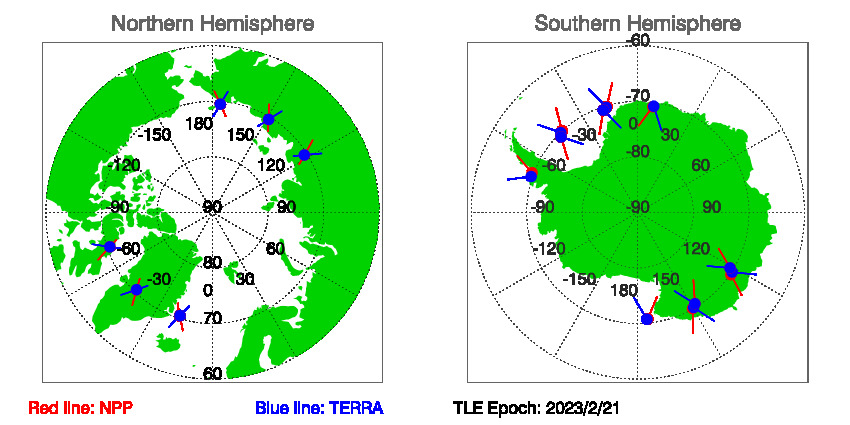

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 2/21/2023
Download SNOs between NPP and TERRA since TLE EPOCH: 02/21/2023 in txt file.
Historial Predications of SNOs between NPP and TERRA
