Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/16/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 09/18/2022 | 15:58:00 | 70.08, -63.06 | 68.29 | 09/18/2022 | 15:59:11 | 70.05, -62.90 | 68.25 | 7.12 | 71 |
2 | 09/18/2022 | 16:48:40 | -69.88, 104.55 | 111.90 | 09/18/2022 | 16:48:42 | -69.88, 104.50 | 111.91 | 2.00 | 2 |
3 | 09/18/2022 | 17:39:23 | 69.71, -87.89 | 67.94 | 09/18/2022 | 17:38:10 | 69.71, -88.08 | 67.94 | 7.61 | 73 |
4 | 09/21/2022 | 08:14:54 | 69.97, 52.86 | 69.22 | 09/21/2022 | 08:15:35 | 69.95, 52.85 | 69.19 | 2.49 | 41 |
5 | 09/21/2022 | 09:05:35 | -69.83,-139.60 | 110.92 | 09/21/2022 | 09:05:05 | -69.84,-139.67 | 110.91 | 3.06 | 30 |
6 | 09/23/2022 | 23:41:14 | -70.51, 0.49 | 109.21 | 09/23/2022 | 23:42:24 | -70.40, 1.72 | 109.34 | 47.65 | 70 |
7 | 09/24/2022 | 00:31:49 | 69.93, 168.70 | 70.21 | 09/24/2022 | 00:31:57 | 69.95, 168.74 | 70.23 | 2.74 | 8 |
8 | 09/24/2022 | 01:22:31 | -69.83, -23.84 | 109.88 | 09/24/2022 | 01:21:27 | -69.84, -23.78 | 109.87 | 2.45 | 64 |
9 | 09/26/2022 | 15:57:59 | -70.00, 117.06 | 108.70 | 09/26/2022 | 15:58:52 | -70.00, 117.04 | 108.70 | 0.87 | 53 |
10 | 09/26/2022 | 16:48:43 | 69.89, -75.47 | 71.21 | 09/26/2022 | 16:48:19 | 69.88, -75.48 | 71.20 | 1.48 | 24 |
11 | 09/26/2022 | 17:39:10 | -69.00, 93.13 | 109.68 | 09/26/2022 | 17:38:02 | -69.05, 91.06 | 109.61 | 82.83 | 68 |
12 | 09/29/2022 | 07:24:25 | 70.75, 64.33 | 73.10 | 09/29/2022 | 07:25:33 | 70.67, 66.27 | 73.01 | 71.64 | 68 |
13 | 09/29/2022 | 08:14:54 | -69.96,-127.11 | 107.69 | 09/29/2022 | 08:15:14 | -69.96,-127.12 | 107.69 | 0.59 | 20 |
14 | 09/29/2022 | 09:05:38 | 69.86, 40.35 | 72.22 | 09/29/2022 | 09:04:41 | 69.84, 40.36 | 72.20 | 1.64 | 57 |

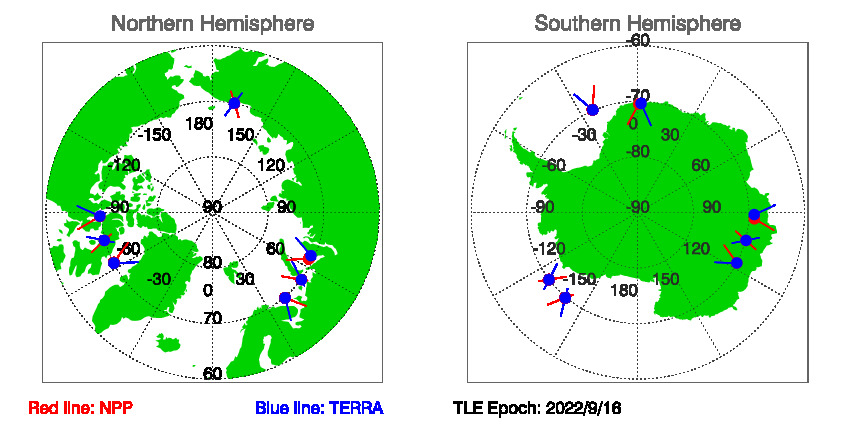

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 9/16/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 09/16/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
