Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/9/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 09/10/2022 | 15:58:12 | -70.89, 115.66 | 113.94 | 09/10/2022 | 15:59:18 | -70.78, 118.17 | 114.09 | 92.46 | 66 |
2 | 09/10/2022 | 16:48:39 | 69.88, -75.44 | 65.03 | 09/10/2022 | 16:48:59 | 69.91, -75.45 | 65.06 | 3.48 | 20 |
3 | 09/10/2022 | 17:39:20 | -69.79, 92.01 | 115.05 | 09/10/2022 | 17:38:28 | -69.80, 92.03 | 115.04 | 1.16 | 52 |
4 | 09/13/2022 | 08:14:50 | -69.98,-127.13 | 113.86 | 09/13/2022 | 08:15:55 | -69.99,-127.11 | 113.86 | 1.16 | 65 |
5 | 09/13/2022 | 09:05:34 | 69.86, 40.35 | 66.04 | 09/13/2022 | 09:05:22 | 69.87, 40.38 | 66.04 | 1.22 | 12 |
6 | 09/13/2022 | 09:56:09 | -69.40,-151.65 | 114.43 | 09/13/2022 | 09:54:57 | -69.49,-152.51 | 114.33 | 34.73 | 72 |
7 | 09/16/2022 | 00:31:45 | -69.91, -11.26 | 112.91 | 09/16/2022 | 00:32:19 | -69.94, -11.30 | 112.88 | 3.03 | 34 |
8 | 09/16/2022 | 01:22:29 | 69.80, 156.21 | 67.00 | 09/16/2022 | 01:21:46 | 69.82, 156.19 | 67.02 | 2.23 | 43 |
9 | 09/18/2022 | 15:58:00 | 70.06, -63.03 | 68.27 | 09/18/2022 | 15:59:12 | 70.03, -62.91 | 68.24 | 5.07 | 72 |
10 | 09/18/2022 | 16:48:41 | -69.90, 104.52 | 111.88 | 09/18/2022 | 16:48:43 | -69.88, 104.50 | 111.91 | 3.38 | 2 |
11 | 09/18/2022 | 17:39:23 | 69.69, -87.85 | 67.92 | 09/18/2022 | 17:38:11 | 69.70, -88.10 | 67.93 | 9.43 | 72 |
12 | 09/21/2022 | 08:14:54 | 69.95, 52.90 | 69.19 | 09/21/2022 | 08:15:36 | 69.96, 52.86 | 69.20 | 1.68 | 42 |
13 | 09/21/2022 | 09:05:36 | -69.85,-139.63 | 110.90 | 09/21/2022 | 09:05:06 | -69.85,-139.65 | 110.90 | 0.92 | 30 |

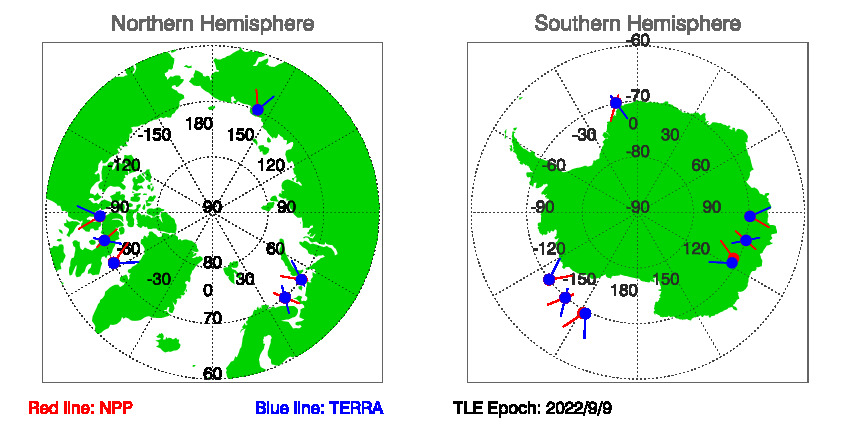

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 9/9/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 09/09/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
