Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NPP and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/26/2022
Index Date (NPP) Time (NPP) Lat,Lon (NPP) SZA (NPP ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 08/28/2022 09:05:27 69.85, 40.39 60.13 08/28/2022 09:05:54 69.84, 40.36 60.12 1.52 27
2 08/28/2022 09:56:09 -69.76,-152.16 119.95 08/28/2022 09:55:24 -69.73,-152.15 119.98 3.42 45
3 08/31/2022 00:31:39 -69.98, -11.35 118.80 08/31/2022 00:32:50 -69.99, -11.21 118.81 5.50 71
4 08/31/2022 01:22:22 69.82, 156.21 61.05 08/31/2022 01:22:18 69.81, 156.20 61.04 0.48 4
5 08/31/2022 02:13:02 -69.62, -36.18 119.15 08/31/2022 02:11:49 -69.65, -36.38 119.11 8.76 73
6 09/02/2022 16:48:34 -69.90, 104.55 117.92 09/02/2022 16:49:16 -69.90, 104.55 117.92 0.44 42
7 09/02/2022 17:39:18 69.78, -87.97 61.98 09/02/2022 17:38:43 69.78, -87.97 61.98 0.50 35
8 09/05/2022 08:14:55 70.33, 52.33 63.50 09/05/2022 08:16:06 70.23, 53.26 63.38 36.39 71
9 09/05/2022 09:05:30 -69.86,-139.63 116.98 09/05/2022 09:05:41 -69.86,-139.63 116.98 0.09 11
10 09/05/2022 09:56:14 69.75, 27.84 62.93 09/05/2022 09:55:08 69.74, 27.84 62.92 1.75 66
11 09/08/2022 00:31:44 69.93, 168.71 64.08 09/08/2022 00:32:36 69.91, 168.68 64.06 2.64 52
12 09/08/2022 01:22:26 -69.83, -23.82 116.01 09/08/2022 01:22:06 -69.81, -23.82 116.03 1.73 20
13 09/08/2022 02:12:54 68.87, 144.86 63.02 09/08/2022 02:11:47 68.91, 142.64 63.11 88.91 67

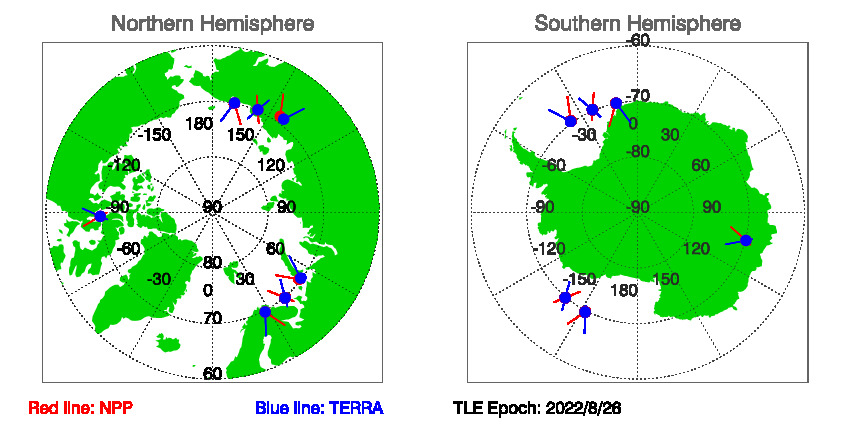

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/26/2022

Download SNOs between NPP and TERRA since TLE EPOCH: 08/26/2022 in txt file.

Historial Predications of SNOs between NPP and TERRA
