Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/17/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 08/17/2022 | 16:48:28 | -70.09, 104.29 | 123.21 | 08/17/2022 | 16:49:40 | -69.99, 104.71 | 123.34 | 19.67 | 72 |
2 | 08/17/2022 | 17:39:08 | 69.75, -87.90 | 56.45 | 08/17/2022 | 17:39:09 | 69.77, -87.95 | 56.47 | 2.29 | 1 |
3 | 08/17/2022 | 18:29:50 | -69.67, 79.54 | 123.63 | 08/17/2022 | 18:28:39 | -69.66, 79.54 | 123.63 | 1.49 | 71 |
4 | 08/20/2022 | 09:05:21 | -69.88,-139.63 | 122.56 | 08/20/2022 | 09:06:07 | -69.89,-139.56 | 122.57 | 2.89 | 46 |
5 | 08/20/2022 | 09:56:04 | 69.71, 27.93 | 57.27 | 08/20/2022 | 09:55:35 | 69.72, 27.86 | 57.29 | 3.06 | 29 |
6 | 08/23/2022 | 00:31:46 | 70.51, 167.84 | 58.98 | 08/23/2022 | 00:32:55 | 70.37, 169.36 | 58.79 | 58.83 | 69 |
7 | 08/23/2022 | 01:22:17 | -69.84, -23.80 | 121.72 | 08/23/2022 | 01:22:33 | -69.82, -23.77 | 121.74 | 1.86 | 16 |
8 | 08/23/2022 | 02:13:01 | 69.72, 143.68 | 58.18 | 08/23/2022 | 02:12:00 | 69.71, 143.71 | 58.17 | 2.07 | 61 |
9 | 08/25/2022 | 16:48:31 | 69.89, -75.44 | 59.24 | 08/25/2022 | 16:49:28 | 69.90, -75.42 | 59.25 | 1.51 | 57 |
10 | 08/25/2022 | 17:39:13 | -69.80, 92.02 | 120.85 | 08/25/2022 | 17:38:58 | -69.80, 92.07 | 120.84 | 2.09 | 15 |
11 | 08/25/2022 | 18:29:45 | 69.04, -99.59 | 58.39 | 08/25/2022 | 18:28:36 | 69.07,-101.25 | 58.47 | 65.93 | 69 |
12 | 08/28/2022 | 09:05:26 | 69.86, 40.38 | 60.14 | 08/28/2022 | 09:05:52 | 69.87, 40.40 | 60.14 | 1.22 | 26 |
13 | 08/28/2022 | 09:56:08 | -69.76,-152.16 | 119.95 | 08/28/2022 | 09:55:22 | -69.77,-152.10 | 119.94 | 2.45 | 46 |
14 | 08/31/2022 | 00:31:38 | -69.94, -11.28 | 118.84 | 08/31/2022 | 00:32:50 | -69.94, -11.26 | 118.85 | 0.90 | 72 |
15 | 08/31/2022 | 01:22:22 | 69.83, 156.19 | 61.06 | 08/31/2022 | 01:22:17 | 69.81, 156.21 | 61.04 | 2.19 | 5 |
16 | 08/31/2022 | 02:13:01 | -69.57, -36.11 | 119.20 | 08/31/2022 | 02:11:49 | -69.61, -36.44 | 119.15 | 13.18 | 72 |

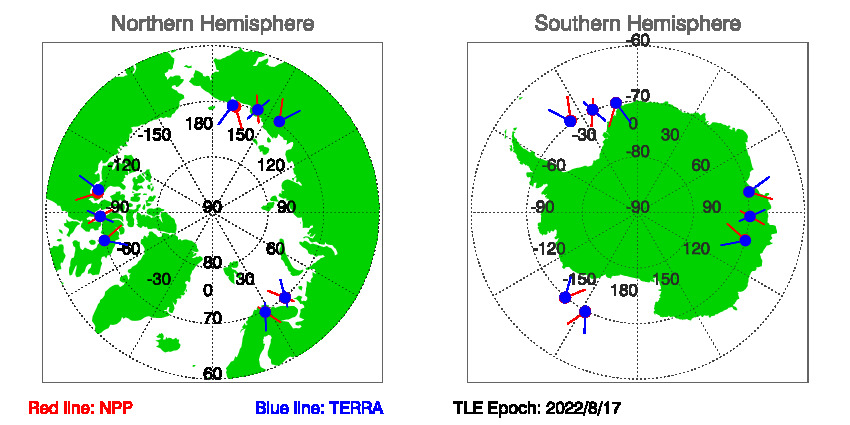

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/17/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 08/17/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
