Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/12/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 08/12/2022 | 09:05:16 | 69.83, 40.45 | 54.88 | 08/12/2022 | 09:06:17 | 69.86, 40.44 | 54.90 | 3.49 | 61 |
2 | 08/12/2022 | 09:55:58 | -69.75,-152.10 | 125.21 | 08/12/2022 | 09:55:47 | -69.75,-152.08 | 125.21 | 0.92 | 11 |
3 | 08/12/2022 | 10:46:32 | 69.09, 16.15 | 54.12 | 08/12/2022 | 10:45:23 | 69.14, 14.76 | 54.23 | 55.19 | 69 |
4 | 08/15/2022 | 01:22:13 | 69.83, 156.22 | 55.69 | 08/15/2022 | 01:22:43 | 69.84, 156.28 | 55.69 | 2.47 | 30 |
5 | 08/15/2022 | 02:12:54 | -69.69, -36.25 | 124.45 | 08/15/2022 | 02:12:14 | -69.67, -36.31 | 124.46 | 2.71 | 40 |
6 | 08/17/2022 | 16:48:29 | -70.11, 104.26 | 123.19 | 08/17/2022 | 16:49:40 | -70.03, 104.77 | 123.30 | 21.10 | 71 |
7 | 08/17/2022 | 17:39:09 | 69.78, -87.94 | 56.48 | 08/17/2022 | 17:39:09 | 69.80, -87.90 | 56.50 | 3.24 | 0 |
8 | 08/17/2022 | 18:29:50 | -69.63, 79.59 | 123.66 | 08/17/2022 | 18:28:40 | -69.64, 79.52 | 123.65 | 3.08 | 70 |
9 | 08/20/2022 | 09:05:21 | -69.84,-139.58 | 122.60 | 08/20/2022 | 09:06:09 | -69.82,-139.65 | 122.63 | 3.53 | 48 |
10 | 08/20/2022 | 09:56:05 | 69.73, 27.90 | 57.30 | 08/20/2022 | 09:55:35 | 69.76, 27.91 | 57.32 | 2.99 | 30 |
11 | 08/23/2022 | 00:31:46 | 70.53, 167.81 | 59.00 | 08/23/2022 | 00:32:54 | 70.42, 169.43 | 58.83 | 61.59 | 68 |
12 | 08/23/2022 | 01:22:16 | -69.80, -23.74 | 121.76 | 08/23/2022 | 01:22:33 | -69.82, -23.77 | 121.74 | 3.13 | 17 |
13 | 08/23/2022 | 02:13:00 | 69.69, 143.73 | 58.14 | 08/23/2022 | 02:12:00 | 69.70, 143.70 | 58.16 | 1.70 | 60 |
14 | 08/25/2022 | 16:48:31 | 69.91, -75.46 | 59.26 | 08/25/2022 | 16:49:28 | 69.91, -75.42 | 59.25 | 1.65 | 57 |
15 | 08/25/2022 | 17:39:13 | -69.81, 92.01 | 120.84 | 08/25/2022 | 17:38:58 | -69.81, 92.08 | 120.84 | 2.97 | 15 |
16 | 08/25/2022 | 18:29:45 | 69.06, -99.61 | 58.41 | 08/25/2022 | 18:28:36 | 69.07,-101.24 | 58.47 | 64.89 | 69 |

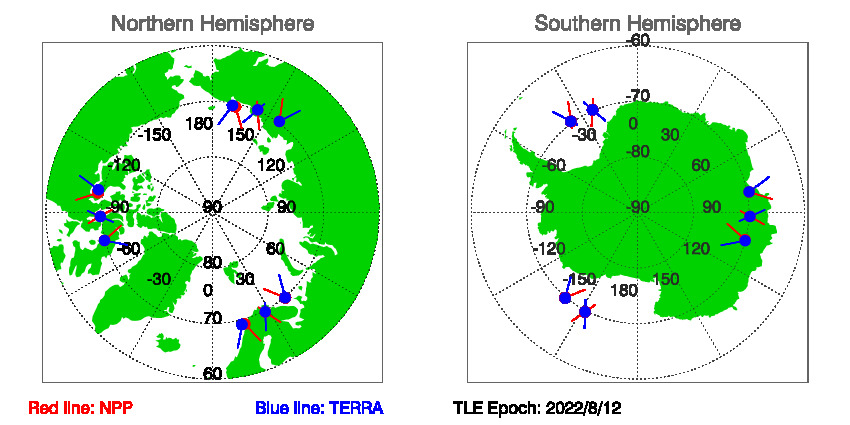

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/12/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 08/12/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
