Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/18/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 07/19/2022 | 09:55:41 | 69.77, 27.92 | 48.94 | 07/19/2022 | 09:56:29 | 69.76, 27.97 | 48.91 | 2.34 | 48 |
2 | 07/19/2022 | 10:46:22 | -69.63,-164.55 | 131.21 | 07/19/2022 | 10:45:59 | -69.64,-164.55 | 131.20 | 0.71 | 23 |
3 | 07/22/2022 | 01:22:06 | -70.49, -24.73 | 129.80 | 07/22/2022 | 01:23:14 | -70.39, -22.90 | 129.98 | 69.21 | 68 |
4 | 07/22/2022 | 02:12:37 | 69.69, 143.81 | 49.36 | 07/22/2022 | 02:12:52 | 69.67, 143.75 | 49.35 | 2.83 | 15 |
5 | 07/22/2022 | 03:03:19 | -69.60, -48.74 | 130.73 | 07/22/2022 | 03:02:21 | -69.61, -48.70 | 130.71 | 2.29 | 58 |
6 | 07/24/2022 | 17:38:50 | -69.78, 92.13 | 130.00 | 07/24/2022 | 17:39:46 | -69.80, 92.16 | 129.99 | 2.64 | 56 |
7 | 07/24/2022 | 18:29:34 | 69.66,-100.39 | 49.88 | 07/24/2022 | 18:29:13 | 69.68,-100.35 | 49.91 | 3.10 | 21 |
8 | 07/24/2022 | 19:20:03 | -68.88, 68.03 | 130.93 | 07/24/2022 | 19:18:54 | -68.96, 66.34 | 130.77 | 68.25 | 69 |
9 | 07/27/2022 | 09:05:18 | 70.59, 39.32 | 51.43 | 07/27/2022 | 09:06:25 | 70.51, 41.43 | 51.28 | 78.58 | 67 |
10 | 07/27/2022 | 09:55:46 | -69.75,-152.07 | 129.44 | 07/27/2022 | 09:56:07 | -69.74,-152.02 | 129.46 | 2.16 | 21 |
11 | 07/27/2022 | 10:46:30 | 69.64, 15.41 | 50.45 | 07/27/2022 | 10:45:34 | 69.62, 15.46 | 50.44 | 2.66 | 56 |
12 | 07/30/2022 | 01:22:00 | 69.78, 156.34 | 51.21 | 07/30/2022 | 01:22:59 | 69.78, 156.28 | 51.20 | 2.04 | 59 |
13 | 07/30/2022 | 02:12:42 | -69.68, -36.20 | 128.89 | 07/30/2022 | 02:12:29 | -69.67, -36.23 | 128.90 | 1.30 | 13 |
14 | 07/30/2022 | 03:03:15 | 68.98, 132.10 | 50.39 | 07/30/2022 | 03:02:06 | 68.99, 130.53 | 50.47 | 62.50 | 69 |

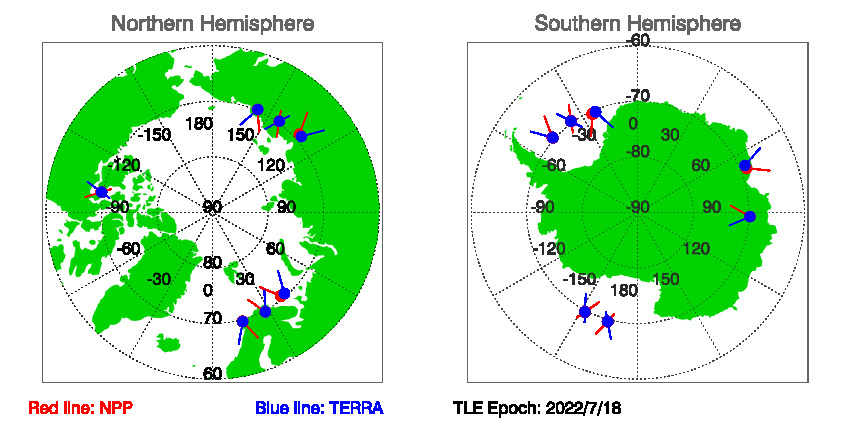

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/18/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 07/18/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
