Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/4/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 07/06/2022 | 02:12:23 | 69.75, 143.77 | 47.01 | 07/06/2022 | 02:13:32 | 69.76, 143.83 | 47.01 | 2.34 | 69 |
2 | 07/06/2022 | 03:03:04 | -69.61, -48.70 | 133.13 | 07/06/2022 | 03:03:02 | -69.64, -48.70 | 133.11 | 3.31 | 2 |
3 | 07/06/2022 | 03:53:45 | 69.33, 119.01 | 46.58 | 07/06/2022 | 03:52:32 | 69.36, 118.58 | 46.64 | 17.30 | 73 |
4 | 07/08/2022 | 18:29:19 | 69.70,-100.39 | 47.25 | 07/08/2022 | 18:29:55 | 69.69,-100.37 | 47.24 | 0.72 | 36 |
5 | 07/08/2022 | 19:20:00 | -69.55, 67.14 | 132.90 | 07/08/2022 | 19:19:25 | -69.58, 67.11 | 132.87 | 3.26 | 35 |
6 | 07/11/2022 | 09:55:37 | -70.03,-152.43 | 132.07 | 07/11/2022 | 09:56:49 | -69.90,-151.85 | 132.23 | 26.13 | 72 |
7 | 07/11/2022 | 10:46:16 | 69.65, 15.44 | 47.54 | 07/11/2022 | 10:46:19 | 69.62, 15.42 | 47.52 | 2.71 | 3 |
8 | 07/11/2022 | 11:36:57 | -69.50,-177.03 | 132.61 | 07/11/2022 | 11:35:49 | -69.51,-177.10 | 132.59 | 3.19 | 68 |
9 | 07/14/2022 | 02:12:29 | -69.71, -36.20 | 132.02 | 07/14/2022 | 02:13:15 | -69.72, -36.22 | 132.02 | 0.86 | 46 |
10 | 07/14/2022 | 03:03:13 | 69.60, 131.27 | 47.87 | 07/14/2022 | 03:02:42 | 69.60, 131.27 | 47.88 | 0.26 | 31 |
11 | 07/16/2022 | 17:38:52 | 70.19, -88.48 | 48.91 | 07/16/2022 | 17:40:02 | 70.13, -87.41 | 48.80 | 41.08 | 70 |
12 | 07/16/2022 | 18:29:26 | -69.67, 79.63 | 131.64 | 07/16/2022 | 18:29:38 | -69.69, 79.62 | 131.62 | 2.46 | 12 |
13 | 07/16/2022 | 19:20:10 | 69.56,-112.90 | 48.26 | 07/16/2022 | 19:19:05 | 69.57,-112.89 | 48.28 | 1.43 | 65 |

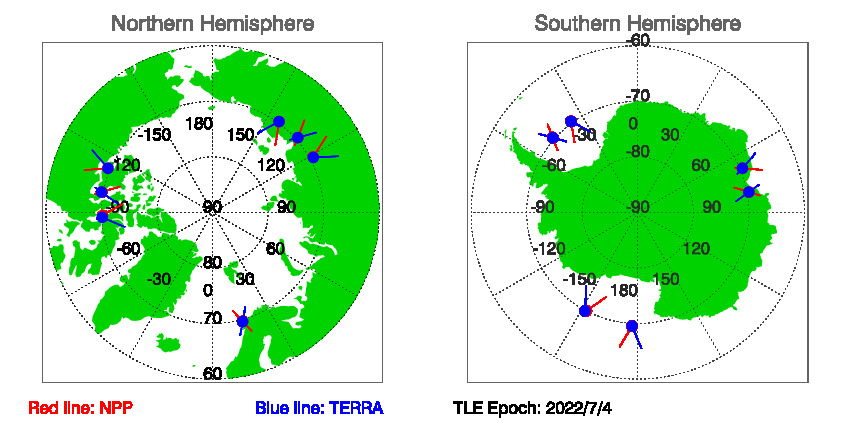

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/4/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 07/04/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
