Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/30/2022
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 06/30/2022 | 18:29:10 | -69.69, 79.65 | 133.49 | 06/30/2022 | 18:30:15 | -69.71, 79.64 | 133.49 | 2.15 | 65 |
2 | 06/30/2022 | 19:19:55 | 69.62,-112.94 | 46.44 | 06/30/2022 | 19:19:42 | 69.61,-112.86 | 46.42 | 3.45 | 13 |
3 | 06/30/2022 | 20:10:29 | -69.11, 55.11 | 134.09 | 06/30/2022 | 20:09:18 | -69.16, 54.18 | 134.01 | 37.05 | 71 |
4 | 07/03/2022 | 10:46:07 | -69.68,-164.57 | 133.30 | 07/03/2022 | 10:46:38 | -69.67,-164.53 | 133.32 | 1.99 | 31 |
5 | 07/03/2022 | 11:36:51 | 69.56, 2.91 | 46.58 | 07/03/2022 | 11:36:05 | 69.56, 2.96 | 46.58 | 2.10 | 46 |
6 | 07/06/2022 | 02:12:22 | 69.72, 143.82 | 46.98 | 07/06/2022 | 02:13:32 | 69.74, 143.80 | 46.99 | 2.33 | 70 |
7 | 07/06/2022 | 03:03:04 | -69.62, -48.73 | 133.12 | 07/06/2022 | 03:03:02 | -69.62, -48.72 | 133.12 | 0.43 | 2 |
8 | 07/06/2022 | 03:53:44 | 69.29, 119.06 | 46.54 | 07/06/2022 | 03:52:32 | 69.34, 118.56 | 46.62 | 20.46 | 72 |
9 | 07/08/2022 | 18:29:19 | 69.66,-100.34 | 47.22 | 07/08/2022 | 18:29:56 | 69.68,-100.40 | 47.22 | 2.60 | 37 |
10 | 07/08/2022 | 19:20:01 | -69.57, 67.11 | 132.88 | 07/08/2022 | 19:19:26 | -69.57, 67.09 | 132.88 | 1.04 | 35 |
11 | 07/11/2022 | 09:55:38 | -70.04,-152.46 | 132.06 | 07/11/2022 | 09:56:49 | -69.94,-151.79 | 132.19 | 27.41 | 71 |
12 | 07/11/2022 | 10:46:17 | 69.67, 15.41 | 47.56 | 07/11/2022 | 10:46:19 | 69.66, 15.46 | 47.55 | 1.98 | 2 |
13 | 07/11/2022 | 11:36:58 | -69.51,-177.05 | 132.60 | 07/11/2022 | 11:35:50 | -69.50,-177.12 | 132.60 | 3.28 | 68 |

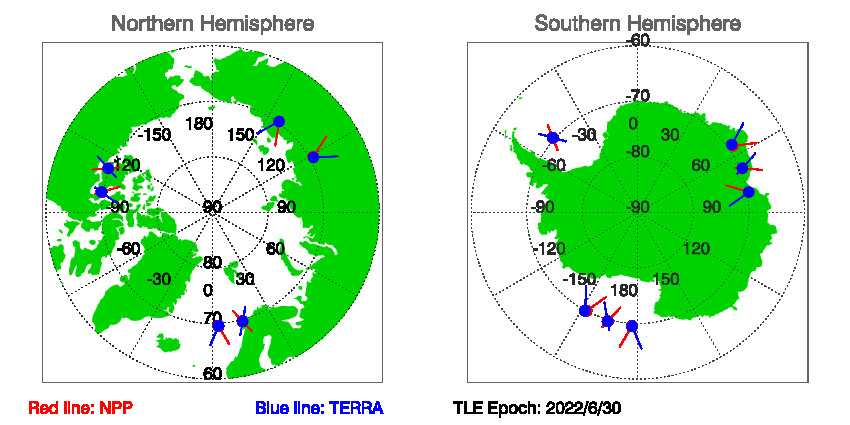

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/30/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 06/30/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
