Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/15/2022
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/17/2022 | 10:45:55 | -69.98,-164.95 | 133.46 | 06/17/2022 | 10:47:07 | -69.87,-164.26 | 133.60 | 29.08 | 72 |
| 2 | 06/17/2022 | 11:36:33 | 69.54, 3.01 | 46.08 | 06/17/2022 | 11:36:38 | 69.54, 2.94 | 46.08 | 2.85 | 5 |
| 3 | 06/17/2022 | 12:27:15 | -69.45, 170.46 | 134.01 | 06/17/2022 | 12:26:07 | -69.48, 170.49 | 133.98 | 3.18 | 68 |
| 4 | 06/20/2022 | 03:02:46 | -69.64, -48.68 | 133.86 | 06/20/2022 | 03:03:34 | -69.66, -48.66 | 133.84 | 3.08 | 48 |
| 5 | 06/20/2022 | 03:53:30 | 69.52, 118.80 | 46.02 | 06/20/2022 | 03:53:02 | 69.50, 118.76 | 46.00 | 2.79 | 28 |
| 6 | 06/20/2022 | 04:43:54 | -68.47, -72.44 | 135.07 | 06/20/2022 | 04:42:48 | -68.50, -74.87 | 134.97 | 99.41 | 66 |
| 7 | 06/22/2022 | 18:29:12 | 70.24,-101.15 | 46.77 | 06/22/2022 | 18:30:21 | 70.16, -99.73 | 46.65 | 54.23 | 69 |
| 8 | 06/22/2022 | 19:19:44 | -69.62, 67.11 | 133.88 | 06/22/2022 | 19:19:59 | -69.61, 67.14 | 133.89 | 1.54 | 15 |
| 9 | 06/22/2022 | 20:10:28 | 69.50,-125.41 | 46.00 | 06/22/2022 | 20:09:26 | 69.49,-125.37 | 46.00 | 2.02 | 62 |
| 10 | 06/25/2022 | 10:45:59 | 69.65, 15.51 | 46.21 | 06/25/2022 | 10:46:54 | 69.64, 15.43 | 46.20 | 2.83 | 55 |
| 11 | 06/25/2022 | 11:36:41 | -69.55,-177.03 | 133.90 | 06/25/2022 | 11:36:24 | -69.54,-177.08 | 133.91 | 2.06 | 17 |
| 12 | 06/25/2022 | 12:27:11 | 68.69, -8.53 | 45.22 | 06/25/2022 | 12:26:03 | 68.75, -10.44 | 45.34 | 77.56 | 68 |
| 13 | 06/28/2022 | 02:12:30 | -70.64, -37.58 | 132.65 | 06/28/2022 | 02:13:36 | -70.55, -35.05 | 132.82 | 93.82 | 66 |
| 14 | 06/28/2022 | 03:02:57 | 69.64, 131.28 | 46.30 | 06/28/2022 | 03:03:17 | 69.66, 131.34 | 46.32 | 3.37 | 20 |
| 15 | 06/28/2022 | 03:53:38 | -69.49, -61.18 | 133.86 | 06/28/2022 | 03:52:48 | -69.50, -61.24 | 133.84 | 2.89 | 50 |

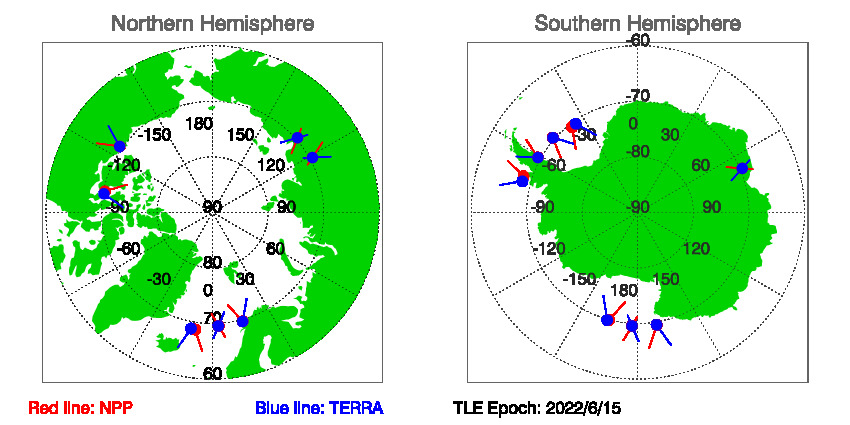

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/15/2022
Download SNOs between NPP and TERRA since TLE EPOCH: 06/15/2022 in txt file.
Historial Predications of SNOs between NPP and TERRA
