Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/19/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 09/21/2021 | 07:17:14 | 68.87, 68.70 | 68.18 | 09/21/2021 | 07:18:14 | 68.87, 68.66 | 68.17 | 1.59 | 60 |
2 | 09/21/2021 | 08:07:56 | -68.78,-123.86 | 111.91 | 09/21/2021 | 08:07:44 | -68.76,-123.84 | 111.93 | 2.46 | 12 |
3 | 09/21/2021 | 08:58:30 | 68.12, 44.31 | 67.45 | 09/21/2021 | 08:57:20 | 68.14, 43.06 | 67.47 | 51.79 | 70 |
4 | 09/23/2021 | 23:34:08 | 68.81,-175.45 | 69.16 | 09/23/2021 | 23:34:40 | 68.83,-175.50 | 69.18 | 3.07 | 32 |
5 | 09/24/2021 | 00:24:50 | -68.72, -8.00 | 110.93 | 09/24/2021 | 00:24:10 | -68.73, -8.00 | 110.92 | 1.09 | 40 |
6 | 09/26/2021 | 15:00:25 | -69.18, 132.50 | 109.44 | 09/26/2021 | 15:01:37 | -69.08, 133.04 | 109.55 | 24.65 | 72 |
7 | 09/26/2021 | 15:51:04 | 68.81, -59.67 | 70.20 | 09/26/2021 | 15:51:07 | 68.79, -59.67 | 70.18 | 1.82 | 3 |
8 | 09/26/2021 | 16:41:46 | -68.71, 107.78 | 109.89 | 09/26/2021 | 16:40:37 | -68.69, 107.84 | 109.91 | 3.21 | 69 |
9 | 09/29/2021 | 07:17:15 | -68.86,-111.28 | 108.72 | 09/29/2021 | 07:18:07 | -68.87,-111.34 | 108.71 | 2.52 | 52 |
10 | 09/29/2021 | 08:07:59 | 68.75, 56.17 | 71.19 | 09/29/2021 | 08:07:34 | 68.75, 56.15 | 71.18 | 0.84 | 25 |
11 | 09/29/2021 | 08:58:26 | -67.85,-135.34 | 109.70 | 09/29/2021 | 08:57:18 | -67.87,-137.26 | 109.69 | 80.49 | 68 |
12 | 10/01/2021 | 22:43:44 | 69.76,-164.11 | 73.22 | 10/01/2021 | 22:44:51 | 69.65,-162.08 | 73.10 | 79.33 | 67 |
13 | 10/01/2021 | 23:34:11 | -68.86, 4.49 | 107.68 | 10/01/2021 | 23:34:34 | -68.83, 4.49 | 107.72 | 3.39 | 23 |
14 | 10/02/2021 | 00:24:54 | 68.70, 172.01 | 72.18 | 10/02/2021 | 00:24:01 | 68.70, 171.98 | 72.17 | 1.48 | 53 |

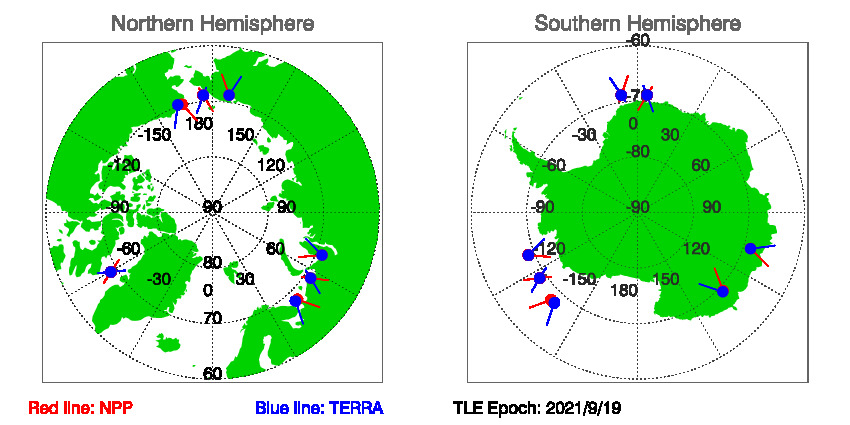

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 9/19/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 09/19/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
