Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/10/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 07/11/2021 | 08:07:34 | 69.69, 54.94 | 47.61 | 07/11/2021 | 08:08:40 | 69.61, 57.29 | 47.45 | 91.78 | 66 |
2 | 07/11/2021 | 08:57:58 | -68.65,-136.29 | 133.47 | 07/11/2021 | 08:58:25 | -68.66,-136.29 | 133.47 | 1.21 | 27 |
3 | 07/11/2021 | 09:48:42 | 68.52, 31.19 | 46.40 | 07/11/2021 | 09:47:53 | 68.49, 31.15 | 46.38 | 3.35 | 49 |
4 | 07/14/2021 | 00:24:13 | 68.72, 172.07 | 46.98 | 07/14/2021 | 00:25:22 | 68.71, 172.02 | 46.96 | 2.29 | 69 |
5 | 07/14/2021 | 01:14:54 | -68.58, -20.43 | 133.16 | 07/14/2021 | 01:14:52 | -68.60, -20.48 | 133.14 | 2.86 | 2 |
6 | 07/14/2021 | 02:05:34 | 68.24, 147.32 | 46.50 | 07/14/2021 | 02:04:22 | 68.32, 146.82 | 46.59 | 22.47 | 72 |
7 | 07/16/2021 | 16:41:10 | 68.71, -72.15 | 47.40 | 07/16/2021 | 16:41:48 | 68.70, -72.12 | 47.38 | 1.98 | 38 |
8 | 07/16/2021 | 17:31:51 | -68.57, 95.35 | 132.74 | 07/16/2021 | 17:31:18 | -68.59, 95.39 | 132.72 | 2.95 | 33 |
9 | 07/19/2021 | 08:07:31 | -69.25,-124.43 | 131.58 | 07/19/2021 | 08:08:41 | -69.13,-123.33 | 131.73 | 45.49 | 70 |
10 | 07/19/2021 | 08:58:06 | 68.64, 43.70 | 47.80 | 07/19/2021 | 08:58:15 | 68.62, 43.67 | 47.78 | 2.68 | 9 |
11 | 07/19/2021 | 09:48:47 | -68.50,-148.80 | 132.34 | 07/19/2021 | 09:47:45 | -68.52,-148.82 | 132.32 | 2.10 | 62 |
12 | 07/22/2021 | 00:24:17 | -68.70, -7.92 | 131.63 | 07/22/2021 | 00:25:13 | -68.72, -7.97 | 131.62 | 2.81 | 56 |
13 | 07/22/2021 | 01:15:01 | 68.58, 159.55 | 48.25 | 07/22/2021 | 01:14:40 | 68.60, 159.53 | 48.27 | 2.09 | 21 |
14 | 07/22/2021 | 02:05:31 | -67.85, -32.20 | 132.50 | 07/22/2021 | 02:04:21 | -67.88, -33.69 | 132.41 | 62.56 | 70 |

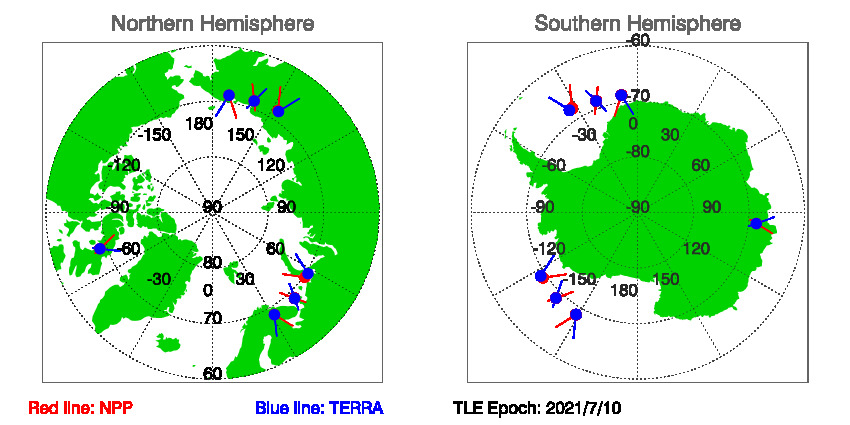

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/10/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 07/10/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
