Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/3/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 07/03/2021 | 08:57:53 | 68.63, 43.75 | 45.63 | 07/03/2021 | 08:58:33 | 68.64, 43.68 | 45.63 | 2.81 | 40 |
2 | 07/03/2021 | 09:48:35 | -68.55,-148.82 | 134.46 | 07/03/2021 | 09:48:03 | -68.53,-148.82 | 134.48 | 2.05 | 32 |
3 | 07/06/2021 | 00:24:15 | -69.22, -8.60 | 133.52 | 07/06/2021 | 00:25:25 | -69.15, -7.44 | 133.63 | 46.65 | 70 |
4 | 07/06/2021 | 01:14:50 | 68.62, 159.53 | 45.86 | 07/06/2021 | 01:15:00 | 68.59, 159.51 | 45.83 | 2.98 | 10 |
5 | 07/06/2021 | 02:05:31 | -68.48, -32.97 | 134.28 | 07/06/2021 | 02:04:30 | -68.48, -32.99 | 134.27 | 1.32 | 61 |
6 | 07/08/2021 | 16:41:03 | -68.73, 107.84 | 133.74 | 07/08/2021 | 16:41:59 | -68.71, 107.89 | 133.76 | 2.75 | 56 |
7 | 07/08/2021 | 17:31:46 | 68.55, -84.61 | 46.09 | 07/08/2021 | 17:31:27 | 68.54, -84.68 | 46.08 | 3.10 | 19 |
8 | 07/08/2021 | 18:22:16 | -67.82, 83.64 | 134.66 | 07/08/2021 | 18:21:07 | -67.88, 82.17 | 134.56 | 61.80 | 69 |
9 | 07/11/2021 | 08:07:35 | 69.71, 54.90 | 47.63 | 07/11/2021 | 08:08:41 | 69.59, 57.27 | 47.44 | 92.67 | 66 |
10 | 07/11/2021 | 08:57:59 | -68.66,-136.31 | 133.46 | 07/11/2021 | 08:58:26 | -68.65,-136.30 | 133.48 | 1.28 | 27 |
11 | 07/11/2021 | 09:48:43 | 68.54, 31.16 | 46.42 | 07/11/2021 | 09:47:53 | 68.53, 31.20 | 46.41 | 1.84 | 50 |
12 | 07/14/2021 | 00:24:13 | 68.75, 172.03 | 47.01 | 07/14/2021 | 00:25:21 | 68.74, 172.06 | 47.00 | 1.52 | 68 |
13 | 07/14/2021 | 01:14:54 | -68.60, -20.46 | 133.14 | 07/14/2021 | 01:14:52 | -68.59, -20.50 | 133.15 | 2.04 | 2 |
14 | 07/14/2021 | 02:05:34 | 68.27, 147.28 | 46.53 | 07/14/2021 | 02:04:22 | 68.30, 146.80 | 46.58 | 20.30 | 72 |
15 | 07/16/2021 | 16:41:09 | 68.69, -72.13 | 47.39 | 07/16/2021 | 16:41:48 | 68.67, -72.14 | 47.36 | 2.33 | 39 |
16 | 07/16/2021 | 17:31:50 | -68.55, 95.38 | 132.76 | 07/16/2021 | 17:31:18 | -68.58, 95.37 | 132.73 | 3.34 | 32 |

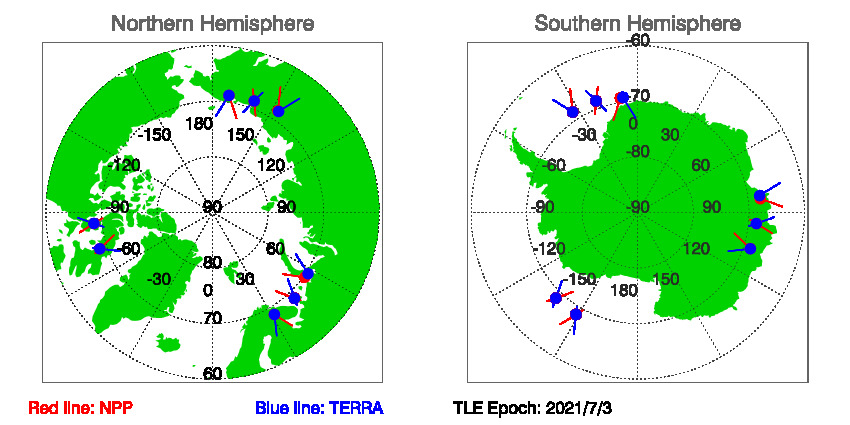

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/3/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 07/03/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
