Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/27/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 06/28/2021 | 00:24:18 | 69.66, 170.79 | 46.33 | 06/28/2021 | 00:25:24 | 69.58, 173.14 | 46.20 | 91.38 | 66 |
2 | 06/28/2021 | 01:14:42 | -68.61, -20.43 | 134.75 | 06/28/2021 | 01:15:09 | -68.64, -20.44 | 134.73 | 3.22 | 27 |
3 | 06/28/2021 | 02:05:26 | 68.48, 147.04 | 45.12 | 06/28/2021 | 02:04:37 | 68.47, 146.99 | 45.11 | 2.36 | 49 |
4 | 06/30/2021 | 16:40:58 | 68.73, -72.15 | 45.53 | 06/30/2021 | 16:42:06 | 68.71, -72.11 | 45.50 | 2.68 | 68 |
5 | 06/30/2021 | 17:31:39 | -68.59, 95.36 | 134.62 | 06/30/2021 | 17:31:36 | -68.60, 95.39 | 134.61 | 2.33 | 3 |
6 | 06/30/2021 | 18:22:19 | 68.25, -96.89 | 45.04 | 06/30/2021 | 18:21:06 | 68.32, -97.31 | 45.12 | 18.78 | 73 |
7 | 07/03/2021 | 08:57:54 | 68.66, 43.71 | 45.65 | 07/03/2021 | 08:58:33 | 68.67, 43.72 | 45.66 | 0.89 | 39 |
8 | 07/03/2021 | 09:48:35 | -68.52,-148.78 | 134.49 | 07/03/2021 | 09:48:04 | -68.51,-148.84 | 134.50 | 2.67 | 31 |
9 | 07/06/2021 | 00:24:16 | -69.24, -8.63 | 133.50 | 07/06/2021 | 00:25:26 | -69.13, -7.47 | 133.65 | 47.77 | 70 |
10 | 07/06/2021 | 01:14:50 | 68.59, 159.57 | 45.83 | 07/06/2021 | 01:15:00 | 68.62, 159.54 | 45.86 | 3.14 | 10 |
11 | 07/06/2021 | 02:05:32 | -68.50, -32.99 | 134.26 | 07/06/2021 | 02:04:30 | -68.52, -32.95 | 134.24 | 2.73 | 62 |
12 | 07/08/2021 | 16:41:02 | -68.70, 107.88 | 133.77 | 07/08/2021 | 16:41:59 | -68.69, 107.86 | 133.79 | 1.43 | 57 |
13 | 07/08/2021 | 17:31:46 | 68.58, -84.65 | 46.12 | 07/08/2021 | 17:31:26 | 68.56, -84.65 | 46.10 | 1.98 | 20 |
14 | 07/08/2021 | 18:22:16 | -67.84, 83.61 | 134.64 | 07/08/2021 | 18:21:06 | -67.91, 82.21 | 134.53 | 59.19 | 70 |

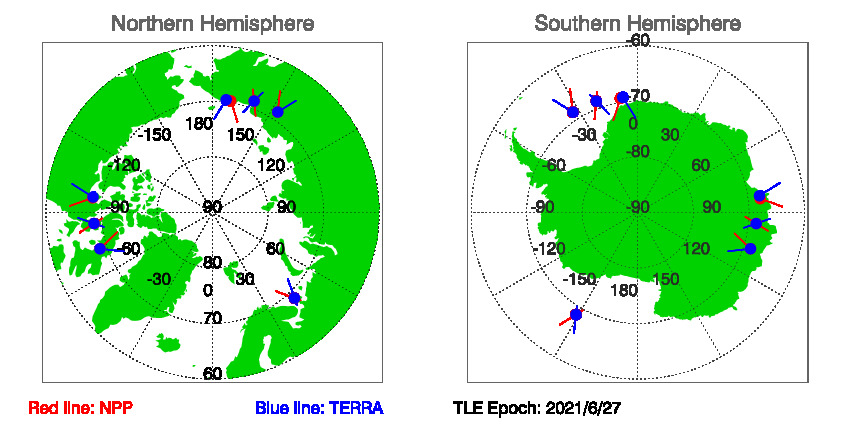

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/27/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 06/27/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
