Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/22/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 06/25/2021 | 08:57:47 | -68.69,-136.31 | 134.77 | 06/25/2021 | 08:58:43 | -68.66,-136.29 | 134.81 | 3.28 | 56 |
2 | 06/25/2021 | 09:48:31 | 68.57, 31.16 | 45.11 | 06/25/2021 | 09:48:10 | 68.55, 31.21 | 45.08 | 3.14 | 21 |
3 | 06/25/2021 | 10:39:00 | -67.78,-160.52 | 135.70 | 06/25/2021 | 10:37:51 | -67.83,-162.01 | 135.62 | 62.78 | 69 |
4 | 06/28/2021 | 00:24:18 | 69.67, 170.77 | 46.34 | 06/28/2021 | 00:25:24 | 69.57, 173.12 | 46.19 | 91.64 | 66 |
5 | 06/28/2021 | 01:14:42 | -68.62, -20.44 | 134.75 | 06/28/2021 | 01:15:09 | -68.64, -20.45 | 134.73 | 2.30 | 27 |
6 | 06/28/2021 | 02:05:26 | 68.49, 147.02 | 45.13 | 06/28/2021 | 02:04:36 | 68.52, 147.05 | 45.16 | 2.68 | 50 |
7 | 06/30/2021 | 16:40:57 | 68.69, -72.09 | 45.48 | 06/30/2021 | 16:42:06 | 68.70, -72.12 | 45.49 | 2.14 | 69 |
8 | 06/30/2021 | 17:31:39 | -68.59, 95.35 | 134.62 | 06/30/2021 | 17:31:36 | -68.60, 95.39 | 134.61 | 1.78 | 3 |
9 | 06/30/2021 | 18:22:19 | 68.26, -96.90 | 45.05 | 06/30/2021 | 18:21:06 | 68.31, -97.32 | 45.11 | 17.95 | 73 |
10 | 07/03/2021 | 08:57:54 | 68.67, 43.70 | 45.66 | 07/03/2021 | 08:58:33 | 68.66, 43.71 | 45.65 | 0.98 | 39 |
11 | 07/03/2021 | 09:48:35 | -68.52,-148.79 | 134.49 | 07/03/2021 | 09:48:04 | -68.51,-148.85 | 134.50 | 2.85 | 31 |
12 | 07/06/2021 | 00:24:16 | -69.24, -8.64 | 133.50 | 07/06/2021 | 00:25:26 | -69.13, -7.47 | 133.65 | 47.91 | 70 |
13 | 07/06/2021 | 01:14:50 | 68.60, 159.56 | 45.84 | 07/06/2021 | 01:15:00 | 68.61, 159.53 | 45.85 | 1.94 | 10 |
14 | 07/06/2021 | 02:05:32 | -68.50, -33.00 | 134.26 | 07/06/2021 | 02:04:30 | -68.52, -32.95 | 134.24 | 2.58 | 62 |

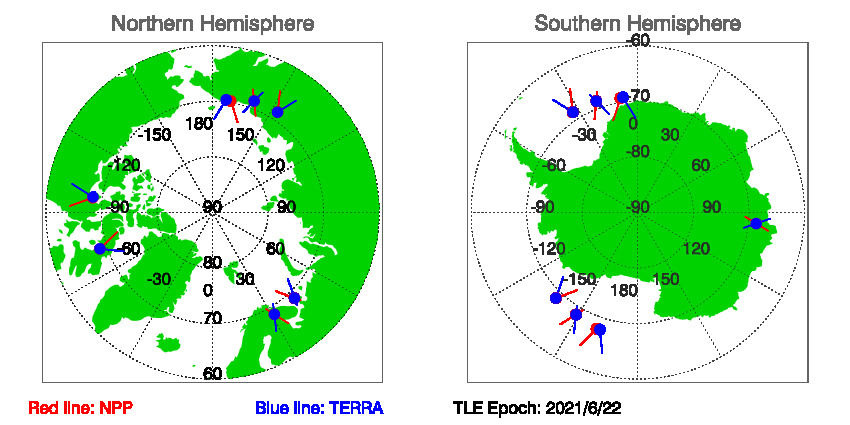

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/22/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 06/22/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
