Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/9/2021
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/09/2021 | 08:57:41 | -69.07,-136.78 | 133.99 | 06/09/2021 | 08:58:52 | -68.95,-135.94 | 134.13 | 36.49 | 71 |
| 2 | 06/09/2021 | 09:48:18 | 68.58, 31.19 | 45.51 | 06/09/2021 | 09:48:24 | 68.56, 31.23 | 45.49 | 2.53 | 6 |
| 3 | 06/09/2021 | 10:38:58 | -68.43,-161.30 | 134.65 | 06/09/2021 | 10:37:53 | -68.45,-161.27 | 134.63 | 2.02 | 65 |
| 4 | 06/12/2021 | 01:14:29 | -68.64, -20.44 | 134.61 | 06/12/2021 | 01:15:24 | -68.62, -20.47 | 134.65 | 3.36 | 55 |
| 5 | 06/12/2021 | 02:05:13 | 68.53, 147.03 | 45.27 | 06/12/2021 | 02:04:51 | 68.50, 147.03 | 45.24 | 2.91 | 22 |
| 6 | 06/12/2021 | 02:55:42 | -67.74, -44.65 | 135.54 | 06/12/2021 | 02:54:32 | -67.78, -46.18 | 135.47 | 64.44 | 70 |
| 7 | 06/14/2021 | 16:41:00 | 69.60, -73.32 | 46.23 | 06/14/2021 | 16:42:07 | 69.49, -71.10 | 46.09 | 86.90 | 67 |
| 8 | 06/14/2021 | 17:31:25 | -68.59, 95.39 | 134.81 | 06/14/2021 | 17:31:51 | -68.61, 95.41 | 134.79 | 2.43 | 26 |
| 9 | 06/14/2021 | 18:22:09 | 68.48, -97.14 | 45.08 | 06/14/2021 | 18:21:18 | 68.49, -97.09 | 45.10 | 2.82 | 51 |
| 10 | 06/17/2021 | 08:57:40 | 68.70, 43.71 | 45.21 | 06/17/2021 | 08:58:48 | 68.71, 43.77 | 45.22 | 2.63 | 68 |
| 11 | 06/17/2021 | 09:48:21 | -68.54,-148.77 | 134.95 | 06/17/2021 | 09:48:19 | -68.55,-148.79 | 134.94 | 1.29 | 2 |
| 12 | 06/17/2021 | 10:39:01 | 68.21, 18.96 | 44.72 | 06/17/2021 | 10:37:49 | 68.26, 18.50 | 44.78 | 19.63 | 72 |
| 13 | 06/20/2021 | 01:14:36 | 68.65, 159.54 | 45.12 | 06/20/2021 | 01:15:16 | 68.64, 159.56 | 45.10 | 1.62 | 40 |
| 14 | 06/20/2021 | 02:05:17 | -68.49, -32.94 | 135.04 | 06/20/2021 | 02:04:47 | -68.48, -33.00 | 135.05 | 2.42 | 30 |
| 15 | 06/22/2021 | 16:40:58 | -69.30, 107.10 | 134.21 | 06/22/2021 | 16:42:07 | -69.19, 108.49 | 134.35 | 55.80 | 69 |
| 16 | 06/22/2021 | 17:31:31 | 68.60, -84.64 | 45.08 | 06/22/2021 | 17:31:42 | 68.62, -84.59 | 45.09 | 2.47 | 11 |
| 17 | 06/22/2021 | 18:22:12 | -68.45, 82.89 | 135.08 | 06/22/2021 | 18:21:13 | -68.47, 82.86 | 135.06 | 2.51 | 59 |

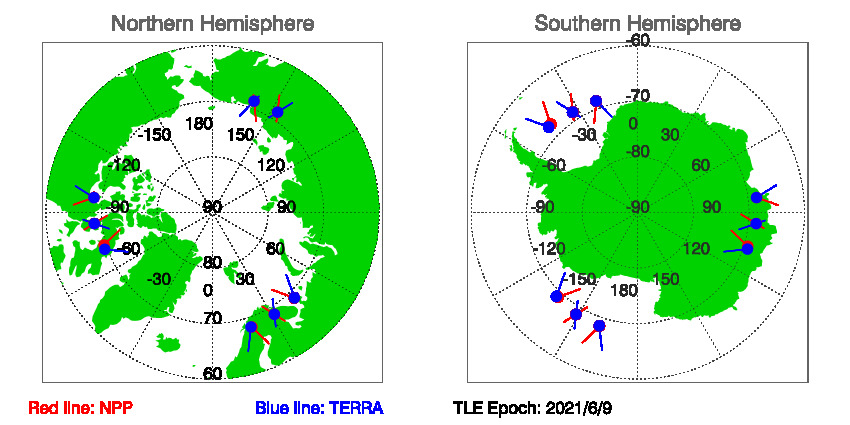

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/9/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 06/09/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
