Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/5/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 06/06/2021 | 17:31:22 | 68.62, -84.64 | 45.79 | 06/06/2021 | 17:31:56 | 68.61, -84.58 | 45.78 | 2.43 | 34 |
2 | 06/06/2021 | 18:22:03 | -68.48, 82.87 | 134.36 | 06/06/2021 | 18:21:27 | -68.45, 82.85 | 134.39 | 3.25 | 36 |
3 | 06/09/2021 | 08:57:40 | -69.06,-136.77 | 134.00 | 06/09/2021 | 08:58:51 | -68.96,-135.92 | 134.11 | 35.86 | 71 |
4 | 06/09/2021 | 09:48:17 | 68.57, 31.20 | 45.50 | 06/09/2021 | 09:48:23 | 68.57, 31.24 | 45.50 | 1.74 | 6 |
5 | 06/09/2021 | 10:38:58 | -68.42,-161.29 | 134.65 | 06/09/2021 | 10:37:54 | -68.41,-161.32 | 134.67 | 2.15 | 64 |
6 | 06/12/2021 | 01:14:29 | -68.64, -20.43 | 134.62 | 06/12/2021 | 01:15:24 | -68.64, -20.44 | 134.62 | 0.79 | 55 |
7 | 06/12/2021 | 02:05:13 | 68.52, 147.03 | 45.27 | 06/12/2021 | 02:04:51 | 68.52, 147.06 | 45.26 | 1.31 | 22 |
8 | 06/12/2021 | 02:55:42 | -67.73, -44.64 | 135.55 | 06/12/2021 | 02:54:33 | -67.75, -46.21 | 135.50 | 66.12 | 69 |
9 | 06/14/2021 | 16:41:01 | 69.65, -73.39 | 46.29 | 06/14/2021 | 16:42:07 | 69.53, -71.05 | 46.13 | 91.76 | 66 |
10 | 06/14/2021 | 17:31:25 | -68.59, 95.40 | 134.81 | 06/14/2021 | 17:31:52 | -68.60, 95.39 | 134.80 | 1.72 | 27 |
11 | 06/14/2021 | 18:22:09 | 68.48, -97.14 | 45.08 | 06/14/2021 | 18:21:19 | 68.48, -97.12 | 45.08 | 1.09 | 50 |
12 | 06/17/2021 | 08:57:40 | 68.70, 43.70 | 45.21 | 06/17/2021 | 08:58:49 | 68.71, 43.77 | 45.22 | 2.88 | 69 |
13 | 06/17/2021 | 09:48:21 | -68.54,-148.77 | 134.95 | 06/17/2021 | 09:48:20 | -68.56,-148.79 | 134.93 | 2.37 | 1 |
14 | 06/17/2021 | 10:39:02 | 68.27, 18.89 | 44.78 | 06/17/2021 | 10:37:49 | 68.32, 18.57 | 44.84 | 14.29 | 73 |

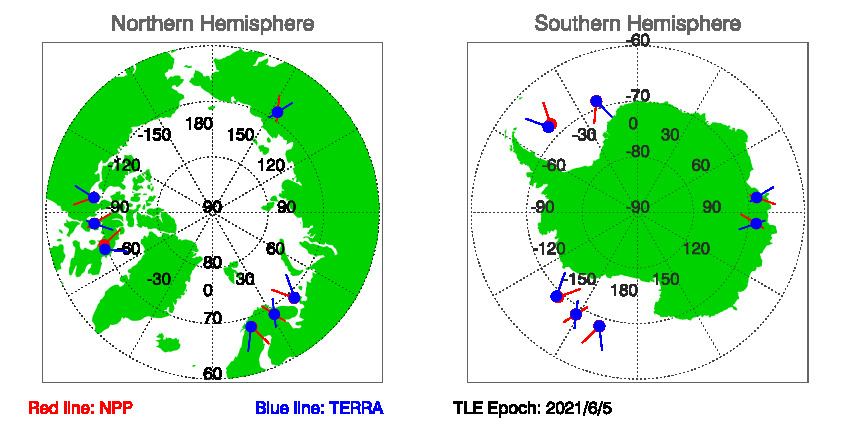

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/5/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 06/05/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
