Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/3/2021
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/04/2021 | 01:14:25 | 68.65, 159.57 | 46.10 | 06/04/2021 | 01:15:28 | 68.62, 159.55 | 46.07 | 3.10 | 63 |
| 2 | 06/04/2021 | 02:05:06 | -68.50, -32.92 | 134.05 | 06/04/2021 | 02:04:58 | -68.51, -32.95 | 134.05 | 1.47 | 8 |
| 3 | 06/04/2021 | 02:55:42 | 67.95, 135.09 | 45.39 | 06/04/2021 | 02:54:31 | 68.06, 134.16 | 45.51 | 40.81 | 71 |
| 4 | 06/06/2021 | 17:31:21 | 68.59, -84.60 | 45.76 | 06/06/2021 | 17:31:54 | 68.59, -84.61 | 45.75 | 0.86 | 33 |
| 5 | 06/06/2021 | 18:22:03 | -68.50, 82.85 | 134.34 | 06/06/2021 | 18:21:24 | -68.48, 82.90 | 134.36 | 2.88 | 39 |
| 6 | 06/09/2021 | 08:57:38 | -68.92,-136.58 | 134.14 | 06/09/2021 | 08:58:50 | -68.84,-136.06 | 134.24 | 23.00 | 72 |
| 7 | 06/09/2021 | 09:48:17 | 68.54, 31.24 | 45.47 | 06/09/2021 | 09:48:20 | 68.55, 31.23 | 45.48 | 0.85 | 3 |
| 8 | 06/09/2021 | 10:38:59 | -68.44,-161.32 | 134.63 | 06/09/2021 | 10:37:50 | -68.45,-161.26 | 134.63 | 2.38 | 69 |
| 9 | 06/12/2021 | 01:14:30 | -68.66, -20.46 | 134.60 | 06/12/2021 | 01:15:19 | -68.63, -20.43 | 134.63 | 3.01 | 49 |
| 10 | 06/12/2021 | 02:05:13 | 68.49, 147.07 | 45.23 | 06/12/2021 | 02:04:46 | 68.51, 147.06 | 45.25 | 1.61 | 27 |
| 11 | 06/12/2021 | 02:55:39 | -67.53, -44.41 | 135.75 | 06/12/2021 | 02:54:31 | -67.57, -46.39 | 135.68 | 84.52 | 68 |
| 12 | 06/14/2021 | 16:40:55 | 69.35, -72.96 | 45.98 | 06/14/2021 | 16:42:04 | 69.24, -71.41 | 45.84 | 62.47 | 69 |
| 13 | 06/14/2021 | 17:31:25 | -68.61, 95.38 | 134.79 | 06/14/2021 | 17:31:44 | -68.59, 95.40 | 134.81 | 2.35 | 19 |
| 14 | 06/14/2021 | 18:22:08 | 68.44, -97.10 | 45.04 | 06/14/2021 | 18:21:11 | 68.46, -97.11 | 45.06 | 1.68 | 57 |

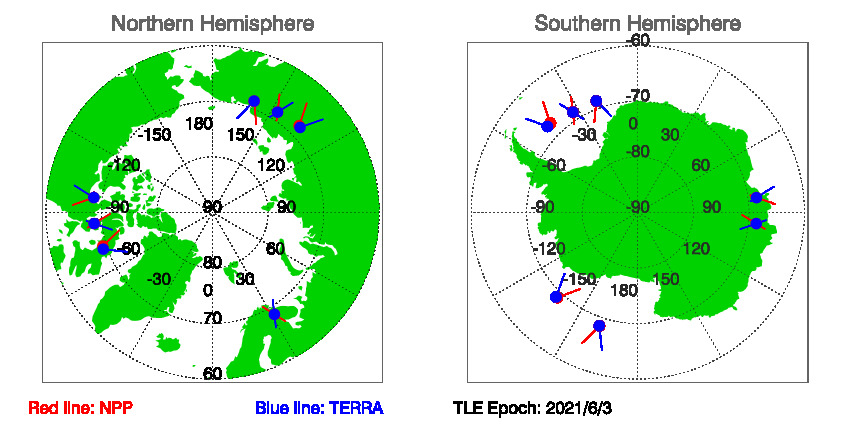

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 6/3/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 06/03/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
