Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/15/2021
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/16/2021 | 09:47:59 | -68.59,-148.76 | 130.73 | 05/16/2021 | 09:48:51 | -68.57,-148.79 | 130.75 | 2.44 | 52 |
| 2 | 05/16/2021 | 10:38:43 | 68.46, 18.71 | 49.14 | 05/16/2021 | 10:38:18 | 68.46, 18.73 | 49.14 | 0.74 | 25 |
| 3 | 05/16/2021 | 11:29:10 | -67.57,-172.85 | 131.77 | 05/16/2021 | 11:28:01 | -67.62,-174.62 | 131.71 | 75.25 | 69 |
| 4 | 05/19/2021 | 01:14:28 | 69.41, 158.56 | 49.53 | 05/19/2021 | 01:15:36 | 69.30, 160.39 | 49.40 | 72.81 | 68 |
| 5 | 05/19/2021 | 02:04:55 | -68.51, -32.90 | 131.39 | 05/19/2021 | 02:05:18 | -68.52, -32.96 | 131.39 | 2.53 | 23 |
| 6 | 05/19/2021 | 02:55:39 | 68.39, 134.57 | 48.48 | 05/19/2021 | 02:54:45 | 68.41, 134.55 | 48.50 | 1.86 | 54 |
| 7 | 05/21/2021 | 17:31:11 | 68.65, -84.63 | 48.20 | 05/21/2021 | 17:32:14 | 68.63, -84.57 | 48.18 | 2.75 | 63 |
| 8 | 05/21/2021 | 18:21:52 | -68.50, 82.88 | 131.96 | 05/21/2021 | 18:21:45 | -68.47, 82.86 | 131.99 | 3.06 | 7 |
| 9 | 05/21/2021 | 19:12:29 | 68.00,-109.17 | 47.54 | 05/21/2021 | 19:11:17 | 68.07,-109.97 | 47.61 | 33.89 | 72 |
| 10 | 05/24/2021 | 09:48:07 | 68.58, 31.22 | 47.63 | 05/24/2021 | 09:48:41 | 68.57, 31.23 | 47.61 | 1.59 | 34 |
| 11 | 05/24/2021 | 10:38:48 | -68.43,-161.27 | 132.53 | 05/24/2021 | 10:38:12 | -68.42,-161.32 | 132.55 | 2.98 | 36 |
| 12 | 05/27/2021 | 01:14:24 | -68.96, -20.83 | 132.46 | 05/27/2021 | 01:15:36 | -68.85, -20.18 | 132.57 | 28.32 | 72 |
| 13 | 05/27/2021 | 02:05:02 | 68.53, 147.06 | 47.10 | 05/27/2021 | 02:05:07 | 68.51, 147.04 | 47.08 | 2.37 | 5 |
| 14 | 05/27/2021 | 02:55:44 | -68.43, -45.49 | 133.01 | 05/27/2021 | 02:54:37 | -68.41, -45.45 | 133.02 | 2.49 | 67 |
| 15 | 05/29/2021 | 17:31:15 | -68.63, 95.37 | 133.21 | 05/29/2021 | 17:32:06 | -68.62, 95.41 | 133.23 | 2.03 | 51 |
| 16 | 05/29/2021 | 18:21:58 | 68.47, -97.11 | 46.63 | 05/29/2021 | 18:21:33 | 68.49, -97.10 | 46.64 | 2.21 | 25 |
| 17 | 05/29/2021 | 19:12:25 | -67.56, 71.36 | 134.30 | 05/29/2021 | 19:11:17 | -67.62, 69.51 | 134.23 | 78.47 | 68 |

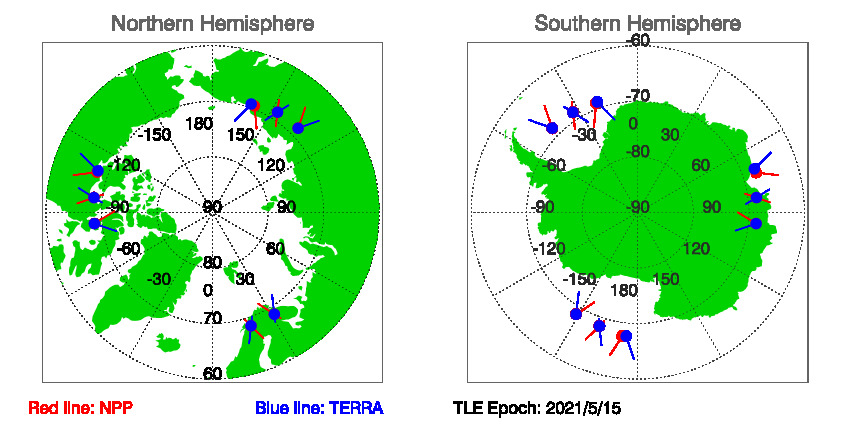

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 5/15/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 05/15/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
