Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/20/2021
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 04/22/2021 | 09:47:57 | 68.93, 30.81 | 56.49 | 04/22/2021 | 09:49:07 | 68.83, 31.55 | 56.38 | 31.83 | 70 |
2 | 04/22/2021 | 10:38:32 | -68.48,-161.27 | 123.99 | 04/22/2021 | 10:38:41 | -68.50,-161.23 | 123.97 | 2.62 | 9 |
3 | 04/22/2021 | 11:29:16 | 68.35, 6.21 | 55.87 | 04/22/2021 | 11:28:09 | 68.33, 6.22 | 55.86 | 1.94 | 67 |
4 | 04/25/2021 | 02:04:44 | 68.57, 147.07 | 55.24 | 04/25/2021 | 02:05:39 | 68.55, 147.09 | 55.22 | 1.74 | 55 |
5 | 04/25/2021 | 02:55:25 | -68.43, -45.44 | 124.92 | 04/25/2021 | 02:55:09 | -68.45, -45.41 | 124.91 | 1.68 | 16 |
6 | 04/25/2021 | 03:45:57 | 67.66, 122.85 | 54.29 | 04/25/2021 | 03:44:47 | 67.71, 121.38 | 54.36 | 62.34 | 70 |
7 | 04/27/2021 | 18:21:37 | 68.53, -97.10 | 54.34 | 04/27/2021 | 18:22:06 | 68.55, -97.04 | 54.35 | 3.33 | 29 |
8 | 04/27/2021 | 19:12:18 | -68.39, 70.40 | 125.82 | 04/27/2021 | 19:11:37 | -68.39, 70.40 | 125.82 | 0.35 | 41 |
9 | 04/30/2021 | 09:47:51 | -68.93,-149.17 | 126.08 | 04/30/2021 | 09:49:02 | -68.83,-148.46 | 126.19 | 30.94 | 71 |
10 | 04/30/2021 | 10:38:29 | 68.50, 18.72 | 53.47 | 04/30/2021 | 10:38:33 | 68.48, 18.76 | 53.46 | 2.29 | 4 |
11 | 04/30/2021 | 11:29:10 | -68.35,-173.78 | 126.69 | 04/30/2021 | 11:28:04 | -68.33,-173.80 | 126.71 | 3.17 | 66 |
12 | 05/03/2021 | 02:04:38 | -68.58, -32.92 | 127.24 | 05/03/2021 | 02:05:33 | -68.59, -32.88 | 127.23 | 2.13 | 55 |
13 | 05/03/2021 | 02:55:21 | 68.41, 134.61 | 52.59 | 05/03/2021 | 02:55:01 | 68.41, 134.55 | 52.58 | 2.23 | 20 |
14 | 05/03/2021 | 03:45:51 | -67.68, -57.15 | 128.17 | 05/03/2021 | 03:44:41 | -67.76, -58.58 | 128.08 | 61.33 | 70 |

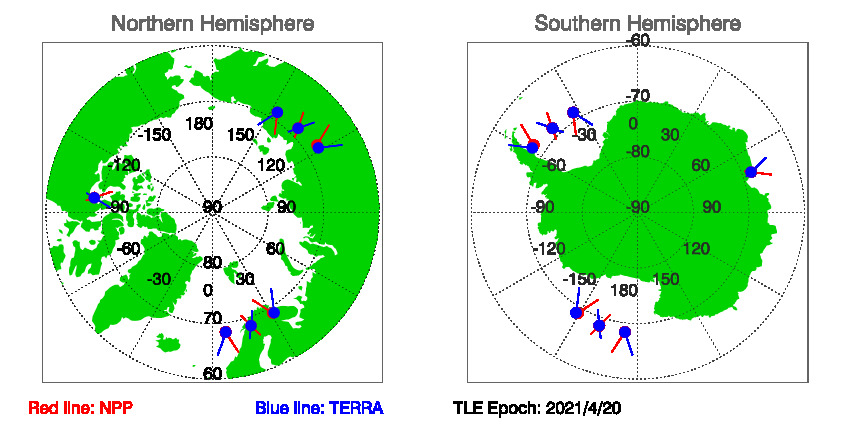

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 4/20/2021
Download SNOs between NPP and TERRA since TLE EPOCH: 04/20/2021 in txt file.
Historial Predications of SNOs between NPP and TERRA
