Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/19/2020
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 11/21/2020 | 10:39:01 | 68.41, 18.81 | 88.37 | 11/21/2020 | 10:40:07 | 68.41, 18.74 | 88.37 | 2.58 | 66 |
2 | 11/21/2020 | 11:29:42 | -68.28,-173.71 | 91.75 | 11/21/2020 | 11:29:37 | -68.31,-173.75 | 91.73 | 3.01 | 5 |
3 | 11/21/2020 | 12:20:20 | 67.88, -5.90 | 87.86 | 11/21/2020 | 12:19:08 | 67.91, -6.57 | 87.88 | 28.46 | 72 |
4 | 11/24/2020 | 02:55:53 | 68.39, 134.60 | 88.91 | 11/24/2020 | 02:56:35 | 68.37, 134.57 | 88.88 | 2.66 | 42 |
5 | 11/24/2020 | 03:46:34 | -68.26, -57.91 | 91.22 | 11/24/2020 | 03:46:05 | -68.27, -57.92 | 91.22 | 0.37 | 29 |
6 | 11/26/2020 | 18:22:16 | -69.25, 81.91 | 89.74 | 11/26/2020 | 18:23:24 | -69.16, 83.80 | 89.81 | 75.44 | 68 |
7 | 11/26/2020 | 19:12:45 | 68.32,-109.54 | 89.35 | 11/26/2020 | 19:13:04 | 68.32,-109.60 | 89.34 | 2.77 | 19 |
8 | 11/26/2020 | 20:03:27 | -68.25, 57.88 | 90.73 | 11/26/2020 | 20:02:34 | -68.22, 57.91 | 90.76 | 3.14 | 53 |
9 | 11/29/2020 | 10:38:54 | -68.44,-161.22 | 90.08 | 11/29/2020 | 10:40:05 | -68.44,-161.22 | 90.08 | 0.50 | 71 |
10 | 11/29/2020 | 11:29:38 | 68.31, 6.25 | 89.80 | 11/29/2020 | 11:29:32 | 68.32, 6.28 | 89.81 | 1.50 | 6 |
11 | 11/29/2020 | 12:20:17 | -68.07, 173.88 | 90.44 | 11/29/2020 | 12:19:04 | -68.11, 173.66 | 90.40 | 9.96 | 73 |
12 | 12/02/2020 | 02:55:46 | -68.38, -45.36 | 89.73 | 12/02/2020 | 02:56:34 | -68.39, -45.41 | 89.72 | 2.27 | 48 |
13 | 12/02/2020 | 03:46:30 | 68.25, 122.10 | 90.15 | 12/02/2020 | 03:46:01 | 68.26, 122.09 | 90.16 | 1.22 | 29 |
14 | 12/02/2020 | 04:36:53 | -67.20, -69.29 | 90.89 | 12/02/2020 | 04:35:46 | -67.27, -71.41 | 90.84 | 91.65 | 67 |

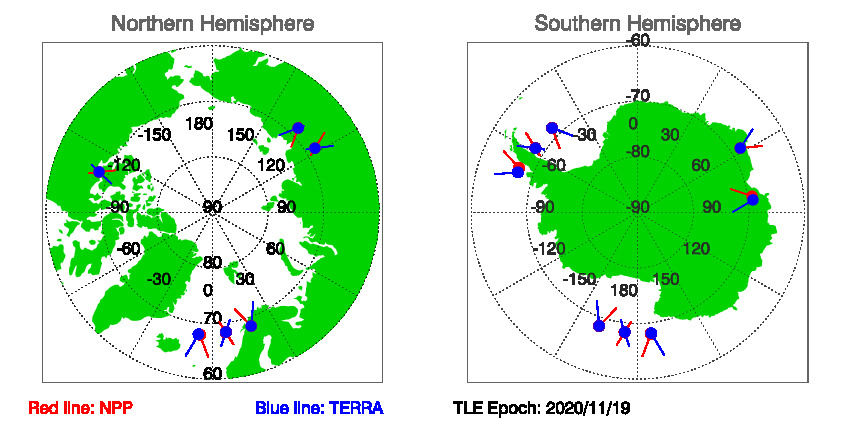

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 11/19/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 11/19/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
