Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/26/2020
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 09/26/2020 | 10:39:28 | -68.41,-161.18 | 110.19 | 09/26/2020 | 10:40:17 | -68.41,-161.23 | 110.19 | 2.30 | 49 |
| 2 | 09/26/2020 | 11:30:12 | 68.29, 6.28 | 69.71 | 09/26/2020 | 11:29:44 | 68.30, 6.28 | 69.71 | 0.70 | 28 |
| 3 | 09/26/2020 | 12:20:37 | -67.29, 174.83 | 111.28 | 09/26/2020 | 12:19:29 | -67.35, 172.82 | 111.23 | 86.48 | 68 |
| 4 | 09/29/2020 | 02:05:55 | 69.34, 146.01 | 71.77 | 09/29/2020 | 02:07:02 | 69.25, 148.07 | 71.69 | 81.48 | 67 |
| 5 | 09/29/2020 | 02:56:21 | -68.39, -45.38 | 109.17 | 09/29/2020 | 02:56:46 | -68.36, -45.41 | 109.20 | 3.30 | 25 |
| 6 | 09/29/2020 | 03:47:05 | 68.27, 122.07 | 70.74 | 09/29/2020 | 03:46:13 | 68.25, 122.10 | 70.71 | 3.04 | 52 |
| 7 | 10/01/2020 | 18:22:34 | 68.52, -97.10 | 71.99 | 10/01/2020 | 18:23:44 | 68.53, -96.96 | 72.00 | 5.70 | 70 |
| 8 | 10/01/2020 | 19:13:14 | -68.32, 70.48 | 108.20 | 10/01/2020 | 19:13:16 | -68.31, 70.41 | 108.21 | 2.81 | 2 |
| 9 | 10/01/2020 | 20:03:56 | 68.10,-121.93 | 71.60 | 10/01/2020 | 20:02:44 | 68.14,-122.15 | 71.64 | 10.25 | 72 |
| 10 | 10/04/2020 | 10:39:26 | 68.40, 18.82 | 72.91 | 10/04/2020 | 10:40:15 | 68.42, 18.78 | 72.93 | 2.68 | 49 |
| 11 | 10/04/2020 | 11:30:08 | -68.30,-173.73 | 107.18 | 10/04/2020 | 11:29:45 | -68.32,-173.71 | 107.17 | 2.12 | 23 |
| 12 | 10/04/2020 | 12:20:35 | 67.27, -5.16 | 71.82 | 10/04/2020 | 12:19:28 | 67.30, -7.23 | 71.82 | 89.02 | 67 |
| 13 | 10/07/2020 | 02:05:55 | -69.50, -34.23 | 104.98 | 10/07/2020 | 02:07:01 | -69.42, -31.71 | 105.03 | 98.58 | 66 |
| 14 | 10/07/2020 | 02:56:20 | 68.38, 134.61 | 73.92 | 10/07/2020 | 02:56:45 | 68.36, 134.59 | 73.90 | 3.31 | 25 |
| 15 | 10/07/2020 | 03:47:02 | -68.28, -57.95 | 106.17 | 10/07/2020 | 03:46:15 | -68.26, -57.90 | 106.19 | 3.32 | 47 |
| 16 | 10/09/2020 | 18:22:32 | -68.64, 82.73 | 104.82 | 10/09/2020 | 18:23:44 | -68.59, 83.10 | 104.87 | 15.88 | 72 |
| 17 | 10/09/2020 | 19:13:12 | 68.32,-109.54 | 74.88 | 10/09/2020 | 19:13:13 | 68.35,-109.54 | 74.91 | 3.45 | 1 |
| 18 | 10/09/2020 | 20:03:54 | -68.22, 57.91 | 105.21 | 10/09/2020 | 20:02:44 | -68.20, 57.91 | 105.23 | 1.71 | 70 |

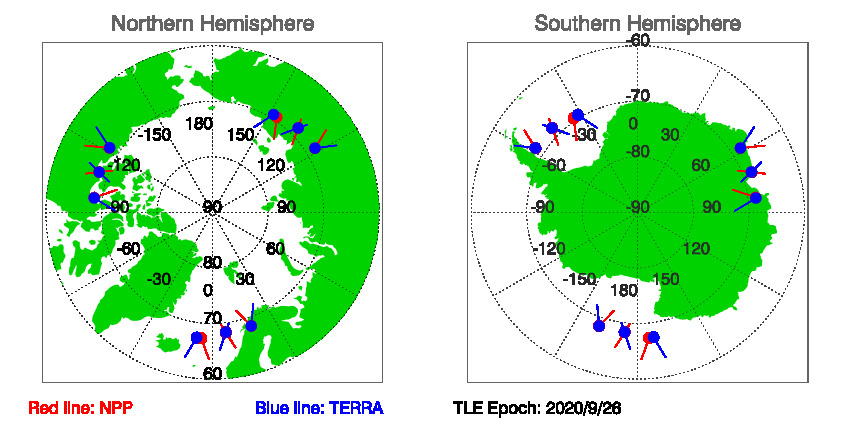

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 9/26/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 09/26/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
