Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/7/2020
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 08/09/2020 | 10:39:11 | -68.39,-161.23 | 127.34 | 08/09/2020 | 10:40:18 | -68.41,-161.21 | 127.33 | 2.34 | 67 |
2 | 08/09/2020 | 11:29:55 | 68.26, 6.25 | 52.54 | 08/09/2020 | 11:29:46 | 68.25, 6.24 | 52.53 | 1.24 | 9 |
3 | 08/09/2020 | 12:20:32 | -67.91, 174.00 | 127.81 | 08/09/2020 | 12:19:19 | -67.97, 173.54 | 127.74 | 20.34 | 73 |
4 | 08/12/2020 | 02:56:07 | -68.36, -45.43 | 126.58 | 08/12/2020 | 02:56:48 | -68.35, -45.41 | 126.60 | 2.09 | 41 |
5 | 08/12/2020 | 03:46:51 | 68.24, 122.05 | 53.31 | 08/12/2020 | 03:46:15 | 68.23, 122.10 | 53.30 | 2.24 | 36 |
6 | 08/14/2020 | 18:22:30 | 68.91, -97.70 | 54.80 | 08/14/2020 | 18:23:40 | 68.82, -96.58 | 54.68 | 46.02 | 70 |
7 | 08/14/2020 | 19:13:02 | -68.28, 70.45 | 125.84 | 08/14/2020 | 19:13:18 | -68.27, 70.38 | 125.85 | 2.94 | 16 |
8 | 08/14/2020 | 20:03:46 | 68.16,-122.09 | 54.05 | 08/14/2020 | 20:02:45 | 68.16,-122.11 | 54.05 | 0.98 | 61 |
9 | 08/17/2020 | 10:39:16 | 68.40, 18.74 | 55.12 | 08/17/2020 | 10:40:15 | 68.40, 18.79 | 55.12 | 2.03 | 59 |
10 | 08/17/2020 | 11:29:57 | -68.26,-173.75 | 125.02 | 08/17/2020 | 11:29:46 | -68.25,-173.77 | 125.03 | 1.51 | 11 |
11 | 08/17/2020 | 12:20:31 | 67.60, -5.62 | 54.32 | 08/17/2020 | 12:19:21 | 67.68, -6.78 | 54.43 | 49.78 | 70 |
12 | 08/20/2020 | 02:56:11 | 68.33, 134.60 | 55.92 | 08/20/2020 | 02:56:45 | 68.31, 134.56 | 55.90 | 2.91 | 34 |
13 | 08/20/2020 | 03:46:53 | -68.24, -57.96 | 124.17 | 08/20/2020 | 03:46:15 | -68.21, -57.92 | 124.19 | 2.99 | 38 |

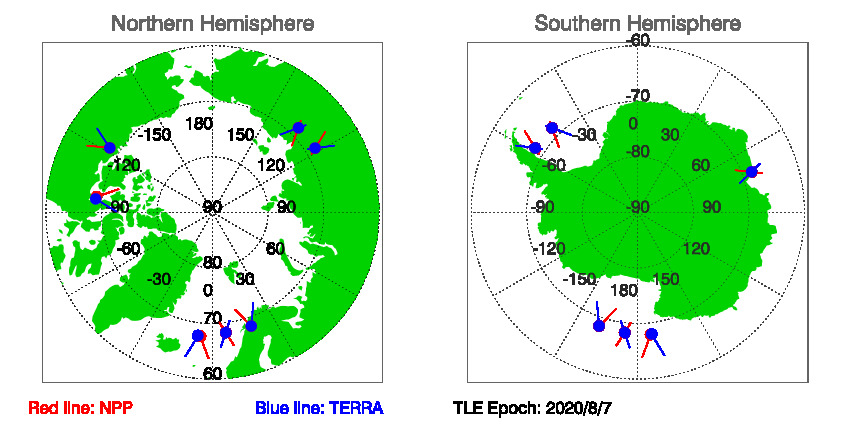

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/7/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 08/07/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
