Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/1/2020
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 08/01/2020 | 10:39:09 | 68.41, 18.75 | 50.50 | 08/01/2020 | 10:40:17 | 68.42, 18.80 | 50.50 | 2.24 | 68 |
| 2 | 08/01/2020 | 11:29:50 | -68.28,-173.77 | 129.63 | 08/01/2020 | 11:29:48 | -68.25,-173.77 | 129.66 | 3.63 | 2 |
| 3 | 08/01/2020 | 12:20:30 | 67.93, -6.01 | 50.02 | 08/01/2020 | 12:19:18 | 67.97, -6.45 | 50.08 | 18.95 | 72 |
| 4 | 08/04/2020 | 02:56:05 | 68.38, 134.56 | 51.17 | 08/04/2020 | 02:56:47 | 68.37, 134.62 | 51.15 | 2.91 | 42 |
| 5 | 08/04/2020 | 03:46:45 | -68.19, -57.89 | 129.02 | 08/04/2020 | 03:46:18 | -68.20, -57.94 | 129.01 | 2.54 | 27 |
| 6 | 08/06/2020 | 18:22:29 | -69.17, 81.95 | 127.29 | 08/06/2020 | 18:23:37 | -69.10, 83.77 | 127.42 | 72.55 | 68 |
| 7 | 08/06/2020 | 19:12:59 | 68.30,-109.57 | 51.81 | 08/06/2020 | 19:13:16 | 68.32,-109.56 | 51.83 | 2.37 | 17 |
| 8 | 08/06/2020 | 20:03:40 | -68.16, 57.92 | 128.32 | 08/06/2020 | 20:02:47 | -68.16, 57.88 | 128.32 | 1.71 | 53 |
| 9 | 08/09/2020 | 10:39:11 | -68.40,-161.24 | 127.34 | 08/09/2020 | 10:40:19 | -68.38,-161.25 | 127.36 | 1.59 | 68 |
| 10 | 08/09/2020 | 11:29:55 | 68.27, 6.23 | 52.55 | 08/09/2020 | 11:29:46 | 68.27, 6.26 | 52.54 | 1.33 | 9 |
| 11 | 08/09/2020 | 12:20:32 | -67.92, 174.00 | 127.81 | 08/09/2020 | 12:19:19 | -68.00, 173.58 | 127.71 | 19.74 | 73 |
| 12 | 08/12/2020 | 02:56:06 | -68.32, -45.37 | 126.63 | 08/12/2020 | 02:56:49 | -68.33, -45.43 | 126.61 | 3.16 | 43 |
| 13 | 08/12/2020 | 03:46:50 | 68.19, 122.10 | 53.26 | 08/12/2020 | 03:46:16 | 68.21, 122.08 | 53.28 | 2.38 | 34 |
| 14 | 08/14/2020 | 18:22:31 | 68.98, -97.79 | 54.87 | 08/14/2020 | 18:23:40 | 68.88, -96.50 | 54.74 | 52.62 | 69 |
| 15 | 08/14/2020 | 19:13:02 | -68.29, 70.44 | 125.83 | 08/14/2020 | 19:13:19 | -68.28, 70.39 | 125.84 | 1.91 | 17 |
| 16 | 08/14/2020 | 20:03:46 | 68.17,-122.11 | 54.06 | 08/14/2020 | 20:02:46 | 68.16,-122.11 | 54.05 | 1.36 | 60 |

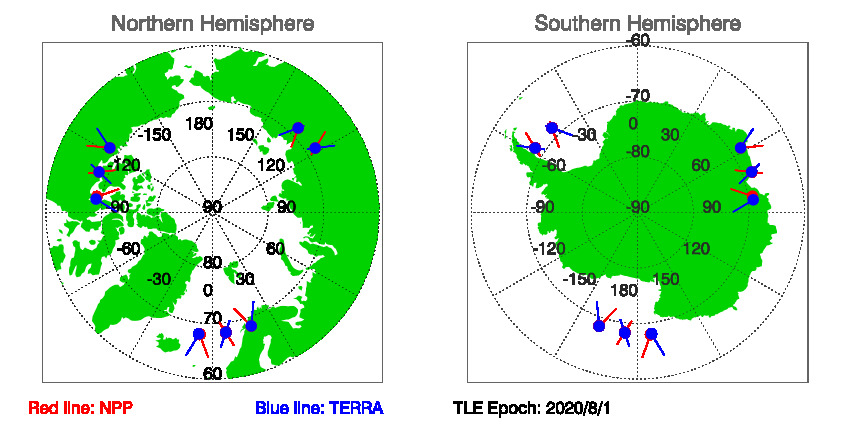

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 8/1/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 08/01/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
