Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/24/2020
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/24/2020 | 10:39:05 | -68.53,-161.39 | 131.26 | 07/24/2020 | 10:40:17 | -68.46,-161.15 | 131.34 | 12.28 | 72 |
| 2 | 07/24/2020 | 11:29:47 | 68.28, 6.24 | 48.50 | 07/24/2020 | 11:29:45 | 68.30, 6.30 | 48.51 | 3.19 | 2 |
| 3 | 07/24/2020 | 12:20:28 | -68.16, 173.72 | 131.63 | 07/24/2020 | 12:19:16 | -68.13, 173.73 | 131.65 | 2.73 | 72 |
| 4 | 07/27/2020 | 02:55:59 | -68.38, -45.43 | 130.82 | 07/27/2020 | 02:56:48 | -68.37, -45.38 | 130.84 | 2.57 | 49 |
| 5 | 07/27/2020 | 03:46:42 | 68.19, 122.12 | 49.00 | 07/27/2020 | 03:46:16 | 68.20, 122.06 | 49.01 | 2.56 | 26 |
| 6 | 07/27/2020 | 04:37:08 | -67.26, -69.41 | 131.96 | 07/27/2020 | 04:36:00 | -67.31, -71.32 | 131.85 | 82.22 | 68 |
| 7 | 07/29/2020 | 18:22:28 | 69.23, -98.13 | 50.68 | 07/29/2020 | 18:23:36 | 69.10, -96.23 | 50.50 | 76.50 | 68 |
| 8 | 07/29/2020 | 19:12:55 | -68.34, 70.38 | 130.23 | 07/29/2020 | 19:13:18 | -68.32, 70.44 | 130.26 | 3.42 | 23 |
| 9 | 07/29/2020 | 20:03:38 | 68.16,-122.07 | 49.59 | 07/29/2020 | 20:02:46 | 68.15,-122.12 | 49.59 | 1.97 | 52 |
| 10 | 08/01/2020 | 10:39:09 | 68.39, 18.77 | 50.48 | 08/01/2020 | 10:40:18 | 68.38, 18.75 | 50.46 | 2.02 | 69 |
| 11 | 08/01/2020 | 11:29:50 | -68.26,-173.73 | 129.65 | 08/01/2020 | 11:29:48 | -68.27,-173.74 | 129.64 | 2.04 | 2 |
| 12 | 08/01/2020 | 12:20:30 | 67.91, -5.99 | 50.00 | 08/01/2020 | 12:19:18 | 67.99, -6.43 | 50.10 | 20.17 | 72 |
| 13 | 08/04/2020 | 02:56:04 | 68.36, 134.58 | 51.15 | 08/04/2020 | 02:56:46 | 68.37, 134.63 | 51.15 | 2.64 | 42 |
| 14 | 08/04/2020 | 03:46:45 | -68.22, -57.92 | 128.99 | 08/04/2020 | 03:46:17 | -68.22, -57.92 | 128.99 | 0.25 | 28 |
| 15 | 08/06/2020 | 18:22:29 | -69.15, 81.98 | 127.32 | 08/06/2020 | 18:23:38 | -69.04, 83.70 | 127.47 | 69.28 | 69 |
| 16 | 08/06/2020 | 19:13:00 | 68.33,-109.62 | 51.85 | 08/06/2020 | 19:13:16 | 68.31,-109.56 | 51.83 | 3.33 | 16 |
| 17 | 08/06/2020 | 20:03:41 | -68.19, 57.88 | 128.29 | 08/06/2020 | 20:02:47 | -68.16, 57.89 | 128.32 | 3.21 | 54 |

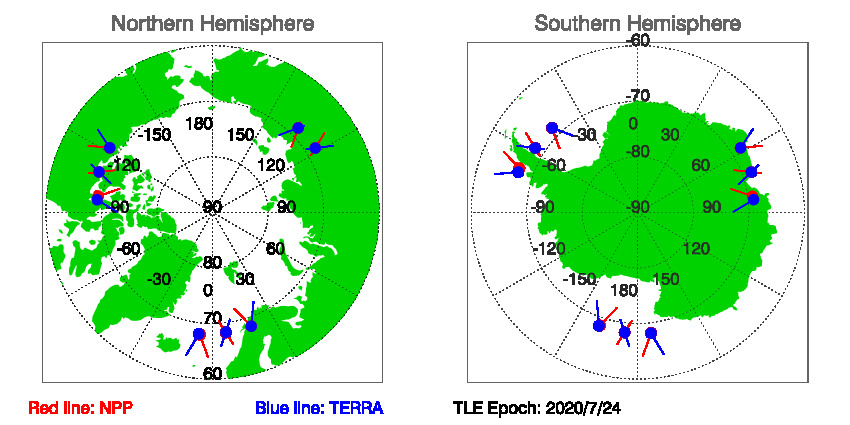

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/24/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 07/24/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
