Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/10/2020
Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 07/11/2020 | 02:55:49 | -68.35, -45.37 | 133.78 | 07/11/2020 | 02:56:46 | -68.35, -45.40 | 133.79 | 1.00 | 57 |
2 | 07/11/2020 | 03:46:33 | 68.22, 122.11 | 46.08 | 07/11/2020 | 03:46:13 | 68.24, 122.11 | 46.11 | 2.82 | 20 |
3 | 07/11/2020 | 04:37:03 | -67.50, -69.68 | 134.65 | 07/11/2020 | 04:35:53 | -67.58, -71.02 | 134.53 | 57.83 | 70 |
4 | 07/13/2020 | 19:12:45 | -68.31, 70.45 | 133.44 | 07/13/2020 | 19:13:17 | -68.30, 70.42 | 133.45 | 1.65 | 32 |
5 | 07/13/2020 | 20:03:29 | 68.17,-122.07 | 46.43 | 07/13/2020 | 20:02:44 | 68.19,-122.08 | 46.44 | 1.52 | 45 |
6 | 07/16/2020 | 10:39:04 | 68.61, 18.50 | 47.30 | 07/16/2020 | 10:40:15 | 68.55, 18.95 | 47.22 | 19.71 | 71 |
7 | 07/16/2020 | 11:29:41 | -68.26,-173.72 | 133.06 | 07/16/2020 | 11:29:48 | -68.28,-173.73 | 133.04 | 2.18 | 7 |
8 | 07/16/2020 | 12:20:25 | 68.13, -6.25 | 46.82 | 07/16/2020 | 12:19:16 | 68.11, -6.30 | 46.80 | 3.28 | 69 |
9 | 07/19/2020 | 02:55:56 | 68.36, 134.60 | 47.51 | 07/19/2020 | 02:56:50 | 68.34, 134.57 | 47.48 | 2.85 | 54 |
10 | 07/19/2020 | 03:46:37 | -68.22, -57.90 | 132.63 | 07/19/2020 | 03:46:20 | -68.24, -57.91 | 132.61 | 2.26 | 17 |
11 | 07/19/2020 | 04:37:08 | 67.39, 110.43 | 46.53 | 07/19/2020 | 04:35:59 | 67.45, 108.82 | 46.63 | 69.11 | 69 |
12 | 07/21/2020 | 19:12:51 | 68.32,-109.58 | 47.99 | 07/21/2020 | 19:13:21 | 68.33,-109.57 | 47.98 | 0.61 | 30 |
13 | 07/21/2020 | 20:03:32 | -68.18, 57.91 | 132.15 | 07/21/2020 | 20:02:52 | -68.18, 57.88 | 132.15 | 1.24 | 40 |

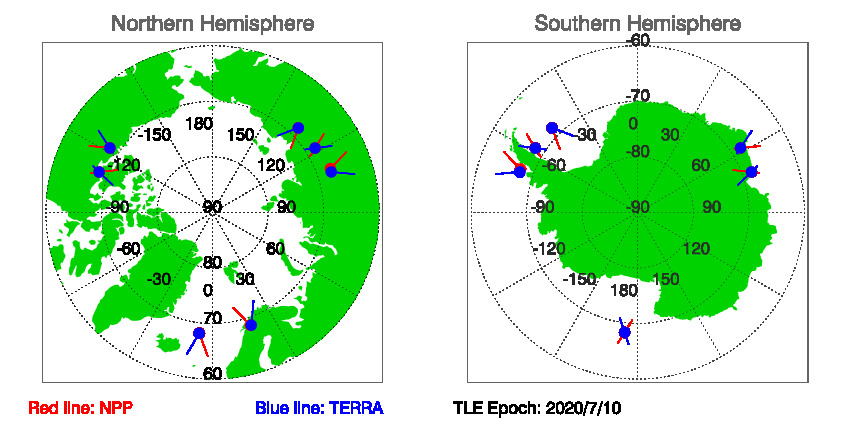

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/10/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 07/10/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
