Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/3/2020
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/03/2020 | 02:55:47 | 68.39, 134.59 | 45.37 | 07/03/2020 | 02:56:45 | 68.39, 134.65 | 45.37 | 2.24 | 58 |
| 2 | 07/03/2020 | 03:46:26 | -68.20, -57.85 | 134.82 | 07/03/2020 | 03:46:15 | -68.22, -57.92 | 134.79 | 3.48 | 11 |
| 3 | 07/03/2020 | 04:37:01 | 67.58, 110.23 | 44.55 | 07/03/2020 | 04:35:51 | 67.61, 109.01 | 44.61 | 51.58 | 70 |
| 4 | 07/05/2020 | 19:12:42 | 68.33,-109.58 | 45.57 | 07/05/2020 | 19:13:14 | 68.32,-109.55 | 45.55 | 1.62 | 32 |
| 5 | 07/05/2020 | 20:03:23 | -68.20, 57.91 | 134.56 | 07/05/2020 | 20:02:44 | -68.22, 57.96 | 134.55 | 2.77 | 39 |
| 6 | 07/08/2020 | 10:39:01 | -68.79,-161.72 | 133.67 | 07/08/2020 | 10:40:12 | -68.66,-160.91 | 133.83 | 36.08 | 71 |
| 7 | 07/08/2020 | 11:29:38 | 68.29, 6.25 | 45.81 | 07/08/2020 | 11:29:44 | 68.26, 6.26 | 45.79 | 2.69 | 6 |
| 8 | 07/08/2020 | 12:20:19 | -68.15, 173.74 | 134.32 | 07/08/2020 | 12:19:14 | -68.16, 173.77 | 134.31 | 1.54 | 65 |
| 9 | 07/11/2020 | 02:55:50 | -68.37, -45.39 | 133.77 | 07/11/2020 | 02:56:46 | -68.37, -45.37 | 133.77 | 1.32 | 56 |
| 10 | 07/11/2020 | 03:46:34 | 68.24, 122.08 | 46.11 | 07/11/2020 | 03:46:13 | 68.25, 122.13 | 46.12 | 2.67 | 21 |
| 11 | 07/11/2020 | 04:37:04 | -67.51, -69.70 | 134.64 | 07/11/2020 | 04:35:54 | -67.54, -71.06 | 134.57 | 58.18 | 70 |
| 12 | 07/13/2020 | 18:22:23 | 69.42, -98.37 | 47.71 | 07/13/2020 | 18:23:29 | 69.35, -95.88 | 47.58 | 97.82 | 66 |
| 13 | 07/13/2020 | 19:12:46 | -68.31, 70.44 | 133.44 | 07/13/2020 | 19:13:16 | -68.31, 70.44 | 133.44 | 0.17 | 30 |
| 14 | 07/13/2020 | 20:03:29 | 68.19,-122.09 | 46.44 | 07/13/2020 | 20:02:42 | 68.19,-122.07 | 46.45 | 0.97 | 47 |
| 15 | 07/16/2020 | 10:39:02 | 68.51, 18.63 | 47.20 | 07/16/2020 | 10:40:13 | 68.45, 18.86 | 47.12 | 11.34 | 71 |
| 16 | 07/16/2020 | 11:29:41 | -68.26,-173.73 | 133.06 | 07/16/2020 | 11:29:45 | -68.25,-173.75 | 133.07 | 1.77 | 4 |
| 17 | 07/16/2020 | 12:20:25 | 68.14, -6.26 | 46.82 | 07/16/2020 | 12:19:12 | 68.12, -6.26 | 46.81 | 1.79 | 73 |

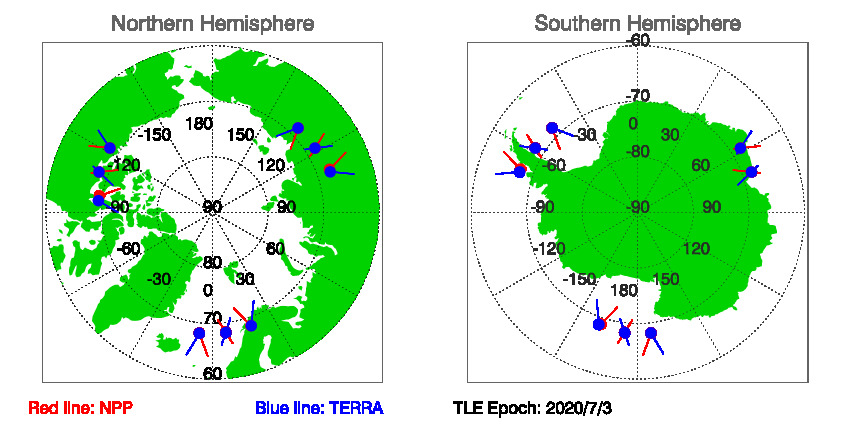

Figure of NPP and TERRA satellite orbits during SNOs since TLE Epoch: 7/3/2020
Download SNOs between NPP and TERRA since TLE EPOCH: 07/03/2020 in txt file.
Historical Predications of SNOs between NPP and TERRA
