Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NPP and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/5/2025
| Index | Date (NPP) | Time (NPP) | Lat,Lon (NPP) | SZA (NPP ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/05/2025 | 21:57:16 | -79.97, -7.82 | 114.39 | 05/05/2025 | 21:58:00 | -79.97, -7.81 | 114.41 | 0.18 | 44 |
| 2 | 05/05/2025 | 22:47:55 | 79.79, 161.27 | 65.27 | 05/05/2025 | 22:47:06 | 79.79, 161.30 | 65.28 | 0.74 | 49 |
| 3 | 05/08/2025 | 03:14:25 | 79.84, 94.20 | 64.75 | 05/08/2025 | 03:14:17 | 79.85, 94.07 | 64.78 | 2.74 | 8 |
| 4 | 05/10/2025 | 07:40:56 | 79.92, 26.79 | 64.32 | 05/10/2025 | 07:41:28 | 79.93, 26.68 | 64.33 | 2.40 | 32 |
| 5 | 05/10/2025 | 08:31:35 | -79.74,-164.13 | 116.03 | 05/10/2025 | 08:30:33 | -79.74,-164.17 | 116.00 | 0.79 | 62 |
| 6 | 05/12/2025 | 12:07:28 | 80.03, -40.96 | 63.98 | 05/12/2025 | 12:08:39 | 80.02, -40.87 | 63.93 | 1.77 | 71 |
| 7 | 05/12/2025 | 12:58:06 | -79.82, 128.48 | 116.43 | 05/12/2025 | 12:57:44 | -79.83, 128.35 | 116.40 | 2.80 | 22 |
| 8 | 05/14/2025 | 17:24:37 | -79.90, 61.04 | 116.80 | 05/14/2025 | 17:24:54 | -79.91, 60.99 | 116.80 | 0.99 | 17 |
| 9 | 05/14/2025 | 18:13:19 | 74.93,-106.43 | 56.41 | 05/14/2025 | 18:12:07 | 74.55,-108.85 | 56.23 | 82.30 | 72 |
| 10 | 05/16/2025 | 21:51:07 | -79.96, -6.15 | 117.20 | 05/16/2025 | 21:52:03 | -79.97, -6.25 | 117.21 | 1.86 | 56 |
| 11 | 05/16/2025 | 22:41:48 | 79.86, 162.22 | 62.60 | 05/16/2025 | 22:41:10 | 79.85, 162.37 | 62.60 | 3.01 | 38 |

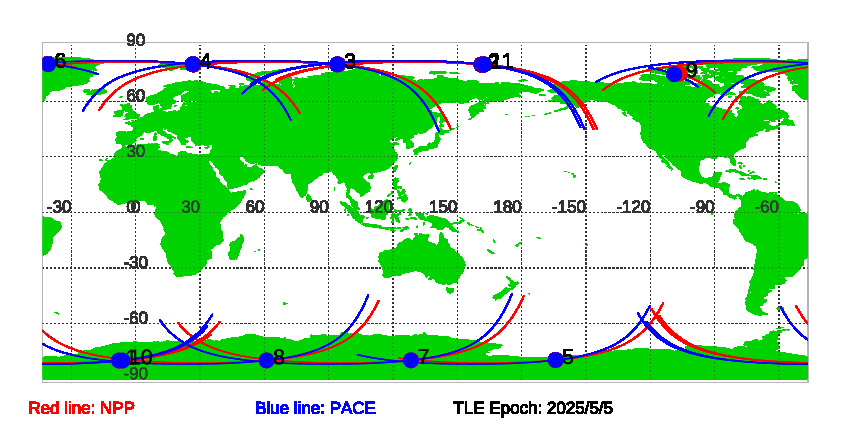

Figure of NPP and PACE satellite orbits during SNOs since TLE Epoch: 5/5/2025
Download SNOs between NPP and PACE since TLE EPOCH: 05/05/2025 in txt file.
