Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/14/2025
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 08/15/2025 | 17:05:00 | 80.16,-116.70 | 68.90 | 08/15/2025 | 17:06:13 | 80.19,-116.52 | 68.86 | 4.67 | 73 |
| 2 | 08/15/2025 | 17:55:32 | -79.77, 54.53 | 111.84 | 08/15/2025 | 17:55:11 | -79.78, 54.41 | 111.81 | 2.62 | 21 |
| 3 | 08/17/2025 | 22:22:02 | -79.90, -13.31 | 110.92 | 08/17/2025 | 22:22:17 | -79.90, -13.27 | 110.93 | 0.76 | 15 |
| 4 | 08/20/2025 | 02:48:31 | -80.00, -80.91 | 110.04 | 08/20/2025 | 02:49:22 | -80.00, -80.77 | 110.08 | 2.66 | 51 |
| 5 | 08/20/2025 | 03:39:08 | 79.77, 88.64 | 69.55 | 08/20/2025 | 03:38:27 | 79.77, 88.66 | 69.56 | 0.68 | 41 |
| 6 | 08/22/2025 | 08:05:36 | 79.85, 21.33 | 70.40 | 08/22/2025 | 08:05:31 | 79.85, 21.33 | 70.40 | 0.38 | 5 |
| 7 | 08/24/2025 | 12:32:04 | 79.92, -46.01 | 71.26 | 08/24/2025 | 12:32:35 | 79.93, -46.09 | 71.26 | 1.90 | 31 |
| 8 | 08/24/2025 | 13:22:44 | -79.76, 122.83 | 109.03 | 08/24/2025 | 13:21:40 | -79.75, 122.94 | 109.02 | 2.40 | 64 |
| 9 | 08/26/2025 | 16:58:33 | 80.03,-113.67 | 72.19 | 08/26/2025 | 16:59:39 | 80.03,-113.61 | 72.15 | 1.10 | 66 |

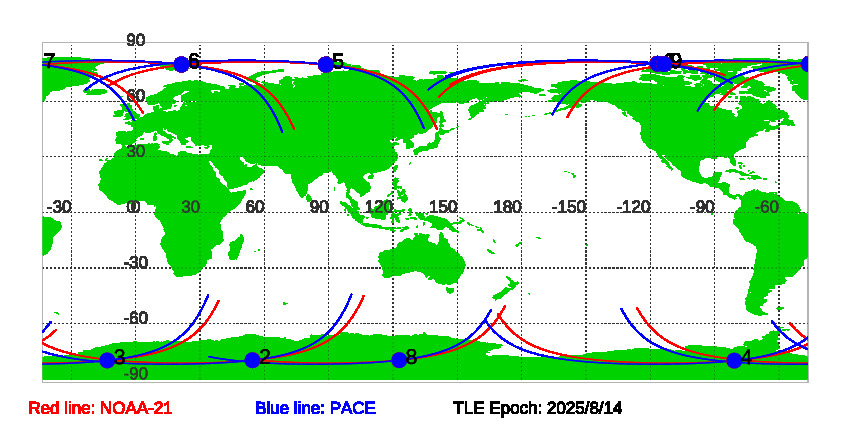

Figure of NOAA-21 and PACE satellite orbits during SNOs since TLE Epoch: 8/14/2025
Download SNOs between NOAA-21 and PACE since TLE EPOCH: 08/14/2025 in txt file.
Historial Predications of SNOs between NOAA-21 and PACE
