Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/26/2024
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 09/28/2024 | 03:00:58 | -79.80, -82.16 | 96.27 | 09/28/2024 | 03:00:51 | -79.80, -82.24 | 96.26 | 1.48 | 7 |
| 2 | 09/30/2024 | 06:36:47 | 79.90, 42.96 | 84.72 | 09/30/2024 | 06:37:04 | 79.89, 43.00 | 84.71 | 0.89 | 17 |
| 3 | 10/02/2024 | 10:12:32 | -79.92, 168.78 | 94.43 | 10/02/2024 | 10:13:14 | -79.93, 168.71 | 94.43 | 1.60 | 42 |
| 4 | 10/02/2024 | 11:03:12 | 79.75, -22.27 | 85.29 | 10/02/2024 | 11:02:18 | 79.75, -22.25 | 85.31 | 0.38 | 54 |
| 5 | 10/04/2024 | 13:48:20 | 80.00, -65.99 | 86.54 | 10/04/2024 | 13:49:24 | 80.00, -65.87 | 86.49 | 2.55 | 64 |
| 6 | 10/04/2024 | 14:38:57 | -79.78, 103.50 | 93.85 | 10/04/2024 | 14:38:27 | -79.79, 103.45 | 93.83 | 1.08 | 30 |
| 7 | 10/06/2024 | 18:14:43 | 79.82,-130.75 | 87.02 | 10/06/2024 | 18:14:35 | 79.83,-130.87 | 87.04 | 2.62 | 8 |

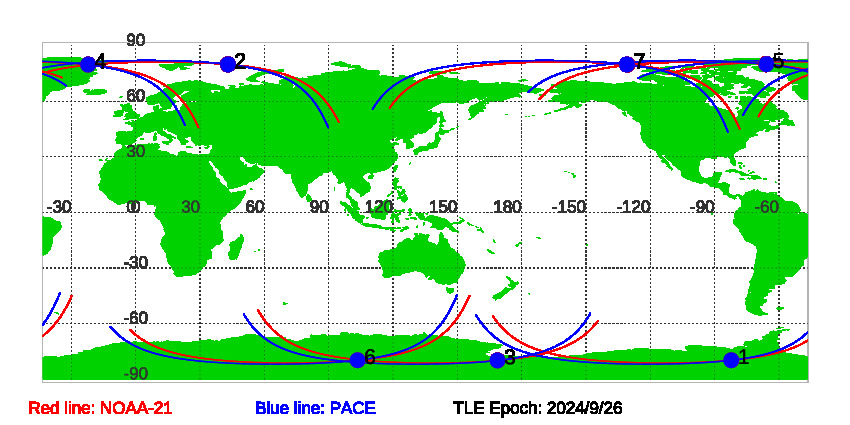

Figure of NOAA-21 and PACE satellite orbits during SNOs since TLE Epoch: 9/26/2024
Download SNOs between NOAA-21 and PACE since TLE EPOCH: 09/26/2024 in txt file.
Historial Predications of SNOs between NOAA-21 and PACE
