Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and PACE Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/6/2024
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (PACE) | Time (PACE) | Lat,Lon (PACE) | SZA (PACE ) | Distance(km) | Time Diff (sec) |
| 1 | 05/07/2024 | 17:22:19 | 79.82,-118.01 | 64.81 | 05/07/2024 | 17:23:15 | 79.81,-117.85 | 64.76 | 3.16 | 56 |
| 2 | 05/07/2024 | 18:12:56 | -79.58, 51.44 | 115.63 | 05/07/2024 | 18:12:18 | -79.57, 51.56 | 115.63 | 2.41 | 38 |
| 3 | 05/09/2024 | 21:48:40 | 79.72, 176.30 | 64.05 | 05/09/2024 | 21:49:32 | 79.73, 176.19 | 64.04 | 2.18 | 52 |
| 4 | 05/09/2024 | 22:39:18 | -79.51, -14.56 | 116.33 | 05/09/2024 | 22:38:36 | -79.52, -14.67 | 116.29 | 2.52 | 42 |
| 5 | 05/12/2024 | 02:15:06 | 79.78, 109.14 | 63.60 | 05/12/2024 | 02:15:52 | 79.77, 109.28 | 63.56 | 3.00 | 46 |
| 6 | 05/12/2024 | 03:05:44 | -79.57, -81.68 | 116.78 | 05/12/2024 | 03:04:56 | -79.56, -81.54 | 116.78 | 2.98 | 48 |
| 7 | 05/14/2024 | 06:41:28 | 79.72, 43.10 | 62.97 | 05/14/2024 | 06:42:09 | 79.72, 43.06 | 62.95 | 0.77 | 41 |
| 8 | 05/14/2024 | 07:32:06 | -79.51,-147.75 | 117.42 | 05/14/2024 | 07:31:13 | -79.51,-147.77 | 117.39 | 0.39 | 53 |
| 9 | 05/16/2024 | 11:07:52 | 79.73, -23.56 | 62.47 | 05/16/2024 | 11:08:27 | 79.73, -23.58 | 62.46 | 0.47 | 35 |
| 10 | 05/16/2024 | 11:58:30 | -79.52, 145.61 | 117.91 | 05/16/2024 | 11:57:31 | -79.52, 145.62 | 117.88 | 0.27 | 59 |
| 11 | 05/18/2024 | 15:34:14 | 79.68, -89.68 | 61.90 | 05/18/2024 | 15:34:43 | 79.68, -89.80 | 61.91 | 2.61 | 29 |

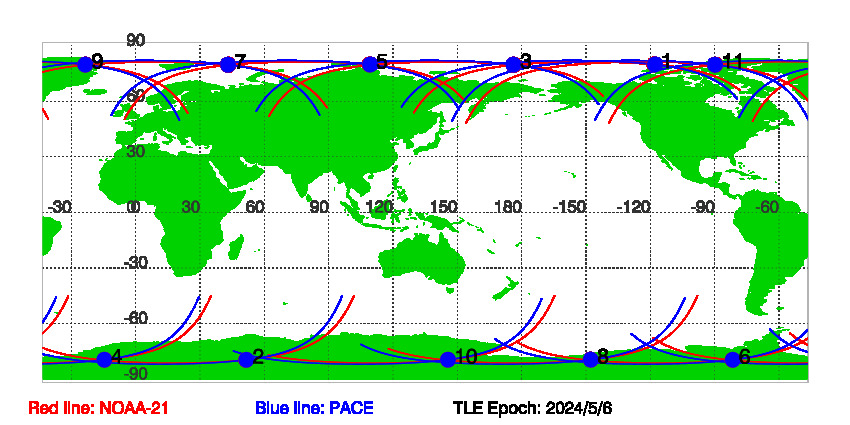

Figure of NOAA-21 and PACE satellite orbits during SNOs since TLE Epoch: 5/6/2024
Download SNOs between NOAA-21 and PACE since TLE EPOCH: 05/06/2024 in txt file.
Historial Predications of SNOs between NOAA-21 and PACE
