Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and METOP-C Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/16/2025
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (METOP-C) | Time (METOP-C) | Lat,Lon (METOP-C) | SZA (METOP-C ) | Distance(km) | Time Diff (sec) |
| 1 | 05/29/2025 | 21:28:14 | 73.32,-151.44 | 51.70 | 05/29/2025 | 21:29:22 | 73.27,-149.15 | 51.53 | 73.43 | 68 |
| 2 | 05/29/2025 | 22:18:56 | -73.24, 16.07 | 128.40 | 05/29/2025 | 22:20:05 | -73.21, 18.03 | 128.54 | 63.02 | 69 |
| 3 | 05/29/2025 | 23:09:38 | 73.02,-176.16 | 51.36 | 05/29/2025 | 23:10:49 | 73.00,-175.08 | 51.27 | 35.09 | 71 |
| 4 | 05/30/2025 | 00:00:20 | -72.94, -8.65 | 128.74 | 05/30/2025 | 00:01:33 | -72.88, -8.00 | 128.84 | 22.22 | 73 |
| 5 | 05/30/2025 | 00:51:02 | 72.72, 159.10 | 51.02 | 05/30/2025 | 00:52:16 | 72.73, 159.01 | 51.02 | 3.27 | 74 |
| 6 | 05/30/2025 | 01:41:45 | -72.74, -33.61 | 128.97 | 05/30/2025 | 01:42:56 | -72.76, -33.59 | 128.96 | 3.05 | 71 |
| 7 | 05/30/2025 | 02:32:31 | 72.73, 133.73 | 51.01 | 05/30/2025 | 02:33:37 | 72.71, 133.63 | 50.99 | 3.76 | 66 |

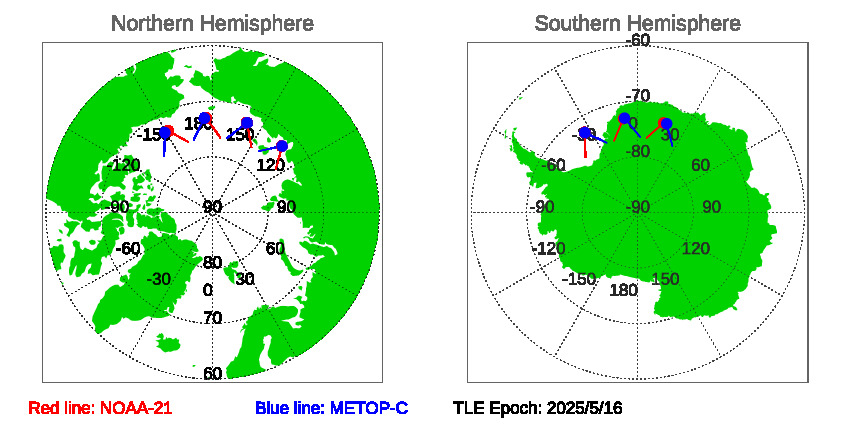

Figure of NOAA-21 and METOP-C satellite orbits during SNOs since TLE Epoch: 5/16/2025
Download SNOs between NOAA-21 and METOP-C since TLE EPOCH: 05/16/2025 in txt file.
Historial Predications of SNOs between NOAA-21 and METOP-C
