Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-21 and LANDSAT-9 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/30/2024
| Index | Date (NOAA-21) | Time (NOAA-21) | Lat,Lon (NOAA-21) | SZA (NOAA-21 ) | Date (LANDSAT-9) | Time (LANDSAT-9) | Lat,Lon (LANDSAT-9) | SZA (LANDSAT-9 ) | Distance(km) | Time Diff (sec) |
| 1 | 12/02/2024 | 13:39:25 | 70.22, -28.45 | 92.19 | 12/02/2024 | 13:40:19 | 70.20, -28.45 | 92.17 | 1.99 | 54 |
| 2 | 12/02/2024 | 14:30:07 | -70.11, 139.04 | 87.92 | 12/02/2024 | 14:29:49 | -70.09, 139.02 | 87.94 | 2.34 | 18 |
| 3 | 12/02/2024 | 15:20:36 | 69.22, -52.35 | 91.19 | 12/02/2024 | 15:19:29 | 69.27, -54.46 | 91.25 | 83.61 | 67 |
| 4 | 12/05/2024 | 05:56:16 | 70.16, 87.43 | 92.49 | 12/05/2024 | 05:56:45 | 70.16, 87.38 | 92.49 | 1.87 | 29 |
| 5 | 12/05/2024 | 06:46:58 | -70.04,-105.08 | 87.63 | 12/05/2024 | 06:46:15 | -70.05,-105.15 | 87.62 | 2.48 | 43 |
| 6 | 12/07/2024 | 21:22:29 | -70.46, 35.42 | 86.91 | 12/07/2024 | 21:23:41 | -70.38, 35.95 | 86.99 | 21.68 | 72 |
| 7 | 12/07/2024 | 22:13:08 | 70.11,-156.73 | 92.75 | 12/07/2024 | 22:13:11 | 70.11,-156.80 | 92.74 | 2.77 | 3 |
| 8 | 12/07/2024 | 23:03:51 | -70.05, 10.68 | 87.32 | 12/07/2024 | 23:02:40 | -70.05, 10.76 | 87.32 | 2.79 | 71 |
| 9 | 12/10/2024 | 13:39:17 | -70.22, 151.57 | 86.90 | 12/10/2024 | 13:40:08 | -70.21, 151.61 | 86.91 | 1.80 | 51 |
| 10 | 12/10/2024 | 14:30:00 | 70.09, -40.92 | 92.98 | 12/10/2024 | 14:29:35 | 70.10, -40.91 | 92.98 | 0.85 | 25 |
| 11 | 12/10/2024 | 15:20:26 | -69.12, 127.81 | 88.01 | 12/10/2024 | 15:19:19 | -69.22, 125.52 | 87.89 | 91.03 | 67 |
| 12 | 12/13/2024 | 05:05:42 | 71.12, 98.56 | 94.23 | 12/13/2024 | 05:06:48 | 71.01, 101.08 | 94.09 | 91.74 | 66 |
| 13 | 12/13/2024 | 05:56:08 | -70.16, -92.56 | 86.76 | 12/13/2024 | 05:56:32 | -70.14, -92.59 | 86.78 | 2.68 | 24 |
| 14 | 12/13/2024 | 06:46:51 | 70.03, 74.95 | 93.12 | 12/13/2024 | 06:45:59 | 70.02, 74.89 | 93.11 | 2.67 | 52 |

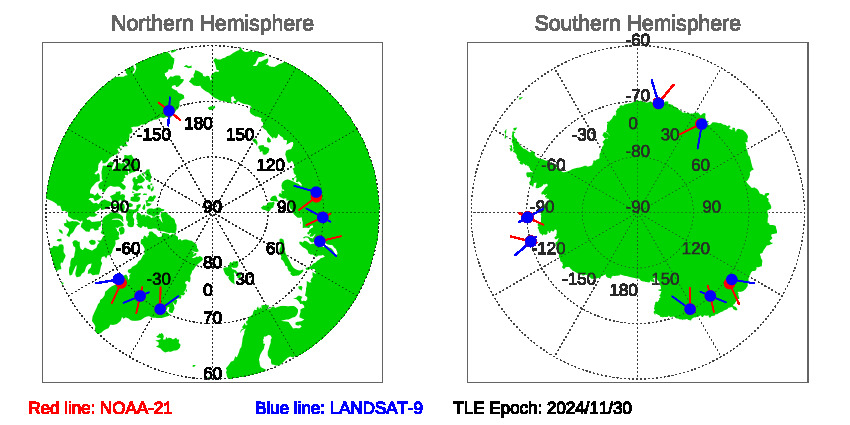

Figure of NOAA-21 and LANDSAT-9 satellite orbits during SNOs since TLE Epoch: 11/30/2024
Download SNOs between NOAA-21 and LANDSAT-9 since TLE EPOCH: 11/30/2024 in txt file.
Historial Predications of SNOs between NOAA-21 and LANDSAT-9
